Butt-weld flange PN 40 - Type 11B - P245GH steel 21.3

Name: Butt-weld flange PN 40 - Type 11B - P245GH steel 21.3
Brand: THERSANE
SKU: BR11BCAPN400015
Price: 4.39 EUR
Availability: InStock

Brides acier

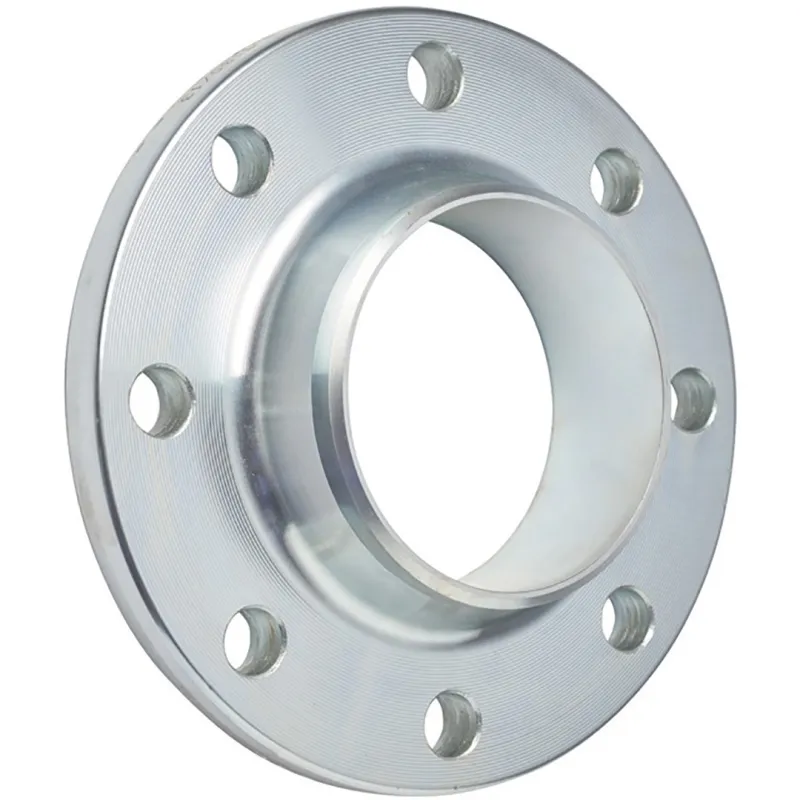

Brides à collerette à souder bout à bout PN 40 - type 11B - P245GH

Photos non contractuelles

Butt-weld flanges made of P245GH steel, straight bore – raised face, machined

PN 40 - Type 11B

Carbon steel flanges are manufactured in accordance with standard NF EN 1092-1, which took effect on August 20, 2002, and was amended to be simplified in November 2007.

Material: The flanges are made of P245GH steel
Temperature: The flanges must not be used outside the temperature range of -10°C to +100°C
Application: The flanges are particularly recommended for the transport of fluids or gases.

Plus de détails

21.3

Are you an individual?

Are you a professional?

€4.39

4.39 € tax excl.

Unité de vente : Pièce

Reference : BR11BCAPN400015

diamètre tube: 21.3

Quantity

Consulter les produits disponibles sous forme de liste

Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Your PRO THERSANE access

Ranges / Conditions / Benefits

View benefits

FREE SHIPPING

From €150 incl. VAT

For a cart not exceeding 30Kg

NEED HELP?

(+33) 04 28 54 00 69

Complément d'information Butt-weld flange PN 40 - Type 11B - P245GH steel

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

PN 40 - Type 11B

DN	D	K	L	No. of Holes	TUBE A1	C2	H2	H3	N1	R	S	d1	f1	Weight kg
15	95	65	14	4	21.3	16	38	6	32	4	2.0	45	2	1
20	105	75	14	4	26.9	18	40	6	40	4	2.3	58	2	1
25	115	85	14	4	33.7	18	40	6	46	4	2.6	68	2	1
32	140	100	18	4	42.4	18	42	6	56	6	2.6	78	2	2
40	150	110	18	4	48.3	18	45	7	64	6	2.6	88	2	2
50	165	125	18	4	60.3	20	48	8	75	6	2.9	102	2	3
65	185	145	18	8	76.1	22	52	10	90	6	2.9	122	2	4
80	200	160	18	8	88.9	24	58	12	105	8	3.2	138	2	5
100	235	190	22	8	108.0	24	65	12	134	8	3.6	162	2	6.5
100	235	190	22	8	114.3	24	65	12	134	8	3.6	162	2	6.5
125	270	220	26	8	133.0	26	68	12	162	8	4.0	188	2	9
125	270	220	26	8	139.7	26	68	12	162	8	4.0	188	2	9
150	300	250	26	8	159.0	28	75	12	192	10	4.5	218	2	11.5
150	300	250	26	8	168.3	28	75	12	192	10	4.5	218	2	11.5
200	375	320	30	12	219.1	34	88	16	244	10	6.3	285	2	21
250	450	385	33	12	273.0	38	105	18	306	12	7.1	345	2	34
300	515	450	33	16	323.9	42	115	18	362	12	8.0	410	2	47.5
350	580	510	36	16	355.6	46	125	20	408	12	8.8	465	2	69
400	660	585	39	16	406.4	50	135	20	462	12	11.0	535	2	98

Caractéristiques techniques Butt-weld flange PN 40 - Type 11B - P245GH steel

Data sheet

Reference: BR11BCAPN400015
Type: À Collerette type 11
Matière: Acier P245GH
Diamètre: En fonction du modèle choisi
Pression nominale: PN 40
Température minimum: -10°C
Température maximum: 100°C
Normes et certifications: EN 1092-1
Normalisation: Directive 97/23/CE
Unité de vente: Pièce
Garantie fabricant: 1 an

Accessoires et équipements (vendus séparément)

Quick view

Caractéristiques liées à la version du produit Butt-weld flange PN 40 - Type 11B - P245GH steel

Voici la liste des références et poids correspondants aux options séléctionnées.

BR11BCAPN400015 - Butt-weld flange PN 40 - Type 11B - P245GH steel - 21.3

diamètre tube	21.3
Packed weight	1,092kg

4.39 € tax excl.

Référence - Désignation	diamètre tube	Packed weight	Prix
BR11BCAPN400015 - Butt-weld flange PN 40 - Type 11B - P245GH steel - 21.3	21.3	1,092kg	4.39 € tax excl.
BR11BCAPN400020 - Butt-weld flange PN 40 - Type 11B - P245GH steel - 26.9	26.9	1,092kg	5.95 € tax excl.
BR11BCAPN400025 - Butt-weld flange PN 40 - Type 11B - P245GH steel - 33.7	33.7	1,092kg	6.53 € tax excl.
BR11BCAPN400032 - Butt-weld flange PN 40 - Type 11B - P245GH steel - 42.4	42.4	2,184kg	9.23 € tax excl.
BR11BCAPN400040 - Butt-weld flange PN 40 - Type 11B - P245GH steel - 48.3	48.3	2,184kg	10.3 € tax excl.
BR11BCAPN400050 - Butt-weld flange PN 40 - Type 11B - P245GH steel - 60.3	60.3	3,276kg	12.19 € tax excl.
BR11BCAPN400065 - Butt-weld flange PN 40 - Type 11B - P245GH steel - 76.1	76.1	4,2kg	35.33 € tax excl.
BR11BCAPN400080 - Butt-weld flange PN 40 - Type 11B - P245GH steel - 88.9	88.9	5,25kg	40.56 € tax excl.
BR11BCAPN400108 - Butt-weld flange PN 40 - Type 11B - P245GH steel - 108.0	108.0	6,825kg	34.91 € tax excl.
BR11BCAPN400100 - Butt-weld flange PN 40 - Type 11B - P245GH steel - 114.3	114.3	6,825kg	60.13 € tax excl.
BR11BCAPN400125 - Butt-weld flange PN 40 - Type 11B - P245GH steel - 139.7	139.7	9,45kg	88.3 € tax excl.
BR11BCAPN400150 - Butt-weld flange PN 40 - Type 11B - P245GH steel - 168.3	168.3	12,075kg	115.77 € tax excl.
BR11BCAPN400200 - Butt-weld flange PN 40 - Type 11B - P245GH steel - 219.1	219.1	22,932kg	272.16 € tax excl.
