Short-body anti-pollution check valve, brass, CW617N, female-to-male, PN10, with 1/8" brass plugs

Clapet anti pollution
Clapet de non-retour antipollution modèle court laiton titré CW617N femelle - mâle bouchons laiton 1/8"
search
  • Clapet de non-retour antipollution modèle court laiton titré CW617N femelle - mâle bouchons laiton 1/8"
  • NOMENCLATURE 342
  • DIMENSIONS ( en mm ) 342
  • FONCTIONNEMENT 342
  • DIAGRAMME PERTES DE CHARGES 342

Photos non contractuelles

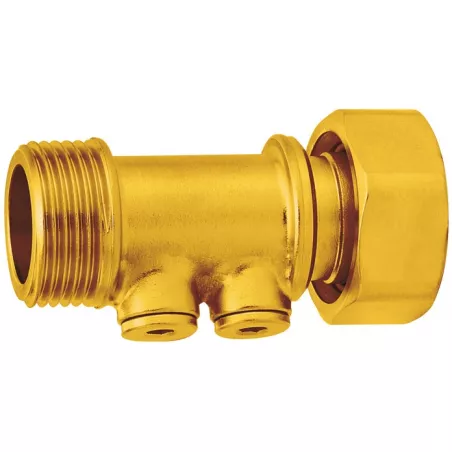

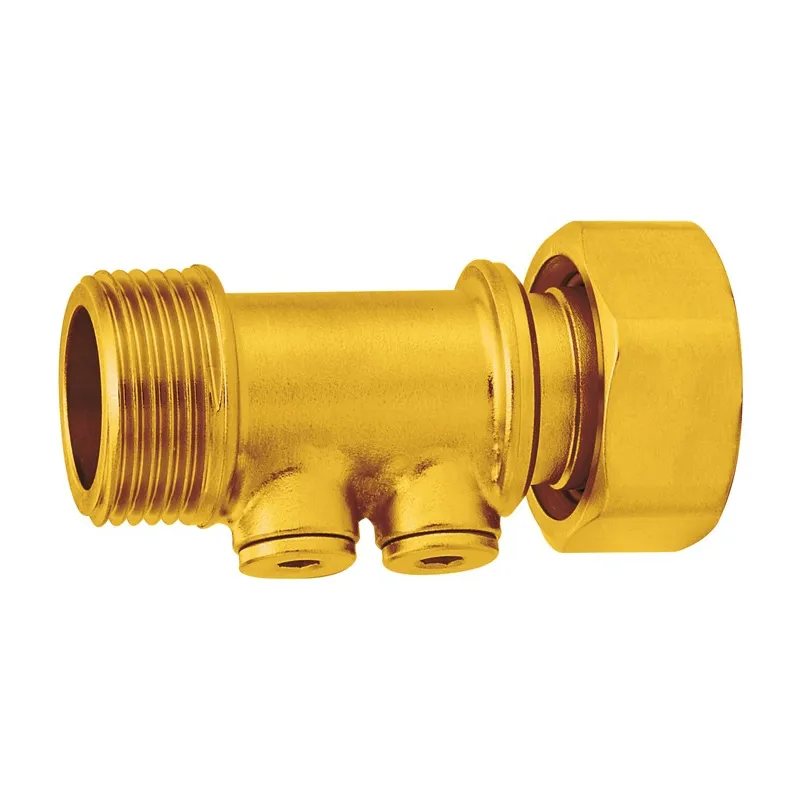

CW617N-grade brass anti-pollution check valve, female-to-male straight connection, short model, with 2 brass 1/8" plugs

Application:

  • Protection of drinking water systems
  • Minimum permissible temperature Ts: +5°C
  • Maximum permissible temperature Ts: +90°C
  • Maximum allowable pressure Ps: 10 bar

Available in:

  • Female BSP cylindrical captive nut – male BSP cylindrical thread with 2 brass plugs 1/8“ - DN 3/4“

Follow the flow direction indicated on the body by an arrow

Plus de détails
Normes et certifications : Certification ACSNormes et certifications : NFNormes et certifications : Certification IQNETType de raccordement : Á visser BSP (pas du gaz)Fluide admissible : Eau sanitaire et potable1
Are you an individual?
Are you a professional?

Log in to find out your discount.

€8.82 Tax included

7.35 € tax excl.

Unité de vente : Pièce
34200L000BMF020
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information Short-body anti-pollution check valve, brass, CW617N, female-to-male, PN10, with 1/8" brass plugs

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Features:

  • Follow the direction of flow (indicated on the body by an arrow)
  • Lock nut / Male BSP
  • Controllable
  • Low pressure drop thanks to the cylindrical body design
  • Stainless steel spring
  • Valve sealing via NBR seal
  • CW617N-grade brass body for improved mechanical strength
  • 1/8" BSP brass plugs
  • 10-year manufacturer’s warranty (the manufacturer’s warranty does not cover installation defects or wear and tear)
  • Opening pressure: 5 mbar

Construction:

  • CW617N-grade brass body
  • Shutter: POM
  • Seal: NBR
  • Rotating nut
  • Stainless steel spring
  • Two 1/8" plugs
  • Dimensions: DN 3/4"
  • Connection: Captive nut / Male
  • Material: Brass body

Standards:

  • Manufactured in accordance with ISO 9001:2008 and ISO 14001:2004
  • DIRECTIVE 2014/68/EU: Products excluded from the directive (Article 4, § 3)
  • Sanitary Conformity Certificate A.C.S. No. 14 ACC LY 328
  • Designed in accordance with EN 13959
  • Check valves compliant with NF045 Technical Documents No. 1 and 6
  • Cylindrical BSP female thread and cylindrical BSP male thread in accordance with ISO 228-11

Locknut 3/4"
Connector 3/4"M
PS 10
Spacing 78

Caractéristiques techniques Short-body anti-pollution check valve, brass, CW617N, female-to-male, PN10, with 1/8" brass plugs

Data sheet

Reference
34200L000BMF020
Type de clapet / filtre
Antipollution SCUDO
Corps
Laiton titré CW617N
Obturateur
POM
Joint
NBR
Entraxe
En fonction du modèle choisi
Type de raccordement
Á visser BSP (pas du gaz)
Raccordement
MF (mâle - femelle)
Diamètre
3/4"
Pression de service
10B
Température minimum
5°C
Température maximum
90°C
Fluide admissible
Eau sanitaire et potable
Normes et certifications
Certification ACS Certification IQNET NF
Normalisation
Conception selon EN 13959 Directive 2014/68/UE : produits exclus (article 1, § 2b)
Équipements
Bouchon
Unité de vente
Pièce
Garantie fabricant
1 an

Specific References

ean13
3598781140406

Download documentation

FT 342

Fiche technique Clapet de non-retour antipollution modèle court laiton titré CW617N 342
