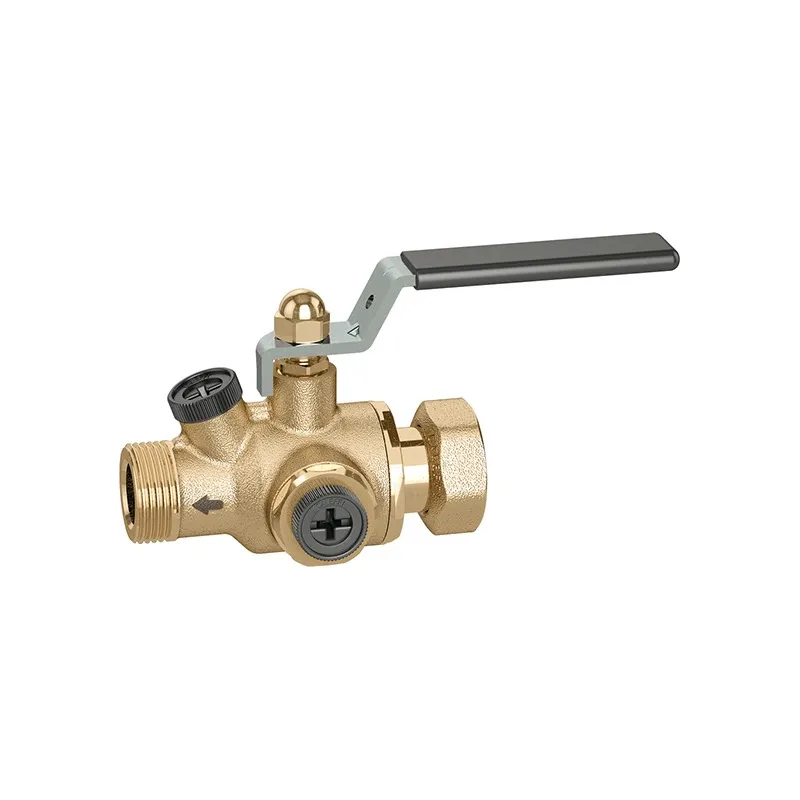

Ballstop ball valve with removable check valve

Function:

Ball valves with integrated check valves are hydraulic protection devices that prevent contaminated water from flowing back into the municipal water supply. Thanks to its special design, this valve allows
for maintenance and replacement of the check valve.

Applications:

  • Heating, drinking water, hot water, cold water
  • Minimum permissible temperature Ts: +5°C
  • Maximum permissible temperature Ts: +90°C
  • Maximum allowable pressure Ps: 16 bar

Available in: 1/2" MM / 3/4" MM and 3/4" FM

Follow the flow direction indicated on the body by an arrow

Plus de détails
Normes et certifications : Certification ACSNormes et certifications : WRASNormes et certifications : Certification IQNETType de raccordement : Á visser BSP (pas du gaz)Fluide admissible : Eau sanitaire et potable1
3/4" m - 3/4" f
Are you an individual?
Are you a professional?

Log in to find out your discount.

€84.36 Tax included

70.3 € tax excl.

Unité de vente : Pièce
VBALLSTOP00MF20
Diamètre: 3/4" M - 3/4" F
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information Ballstop ball valve with removable check valve

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Functional specifications:

  • Compatible fluid: drinking water
  • Maximum operating pressure: 10 bar
  • Minimum opening pressure of the check valve (Δp): 0.5 kPa
  • Maximum operating temperature: 65°C
  • Certification according to standard: EN 13959/EN 13828 BRL-K629
  • Connections: 1/2" - 3/4" M (ISO 228-1)
    (VSCE20MF) 3/4" M (ISO 228-1) x 3/4" F with swivel nut
  • Test port connections: 1/4" F (ISO 228-1)

Construction:

  • Body: "Low Lead" dezincification-resistant alloy
  • Check valve: POM
  • Check valve spring: stainless steel
  • Check valve seal: EPDM
  • Ball: "Low Lead" dezincification-resistant alloy
  • Ball drive shaft: "Low Lead" dezincification-resistant alloy
  • Ball seat: PTFE
  • Control handle: Special galvanized steel
  • Control shaft seals: EPDM
  • Control port cap: PA66G30

Caractéristiques techniques Ballstop ball valve with removable check valve

Data sheet

Reference
VBALLSTOP00MF20
Type de vanne
RBS (robinet à boisseau sphérique)
Passage
Réduit
Corps
Laiton titré CW617N
Obturateur
Bille pleine Sphère laiton titré CW614N chromée
Siège
PTFE
Axe
Joint d'axe PTFE
Presse-étoupe
PTFE
Entraxe
En fonction du modèle choisi
Type de raccordement
Á visser BSP (pas du gaz)
Raccordement
FF (femelle - femelle)
Diamètre
En fonction du modèle choisi
Pression de service
16B
Température minimum
5°C
Température maximum
90°C
Fluide admissible
Eau Eau chauffage Eau glacée et climatisation Eau sanitaire et potable Fluides courants compatibles
Normes et certifications
Certification ACS Certification IQNET WRAS
Normalisation
Directive 2014/68/UE : produits exclus (article 1, § 2b)
Équipements
Clapet
Unité de vente
Pièce
Garantie fabricant
1 an

Download documentation

FT VSCE15M

Fiche technique vanne à sphère BALLSTOP

Download (929.8KB)

Caractéristiques liées à la version du produit Ballstop ball valve with removable check valve

Voici la liste des références et poids correspondants aux options séléctionnées.
VBALLSTOP00MM15 - Ballstop ball valve with removable check valve - 1/2"M - 1/2"M
Diamètre 1/2"M - 1/2"M
Packed weight --
67.67 € tax excl.
Consulter
VBALLSTOP00MM20 - Ballstop ball valve with removable check valve - 3/4"M - 3/4"M
Diamètre 3/4"M - 3/4"M
Packed weight 0,45kg
67.67 € tax excl.
Consulter
VBALLSTOP00MF20 - Ballstop ball valve with removable check valve - 3/4" M - 3/4" F
Diamètre 3/4" M - 3/4" F
Packed weight 0,5kg
70.3 € tax excl.
Consulter
Référence - Désignation Diamètre Packed weight Prix
VBALLSTOP00MM15 - Ballstop ball valve with removable check valve - 1/2"M - 1/2"M 1/2"M - 1/2"M -- 67.67 € tax excl.
VBALLSTOP00MM20 - Ballstop ball valve with removable check valve - 3/4"M - 3/4"M 3/4"M - 3/4"M 0,45kg 67.67 € tax excl.
VBALLSTOP00MF20 - Ballstop ball valve with removable check valve - 3/4" M - 3/4" F 3/4" M - 3/4" F 0,5kg 70.3 € tax excl.
