Malleable iron fitting galvanized elbow male thread 3/8" (12/17) galvanisée / galva

Black or galvanized cast iron fitting

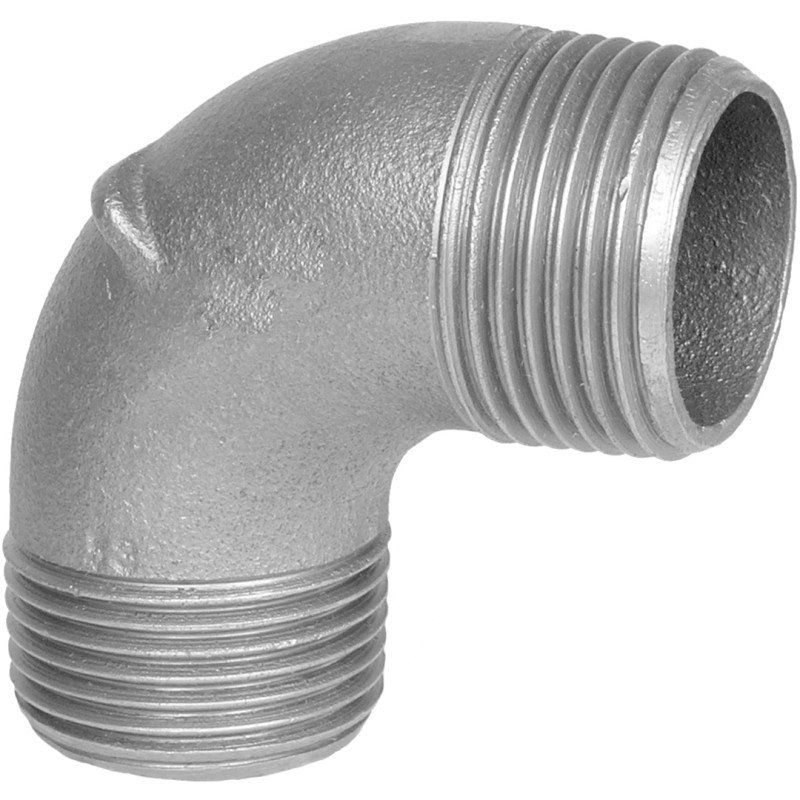

Raccord fonte galvanisée malléable fileté Coude mâle
search
  • Raccord fonte galvanisée malléable fileté Coude mâle

Photo non contractuelle

Malleableiron fitting 90° elbow galvanized male for carbon steel pipe

Application:

These fittings are to be used for conveying fluids or gases in steel pipes.

Coating available in black or hot-dip galvanized finish

Not authorized for natural gas and butane/propane applications

Plus de détails
Normes et certifications : ISO 9001Type de raccordement : Á visser BSP (pas du gaz)1
3/8" (12/17) galvanisée / galva
Are you an individual?
Are you a professional?

Log in to find out your discount.

€6.20 Tax included

5.17 € tax excl.

Unité de vente : Pièce
00094G000000010
Surface Finish: Galvanisée / Galva
Diameter (in inches): 3/8" (12/17)
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information Malleable iron fitting galvanized elbow male thread

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Technical specifications :

Material: Threaded fittings are made from malleable iron grades W400-05 or W350-04

Maximum temperature: Threaded fittings from 1/8" to 1" 'inclusive have a working pressure of 25 bar at an operating temperature of -20°C to +120°C. For threaded connections from 1"1/4 to 4" inclusive, the working pressure is 16 bar at an operating temperature of -20°C to +120°C.

Threading: These fittings are internally threaded to the gas pitch, with a thread seal. The internal thread is parallel (Rp) and the external thread tapered (R) in accordance with ISO 7-1.

Coating :

Hot-dip galvanized (zinc coating applied by hot dipping) (If fittings are supplied in other ferrous materials, other zinc-based coatings may be used by agreement with the purchaser)

Standards :

All threaded malleable iron fittings comply with NF EN 10242 and are ISO 9001 quality-certified.

They also comply with the requirements of the French ministerial decree of May 29, 1997 on A.C.S. According to European and international standards, malleable cast-iron fittings are free of polycyclic aromatic hydrocarbons.

Caractéristiques techniques Malleable iron fitting galvanized elbow male thread

Data sheet

Reference
00094G000000010
Finition corps
Galvanisée / Galva
Matière
Fonte malléable W400-05 ou W350-04
Forme
Coude 90°
Rayon
Petit rayon
Type de raccordement
Á visser BSP (pas du gaz)
Raccordement
MM (mâle - mâle)
Diamètre
En fonction du modèle choisi
Pression de service
De 1"1/4 à 4" : 16B De 1/8" à 1" : 25B
Température minimum
-20°C
Température maximum
120°C
Fluide admissible
Air comprimé Eau Eau chauffage Eau glacée et climatisation Eau glycolée Fluides courants compatibles
Normes et certifications
Filetage ISO 7-1 ISO 9001 NF EN 10242
Unité de vente
Pièce
Garantie fabricant
1 an
Figure
94

Caractéristiques liées à la version du produit Malleable iron fitting galvanized elbow male thread

Voici la liste des références et poids correspondants aux options séléctionnées.
00094G000000015 - Malleable iron fitting galvanized elbow male thread - Galvanisée / Galva - 1/2" (15/21)
Surface Finish Galvanisée / Galva
Diameter (in inches) 1/2" (15/21)
Packed weight 0,09975kg
5.46 € tax excl.
Consulter
00094G000000040 - Malleable iron fitting galvanized elbow male thread - Galvanisée / Galva - 1"1/2 (40/49)
Surface Finish Galvanisée / Galva
Diameter (in inches) 1"1/2 (40/49)
Packed weight 0,45045kg
24.31 € tax excl.
Consulter
00094G000000010 - Malleable iron fitting galvanized elbow male thread - Galvanisée / Galva - 3/8" (12/17)
Surface Finish Galvanisée / Galva
Diameter (in inches) 3/8" (12/17)
Packed weight 0,05145kg
5.17 € tax excl.
Consulter
00094G000000032 - Malleable iron fitting galvanized elbow male thread - Galvanisée / Galva - 1"1/4 (33/42)
Surface Finish Galvanisée / Galva
Diameter (in inches) 1"1/4 (33/42)
Packed weight 0,30975kg
13.29 € tax excl.
Consulter
00094G000000025 - Malleable iron fitting galvanized elbow male thread - Galvanisée / Galva - 1" (26/34)
Surface Finish Galvanisée / Galva
Diameter (in inches) 1" (26/34)
Packed weight 0,19425kg
9.26 € tax excl.
Consulter
00094G000000020 - Malleable iron fitting galvanized elbow male thread - Galvanisée / Galva - 3/4" (20/27)
Surface Finish Galvanisée / Galva
Diameter (in inches) 3/4" (20/27)
Packed weight 0,1365kg
6.08 € tax excl.
Consulter
00094G000000050 - Malleable iron fitting galvanized elbow male thread - Galvanisée / Galva - 2" (50/60)
Surface Finish Galvanisée / Galva
Diameter (in inches) 2" (50/60)
Packed weight 0,5922kg
25.09 € tax excl.
Consulter
Référence - Désignation Surface Finish Diameter (in inches) Packed weight Prix
00094G000000015 - Malleable iron fitting galvanized elbow male thread - Galvanisée / Galva - 1/2" (15/21) Galvanisée / Galva 1/2" (15/21) 0,09975kg 5.46 € tax excl.
00094G000000040 - Malleable iron fitting galvanized elbow male thread - Galvanisée / Galva - 1"1/2 (40/49) Galvanisée / Galva 1"1/2 (40/49) 0,45045kg 24.31 € tax excl.
00094G000000010 - Malleable iron fitting galvanized elbow male thread - Galvanisée / Galva - 3/8" (12/17) Galvanisée / Galva 3/8" (12/17) 0,05145kg 5.17 € tax excl.
00094G000000032 - Malleable iron fitting galvanized elbow male thread - Galvanisée / Galva - 1"1/4 (33/42) Galvanisée / Galva 1"1/4 (33/42) 0,30975kg 13.29 € tax excl.
00094G000000025 - Malleable iron fitting galvanized elbow male thread - Galvanisée / Galva - 1" (26/34) Galvanisée / Galva 1" (26/34) 0,19425kg 9.26 € tax excl.
00094G000000020 - Malleable iron fitting galvanized elbow male thread - Galvanisée / Galva - 3/4" (20/27) Galvanisée / Galva 3/4" (20/27) 0,1365kg 6.08 € tax excl.
00094G000000050 - Malleable iron fitting galvanized elbow male thread - Galvanisée / Galva - 2" (50/60) Galvanisée / Galva 2" (50/60) 0,5922kg 25.09 € tax excl.
