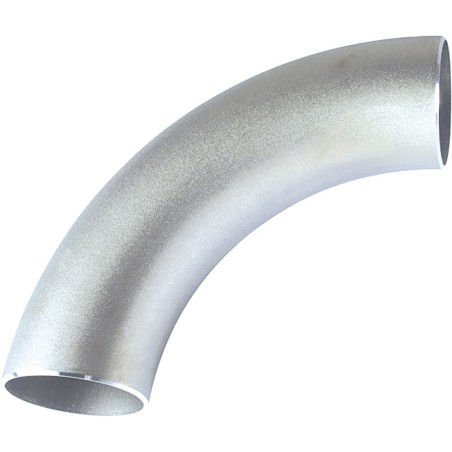

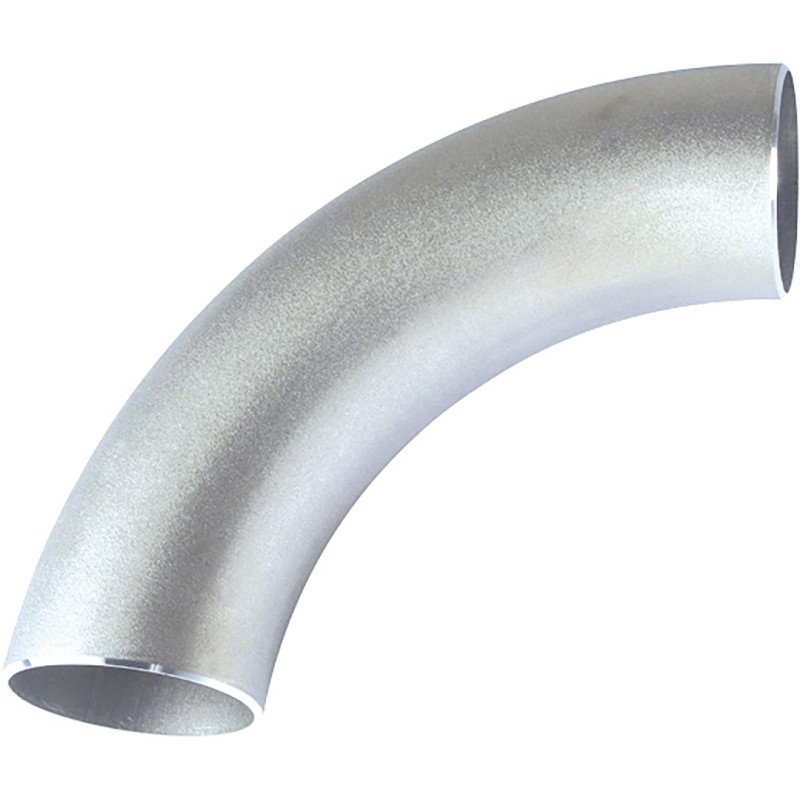

Elbow 5D galvanized steel 90° seamless S235 (T10) weld-on 21.3mm x 2.0mm

Construction:

• Material: S235 carbon steel.
• Fabrication: Designed from seamless tubing, ensuring increased strength and improved sealing.
• Finish: Galvanized for enhanced corrosion protection.
• Bending radius: 5D (five times the nominal pipe diameter).
• Ends: Butt-weld (BW), facilitating assembly in piping systems.

Technical specifications:

Available diameters: Vary according to specific needs, e.g. from 48.3 mm x 2.6 mm to 139.7 mm x 4.0 mm.
Maximum pressure: Up to 16 bar, depending on EN 10253-1 specifications and operating conditions.
Temperature range: -20°C to +300°C, suitable for a wide range of industrial applications.

Standardization: This elbow complies with NF EN 10253-1, which specifies the requirements for steel weld fittings for pressure applications. Galvanizing is carried out in accordance with Appendix 1 of the Attestation de Conformité Sanitaire (ACS), guaranteeing effective protection against corrosion.

Pressure: The maximum permissible pressure for this elbow is 16 bar, depending on specific dimensions and operating conditions. It is essential to refer to the detailed technical specifications and applicable standards to determine the appropriate pressure rating for each application.

Temperature: This elbow is designed to operate in a temperature range from -20°C to +300°C, making it versatile for a variety of operating conditions, including heating systems, air conditioning installations and compressed air distribution networks.

Diameters 159 - 219- 273 : Not included in En 10253-1 standard

The S235 (T10) seamless 5D galvanized steel 90° weld elbow is an essential component for industrial piping systems, offering a reliable solution for changing the direction of pipes while guaranteeing high strength, corrosion protection and compliance with current standards.
