Cast iron sleeve with external clamping for rigid pipes, featuring a self-locking ring ø46 - 70

Adaptateurs à brides et manchons en fonte
Manchon fonte à serrage extérieur pour tubes rigides avec bague autobloquante
search
  • Manchon fonte à serrage extérieur pour tubes rigides avec bague autobloquante
  • NOMENCLATURE MANCHON UNIVERSEL AVEC BAGUE AUTOBLOQUANTE REF. 2507
  • Manchon universel avec bague autobloquante Ref. 2507

Photos non contractuelles

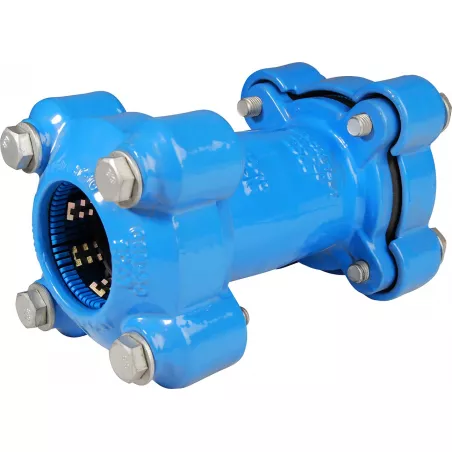

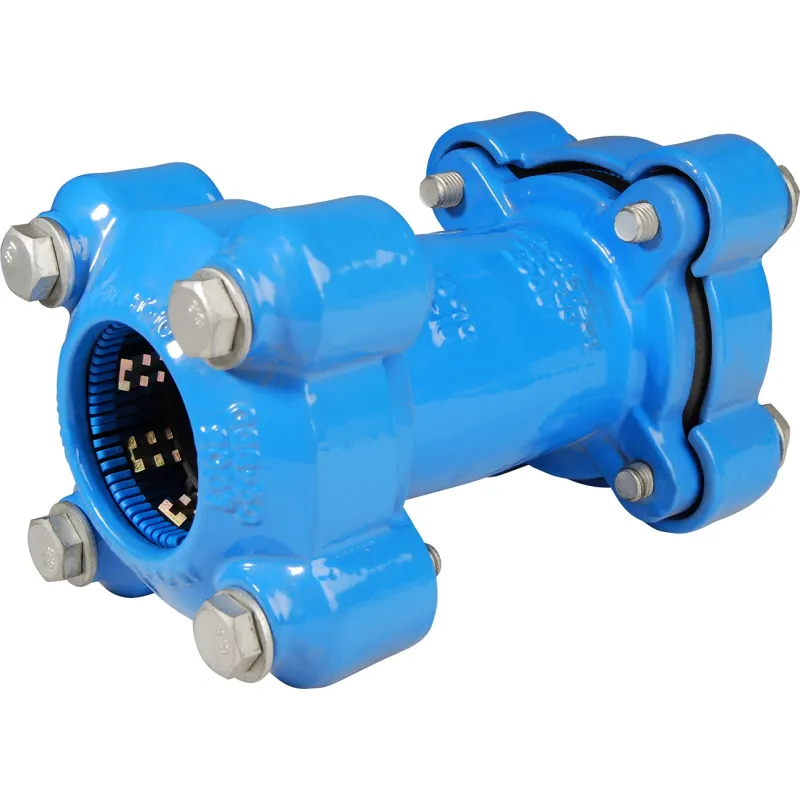

Cast iron sleeve with external clamping for rigid pipes, featuring a self-locking ring

Application:

Suitable for all rigid pipes such as:

  • Copper
  • Steel
  • Cast iron
  • Fiber cement
  • PVC and biaxially oriented PVC
  • ETC

Not suitable for polyethylene pipes

Plus de détails
Normes et certifications : Certification ACSNormes et certifications : ISO 9001 Bureau VERITAS1
ø46 - 70
Are you an individual?
Are you a professional?

Log in to find out your discount.

€461.26 Tax included

384.38 € tax excl.

Unité de vente : Pièce
2507F0000000050
Ø tube: Ø46 - 70
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information Cast iron sleeve with external clamping for rigid pipes, featuring a self-locking ring

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Specifications:

  • Operating pressure: 16 bar
  • Operating temperature: 0°C to +60°C
  • For water distribution and supply networks.

Construction:

  • Body and counterflange: Cast iron EN GJS-500-7
  • 250µ epoxy coating
  • EPDM gasket
  • Dacromet-coated corrosion-resistant fasteners

Standardization:

  • Directive 2014/68/EU: Excluded products (Article 1, § 2b)
  • Manufactured in accordance with ISO 9001:2008
  • Leak testing in accordance with EN 12226-1
  • Flanges in accordance with EN 1092-2 PN10/16
  • ACS No. 14ACCLY150

Key features:

  • Installation on pipe without disassembling the fitting
  • Self-locking ring preventing axial movement of the pipe

Caractéristiques techniques Cast iron sleeve with external clamping for rigid pipes, featuring a self-locking ring

Data sheet

Reference
2507F0000000050
Avis de l'équipe
Montage sur tube sans démontage du raccord. Bague autobloquante empêchant le mouvement axial du tube.
Corps
Fonte EN GJS-500-7
Entraxe
En fonction du modèle choisi
Type de raccordement
À compression
Raccordement
FF (femelle - femelle)
Diamètre
En fonction du modèle choisi
Pression de service
16B
Température minimum
0°C
Température maximum
60°C
Fluide admissible
réseaux d'adduction et distribution d'eau
Normes et certifications
Certification ACS - ISO 9001 Bureau VERITAS
Normalisation
Directive 2014/68/UE : produits exclus (article 1, § 2b)
Unité de vente
Pièce
Garantie fabricant
1 an

Specific References

ean13
3598781181355

Download documentation

FT 2507

Fiche technique manchon fonte universel verrouillé large autobuté plages ACS

Download (875.63KB)

Caractéristiques liées à la version du produit Cast iron sleeve with external clamping for rigid pipes, featuring a self-locking ring

Voici la liste des références et poids correspondants aux options séléctionnées.
2507F0000000050 - Cast iron sleeve with external clamping for rigid pipes, featuring a self-locking ring - Ø46 - 70
Ø tube Ø46 - 70
Packed weight 8,19kg
384.38 € tax excl.
Consulter
2507F0000000065 - Cast iron sleeve with external clamping for rigid pipes, featuring a self-locking ring - Ø70 - 95
Ø tube Ø70 - 95
Packed weight 9,345kg
529.82 € tax excl.
Consulter
2507F0000000080 - Cast iron sleeve with external clamping for rigid pipes, featuring a self-locking ring - Ø88 - 123
Ø tube Ø88 - 123
Packed weight 12,495kg
483.11 € tax excl.
Consulter
2507F0000000100 - Cast iron sleeve with external clamping for rigid pipes, featuring a self-locking ring - Ø108 - 143
Ø tube Ø108 - 143
Packed weight 13,965kg
562.74 € tax excl.
Consulter
2507F0000000125 - Cast iron sleeve with external clamping for rigid pipes, featuring a self-locking ring - Ø133 - 168
Ø tube Ø133 - 168
Packed weight 16,044kg
971.49 € tax excl.
Consulter
2507F0000000150 - Cast iron sleeve with external clamping for rigid pipes, featuring a self-locking ring - Ø159 - 194
Ø tube Ø159 - 194
Packed weight 17,43kg
966.16 € tax excl.
Consulter
2507F0000000200 - Cast iron sleeve with external clamping for rigid pipes, featuring a self-locking ring - Ø200 - 235
Ø tube Ø200 - 235
Packed weight 26,586kg
1573.46 € tax excl.
Consulter
2507F0000000250 - Cast iron sleeve with external clamping for rigid pipes, featuring a self-locking ring - Ø250 - 285
Ø tube Ø250 - 285
Packed weight 30,975kg
1853.74 € tax excl.
Consulter
2507F0000000300 - Cast iron sleeve with external clamping for rigid pipes, featuring a self-locking ring - Ø315 - 350
Ø tube Ø315 - 350
Packed weight 40,488kg
2155.24 € tax excl.
Consulter
Référence - Désignation Ø tube Packed weight Prix
2507F0000000050 - Cast iron sleeve with external clamping for rigid pipes, featuring a self-locking ring - Ø46 - 70 Ø46 - 70 8,19kg 384.38 € tax excl.
2507F0000000065 - Cast iron sleeve with external clamping for rigid pipes, featuring a self-locking ring - Ø70 - 95 Ø70 - 95 9,345kg 529.82 € tax excl.
2507F0000000080 - Cast iron sleeve with external clamping for rigid pipes, featuring a self-locking ring - Ø88 - 123 Ø88 - 123 12,495kg 483.11 € tax excl.
2507F0000000100 - Cast iron sleeve with external clamping for rigid pipes, featuring a self-locking ring - Ø108 - 143 Ø108 - 143 13,965kg 562.74 € tax excl.
2507F0000000125 - Cast iron sleeve with external clamping for rigid pipes, featuring a self-locking ring - Ø133 - 168 Ø133 - 168 16,044kg 971.49 € tax excl.
2507F0000000150 - Cast iron sleeve with external clamping for rigid pipes, featuring a self-locking ring - Ø159 - 194 Ø159 - 194 17,43kg 966.16 € tax excl.
2507F0000000200 - Cast iron sleeve with external clamping for rigid pipes, featuring a self-locking ring - Ø200 - 235 Ø200 - 235 26,586kg 1573.46 € tax excl.
2507F0000000250 - Cast iron sleeve with external clamping for rigid pipes, featuring a self-locking ring - Ø250 - 285 Ø250 - 285 30,975kg 1853.74 € tax excl.
2507F0000000300 - Cast iron sleeve with external clamping for rigid pipes, featuring a self-locking ring - Ø315 - 350 Ø315 - 350 40,488kg 2155.24 € tax excl.
