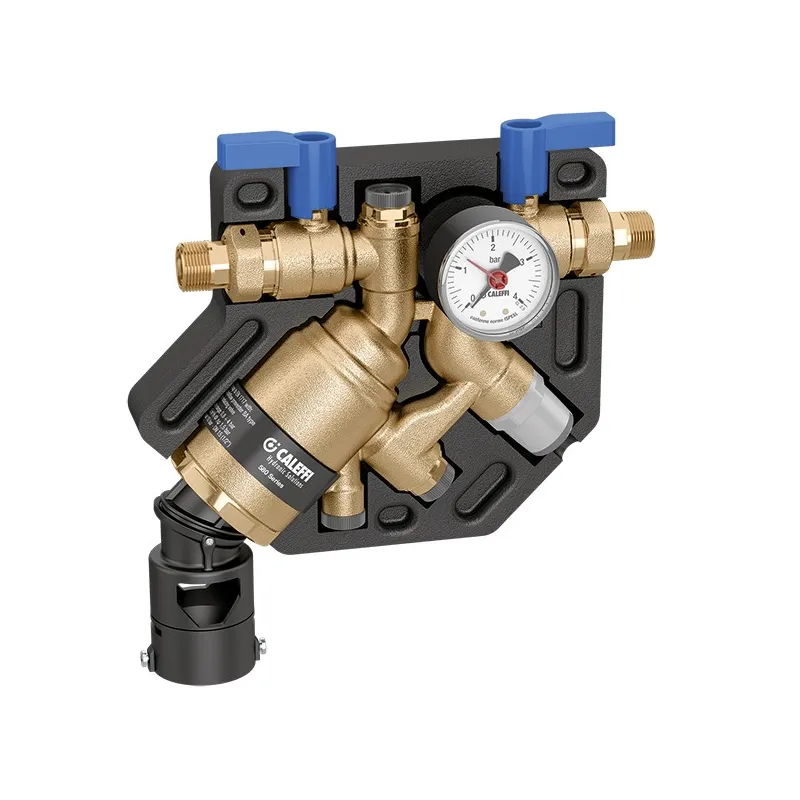

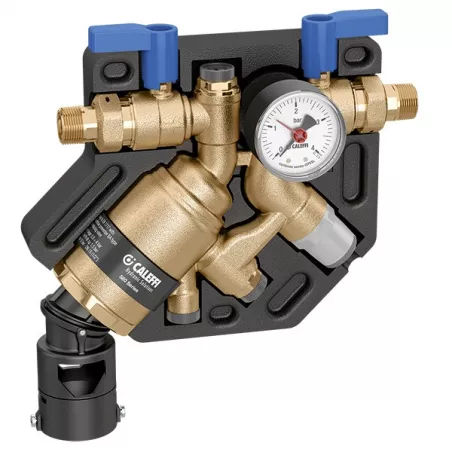

Compact automatic filling unit with a BA-type backflow preventer, DN20

Description:

  • Automatic filling unit compliant with EN1717 standard, featuring a BA-type backflow preventer, shut-off valve, filter,
  • for backflow preventer testing, and pressure reducer.
  • For horizontal and vertical installation.
  • Body made of dezincification-resistant brass.
  • With insulation jacket.

For central heating systems > 70 kW

  • DN20 flow

* Backflow preventers with a controllable reduced pressure zone must be serviced regularly by a certified installer.

Plus de détails
Normes et certifications : NFType de raccordement : Á visser BSP (pas du gaz)Fluide admissible : Eau sanitaire et potable1
Are you an individual?
Are you a professional?

Log in to find out your discount.

€416.02 Tax included

346.68 € tax excl.

Unité de vente : Pièce
MAUTOLC00000015
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information Compact automatic filling unit with a BA-type backflow preventer, DN20

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Function:

The compact filling unit includes two shut-off valves, a filter, a BA-type controllable reduced-pressure backflow preventer, and an automatic filling unit. The device must be installed on the water supply piping of closed-loop heating systems; its primary function is to stabilize the system pressure at a preset value by automatically replenishing the water level. The backflow preventer is installed in accordance with EN 1717 to prevent any backflow of water from the heating system, which may be contaminated and hazardous to human health. The unit includes an insulation jacket.

Technical specifications:

Construction:
  • Body: dezincification-resistant brass EN 1982 CC770S
  • Check valve: POM-EPDM
  • Spring: stainless steel EN 10270-3 (AISI 302)
  • Diaphragm and seals: EPDM
  • Filling unit
  • Body: dezincification-resistant brass EN 1982 CC770S
  • Cover: PA6G30
  • Shutter: dezincification-resistant brass EN 12164 CW724R
  • Diaphragm and seals: NBR - EPDM
  • Ball stop valve
  • Body: dezincification-resistant brass EN 1982 CC770S
  • Ball: brass EN 12164 CW614N
  • Seal: EPDM
  • Handle: PA6G30
Strainer:
  • Body: stainless steel EN 10088-2 (AISI 304L)
  • Filter mesh size: 0.4 mm
  • Insulation shell
  • Material: EPS
  • Density: 30 kg/m³
  • Performance
  • Permissible fluid: drinking water
  • Maximum operating pressure: 10 bar
  • Maximum operating temperature: 65°C
Backflow preventer:
  • Designation: Family B, Type A
  • Certification: EN 12729
  • Pressure taps: upstream, intermediate, downstream
  • Filling unit
  • Adjustment range: 0.8–4 bar
  • Factory setting: 1.5 bar
  • Gauge accuracy: ± 0.15 bar
  • Pressure gauge range: 0–4 bar
  • Connections: 1/2” M union fitting (EN 10226-1)

Caractéristiques techniques Compact automatic filling unit with a BA-type backflow preventer, DN20

Data sheet

Reference
MAUTOLC00000015
Avis de l'équipe
Meilleur choix technique
Matière
Laiton
Type de raccordement
Á visser BSP (pas du gaz)
Raccordement
MM (mâle - mâle)
Diamètre
En fonction du modèle choisi
Pression maximum
10 bar
Température maximum
65°C
Fluide admissible
Eau sanitaire et potable
Normes et certifications
EN 12729 NF
Équipements
Coque d'isolation Manomètre Vanne
Unité de vente
Pièce
Garantie fabricant
1 an

Download documentation

FT AD15HV

Fiche technique Groupe compact de remplissage auto avec disconnecteur type BA

Download (1.58MB)
