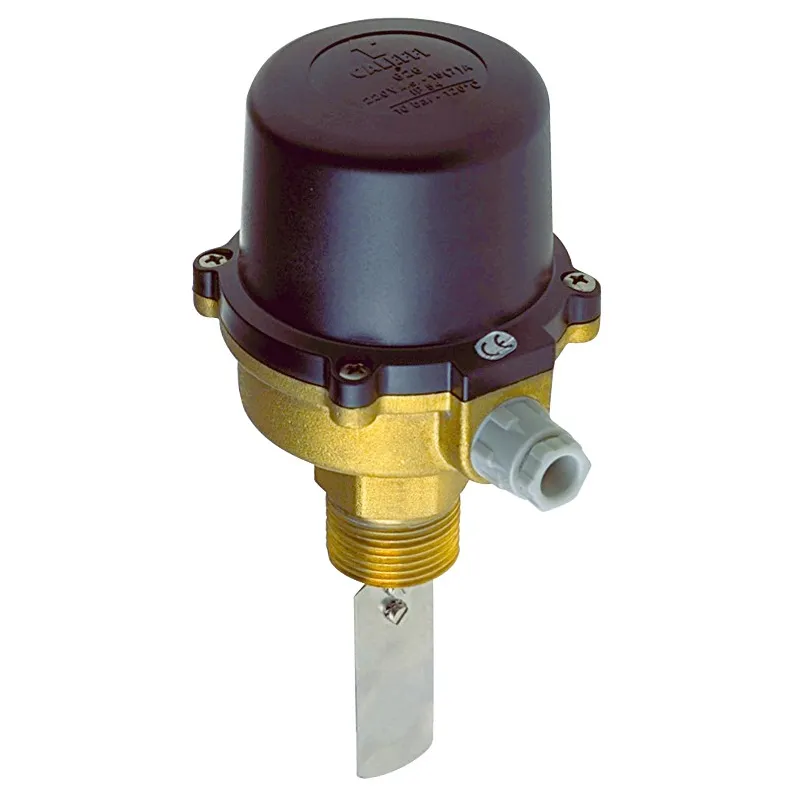

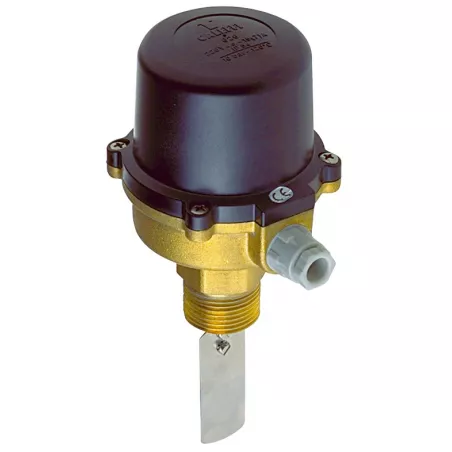

Flow switch

Aquastats
Flussostat controleur de débit
search
  • Flussostat controleur de débit

Photo non contractuelle

The flow switch indicates the presence or absence of flow in a system

Function:

The flow switch is used whenever it is necessary to detect the presence or absence of flow in systems.
For example: heating systems, air conditioning systems, plumbing systems with instantaneous heat exchangers, pumping systems, water treatment systems. It performs the following functions:

  • Control of devices such as: pumps, burners, compressors, motorized valves
  • Triggering signaling or alarm devices
Plus de détails
Type de raccordement : Á visser BSP (pas du gaz)1
Are you an individual?
Are you a professional?

Log in to find out your discount.

€171.01 Tax included

142.51 € tax excl.

Unité de vente : Pièce
FLUSSOSTAT00M25
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information Flow switch

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Technical specifications:

  • For pipes from 1" to 8"
  • Voltage 240 V
  • Current: 15 (7) A
  • Protection class: IP 54
  • Connection: 1"
  • Max. operating pressure: 10 bar
  • Fluid temperature: max. 120 °C - min. -30 °C
  • Max. ambient temperature: 55 °C

Materials:

  • Body: Brass P-Cu Zn40 Pb2
  • Bellows: AISI 316L stainless steel
  • Control rod: AISI 304 stainless steel
  • Internal supports: AISI 304 stainless steel
  • Paddle and screw: AISI 304 stainless steel
  • Body/bellows door seal: EPDM
  • Micro-switch protection and cover: Class V-0 self-extinguishing polycarbonate

Caractéristiques techniques Flow switch

Data sheet

Reference
FLUSSOSTAT00M25
Type de raccordement
Á visser BSP (pas du gaz)
Raccordement
Mâle
Diamètre
1"
Pression maximum
10 bar
Température minimum
-30°C
Température maximum
120°C
Fluide admissible
Arrosage et irrigation Eau chauffage Eau glacée et climatisation Fluides courants compatibles
Indice de protection
IP54
Unité de vente
Pièce
Garantie fabricant
1 an

Specific References

ean13
8016615037999

Download documentation

FT FLUS

Fiche technique Flussostat controleur de débit

Download (480.76KB)
