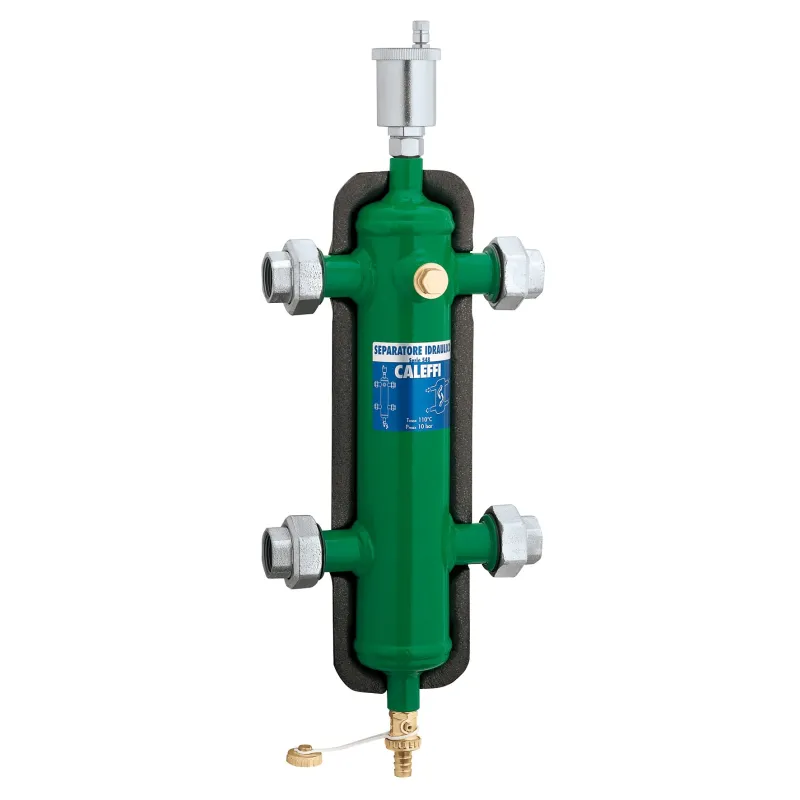

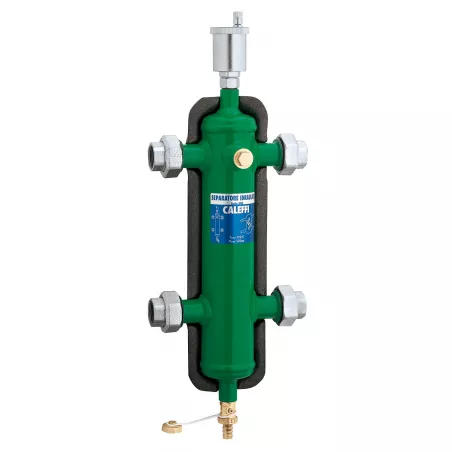

Hydraulic decoupling bottle with union fittings

Function:

In heating or air conditioning circuits, the hydraulic decoupling bottle performs various functions:

  • Hydraulic separator, to make the primary and secondary hydraulic circuits independent.
  • Settling tank, to allow the separation and settling of impurities present in the circuits.
  • Automatic air vent, to remove air from the circuits.

Maximum glycol content: 30%.

Plus de détails
Type de raccordement : Á visser BSP (pas du gaz)1
1" (26/34)
Are you an individual?
Are you a professional?

Log in to find out your discount.

€430.99 Tax included

359.16 € tax excl.

Unité de vente : Pièce
BDHEIA000000F25
Diameter (in inches): 1" (26/34)
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information Hydraulic decoupling bottle with union fittings

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Construction:

  • Steel body, epoxy painted
  • Vents, brass body, EPDM seals, union series
  • Viton seals, flanged series
  • PP float, union series
  • Stainless steel grid
  • Drain valve
  • Closed-cell, dual-density expanded PEX insulation* 20 mm
    thick*Density: Inner
    part: 30 kg/m3 Outer
    part: 50 kg/m3

Thermal conductivity (ISO 2581):

  • At 0°C: 0.038 W/mK
  • At 40°C: 0.045 W/mK
  • Vapor resistance coefficient (DIN 52615) > 1.300
  • Temperature range 0 / 100 °C
  • Reaction to fire (DIN 4102) class B2

Caractéristiques techniques Hydraulic decoupling bottle with union fittings

Data sheet

Reference
BDHEIA000000F25
Matière
Acier
Isolation
PEX expansé 20mm
Internes
Grille inox
Capacité
En fonction du modèle choisi
Nombre de piquages
4 piquages standards
Type de raccordement
Á visser BSP (pas du gaz)
Raccordement
Femelle
Diamètre
En fonction du modèle choisi
Pression maximum
10 bar
Température minimum
0°C
Température maximum
100°C
Fluide admissible
Eau chauffage Eau glycolée
Unité de vente
Pièce
Garantie fabricant
1 an

Specific References

ean13
8016615061192

Download documentation

FT BDH026

Fiche technique bouteille de découplage hydraulique raccords union

Download (547.49KB)

Caractéristiques liées à la version du produit Hydraulic decoupling bottle with union fittings

Voici la liste des références et poids correspondants aux options séléctionnées.
BDHEIA000000F25 - Hydraulic decoupling bottle with union fittings - 1" (26/34)
Diameter (in inches) 1" (26/34)
Packed weight 4,998kg
359.16 € tax excl.
Consulter
BDHEIA000000F32 - Hydraulic decoupling bottle with union fittings - 1"1/4 (33/42)
Diameter (in inches) 1"1/4 (33/42)
Packed weight 7,04655kg
409.05 € tax excl.
Consulter
BDHEIA000000F40 - Hydraulic decoupling bottle with union fittings - 1"1/2 (40/49)
Diameter (in inches) 1"1/2 (40/49)
Packed weight 7,93275kg
506.22 € tax excl.
Consulter
BDHEIA000000F50 - Hydraulic decoupling bottle with union fittings - 2" (50/60)
Diameter (in inches) 2" (50/60)
Packed weight 16,8kg
598.13 € tax excl.
Consulter
Référence - Désignation Diameter (in inches) Packed weight Prix
BDHEIA000000F25 - Hydraulic decoupling bottle with union fittings - 1" (26/34) 1" (26/34) 4,998kg 359.16 € tax excl.
BDHEIA000000F32 - Hydraulic decoupling bottle with union fittings - 1"1/4 (33/42) 1"1/4 (33/42) 7,04655kg 409.05 € tax excl.
BDHEIA000000F40 - Hydraulic decoupling bottle with union fittings - 1"1/2 (40/49) 1"1/2 (40/49) 7,93275kg 506.22 € tax excl.
BDHEIA000000F50 - Hydraulic decoupling bottle with union fittings - 2" (50/60) 2" (50/60) 16,8kg 598.13 € tax excl.
