Stainless steel PN10/16 flanged pipe fitting for welding (Type 11/B) dn 50 inox 304l

Bride inox

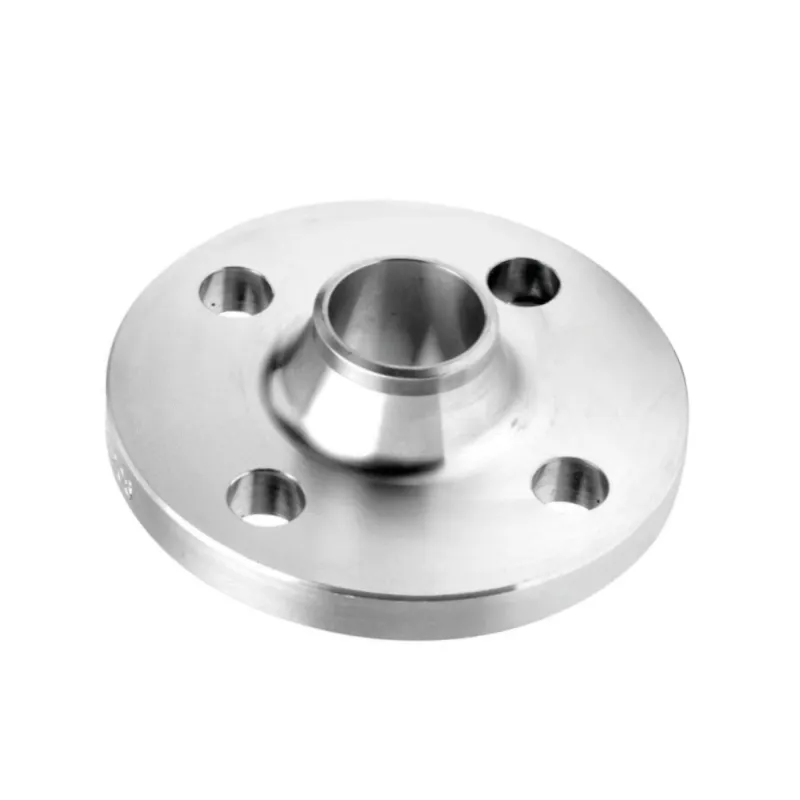

Bride à collerette PN10/16 à souder (type 11/B) 304L ou 316L
search
  • Bride à collerette PN10/16 à souder (type 11/B) 304L ou 316L

Photo non contractuelle

PN10/16 Welded Flanged Coupling (Type 11/B) 304L or 316L EN 1092-1

Welded flanged collar PN10/40 in 304L or 316L stainless steel, Type 11/B1, in accordance with EN 1092-1, for transporting fluids or gases.
Allows for the connection of flanged valves (valves, check valves, filters, etc.).

PN10/16 from DN50 to DN150

The number of holes in the flange depends on its diameter:

DN50: 4 holes
DN65 to DN150: 8 holes

Please contact us for different diameters or PN ratings

Normes et certifications : Certification ACSNormes et certifications : EN 1092-11
dn 50 inox 304l
Are you an individual?
Are you a professional?

Log in to find out your discount.

€30.35 Tax included

25.29 € tax excl.

Unité de vente : Pièce
BR11B40PN160050
Flanges: DN 50
Matière: Inox 304L
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Certificates materials pour Stainless steel PN10/16 flanged pipe fitting for welding (Type 11/B)

Would you like to order materials that require a material certificate?

Here are the steps to follow :

1. Add product to cart.

2. Vérifiez que la référence produit actuellement sélectionnée corresponde au produit concerné et ajoutez au panier le material certificate desired).

Currently selected product reference : --

Caractéristiques techniques Stainless steel PN10/16 flanged pipe fitting for welding (Type 11/B)

Data sheet

Reference
BR11B40PN160050
Matière
En fonction du modèle choisi
Diamètre
En fonction du modèle choisi
Pression nominale
En fonction du modèle choisi
Pression de service
En fonction du modèle choisi
Température maximum
450°C
Normes et certifications
Certification ACS EN 1092-1
Possibilité de certificat 3.1
Oui
Unité de vente
Pièce
Garantie fabricant
1 an

Download documentation

FT 2COL

Fiche technique bride à collerette à souder BW inox 304L

Download (599KB)

FT 4COL

Fiche technique bride à collerette à souder BW inox 316L

Download (598.82KB)

Accessoires et équipements (vendus séparément)

Caractéristiques liées à la version du produit Stainless steel PN10/16 flanged pipe fitting for welding (Type 11/B)

Voici la liste des références et poids correspondants aux options séléctionnées.
BR11B40PN160050 - Stainless steel PN10/16 flanged pipe fitting for welding (Type 11/B) - DN 50 - Inox 304L
Flanges DN 50
Matière Inox 304L
Packed weight 2,6kg
25.29 € tax excl.
Consulter
BR11B60PN160050 - Stainless steel PN10/16 flanged pipe fitting for welding (Type 11/B) - DN 50 - Inox 316L
Flanges DN 50
Matière Inox 316L
Packed weight 2,6kg
49.11 € tax excl.
Consulter
BR11B60PN160065 - Stainless steel PN10/16 flanged pipe fitting for welding (Type 11/B) - DN 65 - Inox 316L
Flanges DN 65
Matière Inox 316L
Packed weight 3,1kg
60.32 € tax excl.
Consulter
BR11B40PN160065 - Stainless steel PN10/16 flanged pipe fitting for welding (Type 11/B) - DN 65 - Inox 304L
Flanges DN 65
Matière Inox 304L
Packed weight 3,1kg
40.82 € tax excl.
Consulter
BR11B60PN160080 - Stainless steel PN10/16 flanged pipe fitting for welding (Type 11/B) - DN 80 - Inox 316L
Flanges DN 80
Matière Inox 316L
Packed weight 4kg
67.44 € tax excl.
Consulter
BR11B40PN160080 - Stainless steel PN10/16 flanged pipe fitting for welding (Type 11/B) - DN 80 - Inox 304L
Flanges DN 80
Matière Inox 304L
Packed weight 4kg
32.5 € tax excl.
Consulter
BR11B40PN160100 - Stainless steel PN10/16 flanged pipe fitting for welding (Type 11/B) - DN 100 - Inox 304L
Flanges DN 100
Matière Inox 304L
Packed weight 4,55kg
62.11 € tax excl.
Consulter
BR11B60PN160100 - Stainless steel PN10/16 flanged pipe fitting for welding (Type 11/B) - DN 100 - Inox 316L
Flanges DN 100
Matière Inox 316L
Packed weight 4,55kg
71.99 € tax excl.
Consulter
BR11B40PN160125 - Stainless steel PN10/16 flanged pipe fitting for welding (Type 11/B) - DN 125 - Inox 304L
Flanges DN 125
Matière Inox 304L
Packed weight 6,2kg
58.5 € tax excl.
Consulter
BR11B60PN160125 - Stainless steel PN10/16 flanged pipe fitting for welding (Type 11/B) - DN 125 - Inox 316L
Flanges DN 125
Matière Inox 316L
Packed weight 6,2kg
109.79 € tax excl.
Consulter
BR11B60PN160150 - Stainless steel PN10/16 flanged pipe fitting for welding (Type 11/B) - DN 150 - Inox 316L
Flanges DN 150
Matière Inox 316L
Packed weight 7,8kg
133.84 € tax excl.
Consulter
BR11B40PN160150 - Stainless steel PN10/16 flanged pipe fitting for welding (Type 11/B) - DN 150 - Inox 304L
Flanges DN 150
Matière Inox 304L
Packed weight 7,8kg
74.39 € tax excl.
Consulter
Référence - Désignation Flanges Matière Packed weight Prix
BR11B40PN160050 - Stainless steel PN10/16 flanged pipe fitting for welding (Type 11/B) - DN 50 - Inox 304L DN 50 Inox 304L 2,6kg 25.29 € tax excl.
BR11B60PN160050 - Stainless steel PN10/16 flanged pipe fitting for welding (Type 11/B) - DN 50 - Inox 316L DN 50 Inox 316L 2,6kg 49.11 € tax excl.
BR11B60PN160065 - Stainless steel PN10/16 flanged pipe fitting for welding (Type 11/B) - DN 65 - Inox 316L DN 65 Inox 316L 3,1kg 60.32 € tax excl.
BR11B40PN160065 - Stainless steel PN10/16 flanged pipe fitting for welding (Type 11/B) - DN 65 - Inox 304L DN 65 Inox 304L 3,1kg 40.82 € tax excl.
BR11B60PN160080 - Stainless steel PN10/16 flanged pipe fitting for welding (Type 11/B) - DN 80 - Inox 316L DN 80 Inox 316L 4kg 67.44 € tax excl.
BR11B40PN160080 - Stainless steel PN10/16 flanged pipe fitting for welding (Type 11/B) - DN 80 - Inox 304L DN 80 Inox 304L 4kg 32.5 € tax excl.
BR11B40PN160100 - Stainless steel PN10/16 flanged pipe fitting for welding (Type 11/B) - DN 100 - Inox 304L DN 100 Inox 304L 4,55kg 62.11 € tax excl.
BR11B60PN160100 - Stainless steel PN10/16 flanged pipe fitting for welding (Type 11/B) - DN 100 - Inox 316L DN 100 Inox 316L 4,55kg 71.99 € tax excl.
BR11B40PN160125 - Stainless steel PN10/16 flanged pipe fitting for welding (Type 11/B) - DN 125 - Inox 304L DN 125 Inox 304L 6,2kg 58.5 € tax excl.
BR11B60PN160125 - Stainless steel PN10/16 flanged pipe fitting for welding (Type 11/B) - DN 125 - Inox 316L DN 125 Inox 316L 6,2kg 109.79 € tax excl.
BR11B60PN160150 - Stainless steel PN10/16 flanged pipe fitting for welding (Type 11/B) - DN 150 - Inox 316L DN 150 Inox 316L 7,8kg 133.84 € tax excl.
BR11B40PN160150 - Stainless steel PN10/16 flanged pipe fitting for welding (Type 11/B) - DN 150 - Inox 304L DN 150 Inox 304L 7,8kg 74.39 € tax excl.
