1/2" 2-way zone valve supplied with a 3-point electric actuator

Chauffage individuel centralisé
Vanne de zone 2 voies 1/2" livrée avec moteur électrique 3 points
search
  • Vanne de zone 2 voies 1/2" livrée avec moteur électrique 3 points
  • Vanne de zone 2 voies 1/2" livrée avec moteur électrique 3 points schéma d'installation

Photos non contractuelles

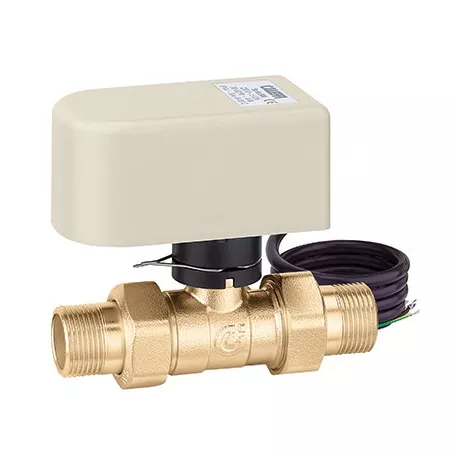

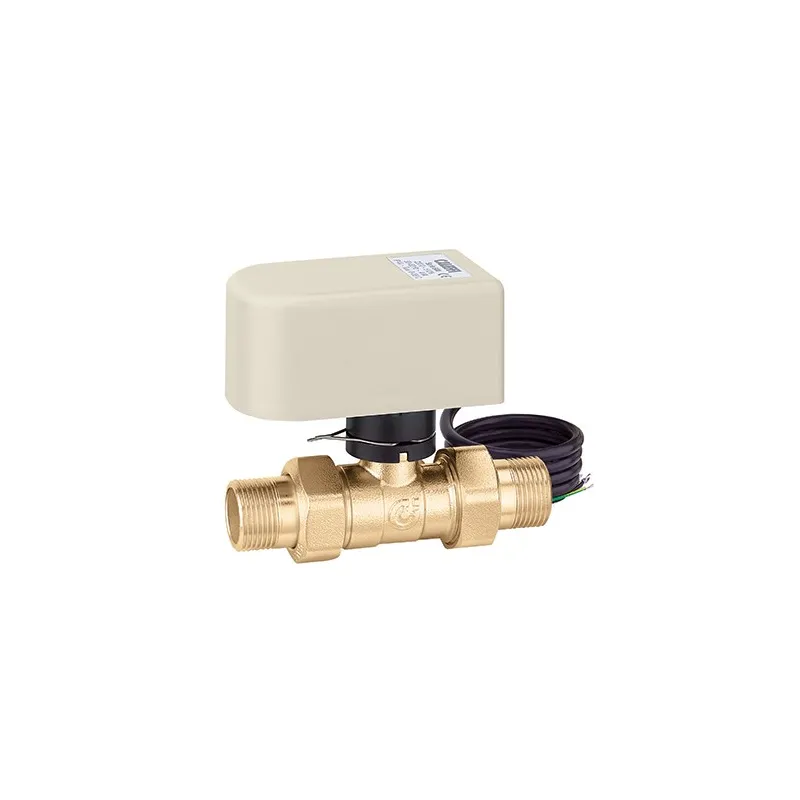

1/2" 2-way zone valve supplied with a 3-point electric actuator for individual centralized heating

Function:

Installed at the entrance to apartments in a multi-unit building, the directional valve, combined with an AUTOFLOW flow regulator, allows occupants to receive—and therefore pay for—only the energy they need.

Maximum glycol concentration: 50%

Plus de détails
Type de raccordement : Á visser BSP (pas du gaz)1
Are you an individual?
Are you a professional?

Log in to find out your discount.

€188.33 Tax included

156.94 € tax excl.

Unité de vente : Pièce
V2VMOL000000015
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information 1/2" 2-way zone valve supplied with a 3-point electric actuator

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

In a multi-unit building equipped with a central boiler room, the C.I.C. system ensures that residents receive only the energy they actually need.
The room thermostat in each apartment opens or closes the directional valve according to the desired comfort temperature.
The AUTOFLOW flow regulator ensures the flow rate—and thus the amount of heat available in each apartment loop—regardless of the demand from other occupants.
Installations can be configured using 2-way valves or 3-way valves with an integrated return tee.

Caractéristiques techniques 1/2" 2-way zone valve supplied with a 3-point electric actuator

Data sheet

Reference
V2VMOL000000015
Avis de l'équipe
Produit spécial rénovation particulièrement adapté aux copropriétaires et colocataires.
Matière
Laiton
Siège
EPDM PTFE
Joint
EPDM
Entraxe
117 mm
Type de raccordement
Á visser BSP (pas du gaz)
Raccordement
MM (mâle - mâle)
Diamètre
1/2"
Pression différentielle
10 bar max
Pression maximum
10 bar
Température minimum
-5°C
Température maximum
110°C
Fluide admissible
Eau chauffage
Tension électrique
230V monophasé
Fréquence
50 / 60Hz
Indice de protection
IP40 IP44
Équipements
Raccords unions
Unité de vente
Pièce
Garantie fabricant
1 an

Specific References

ean13
8016615152616

Download documentation

FT CIC

Fiche technique vannes directionnel pour CIC

Download (751.9KB)
