EVOPLUS DN 32 Circulator for Central Heating and Air Conditioning Systems in Public Buildings, Cast Iron with Flanges evoplus 120/220-32m double

Circulateurs gamme collectif

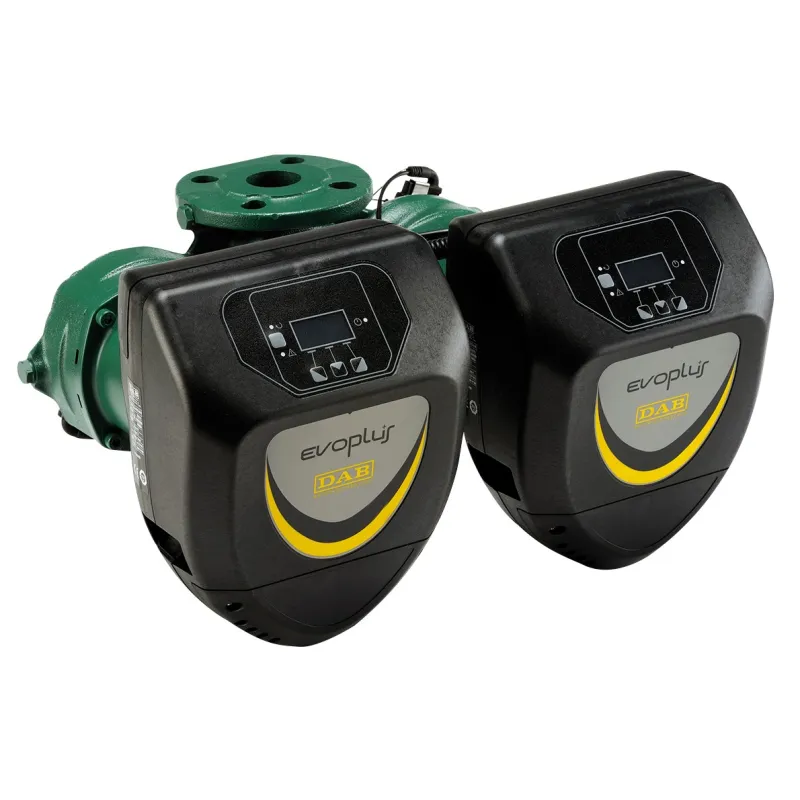

Circulateur double pour chauffage et climatisation collectif EVOPLUS ERP fonte à brides
search
  • Circulateur double pour chauffage et climatisation collectif EVOPLUS ERP fonte à brides

Photo non contractuelle

EVOPLUS DN32 Circulator for District Heating and Cooling Systems, Cast Iron with Flanges

EVOPLUS ERP cast iron flanged single or double DN 32 circulators for heating and air conditioning, with electronic speed control.

Low power consumption, compliant with European Directives 2013 and 2015 ErP 2009/125/EC.

All functions are built-in, with no additional modules required. Operating
modes: Constant pressure, proportional pressure, or constant speed.
Supplied with insulation casing, automatic degassing, maximum torque start-up, and nighttime speed reduction function. Electrical connection without removing the terminal block.

Plus de détails
Normes et certifications : Erp 2009/125/CEType de raccordement : À brides EN1092-1 PN101
evoplus 120/220-32m double
Are you an individual?
Are you a professional?

Log in to find out your discount.

€2,052.11 Tax included

1710.09 € tax excl.

Unité de vente : Pièce
CERCDFB22012032
Type - Center distance - Diameter: EVOPLUS 120/220-32M
Type: Double
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information EVOPLUS DN 32 Circulator for Central Heating and Air Conditioning Systems in Public Buildings, Cast Iron with Flanges

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Pumped fluid: clean, free of solid contaminants and mineral oils, non-viscous, chemically neutral, with properties similar to water.
The installation of a settling tank is strongly recommended: click here Maximum
glycol content: 30%

Application:

EVOPLUS electronic circulators are suitable for heating, fan coil, and air conditioning systems.

Technical data:

  • Operating range: 3 to 18 m³/h for head heights of up to 18 meters.
  • Fluid temperature range: -10 °C to +110 °C.
  • Pumped fluid: clean, free of solid contaminants and mineral oils, non-viscous, chemically neutral, with properties similar to water (max. glycol content 30%).
  • Maximum operating pressure: 16 bar (1600 kPa).
  • Standard flanges: DN 32, PN 6 / PN 10.
  • Minimum suction pressure: values in the corresponding tables.
  • Electromagnetic compatibility: EVOPLUS circulators comply with EN 61800-3, Category C2 for electromagnetic compatibility.
  • Electromagnetic emissions: residential environments (containment measures may be necessary in some cases).
  • Directed emissions: residential environments (containment measures may be necessary in some cases).

Heating and air conditioning systems:

Heating requirements vary significantly throughout the day and night depending on ambient temperature and occupancy patterns. This variability can be exacerbated by the differing needs of various rooms, as well as the opening or closing of different circuits in more complex systems.
The use of electronic submersible pumps ensures, in most installations—provided they are properly sized—sufficient power combined with reduced noise emissions, increased comfort, and a significant reduction in operating costs.
EVOPLUS electronic circulators are also suitable for HVAC systems where the temperature of the pumped fluid is lower than the ambient temperature. In such cases, condensation tends to form on the circulator’s exterior surface without compromising the operation of the electronic and mechanical components. The unit is designed and sized to allow condensation to drain away without damaging the structure.
Easy to use and equipped with an intuitive control panel featuring a display that constantly shows the selected mode, EVOPLUS circulators can operate in three different control modes.

Caractéristiques techniques EVOPLUS DN 32 Circulator for Central Heating and Air Conditioning Systems in Public Buildings, Cast Iron with Flanges

Data sheet

Reference
CERCDFB22012032
Matière
Fonte
Entraxe
220 mm
Type de raccordement
À brides EN1092-1 PN10
Diamètre
1"1/4
Débit
Voir courbe
Colonne d'eau
Voir courbe
Pression maximum
16 bar
Température minimum
-10°C
Température maximum
110°C
Fluide admissible
Eau chauffage Eau glacée et climatisation
Tension électrique
230V monophasé
Fréquence
50 / 60Hz
Indice de protection
IP44
Classe d'isolation
F
Normes et certifications
Erp 2009/125/CE
Unité de vente
Pièce
Garantie fabricant
1 an

Specific References

ean13
8059893011718

Download documentation

FT EVO032

Fiche technique circulateur EVOPLUS DN 32 pour bouclage sanitaire collectif ERP fonte à brides

Download (1.24MB)

Accessoires et équipements (vendus séparément)

Caractéristiques liées à la version du produit EVOPLUS DN 32 Circulator for Central Heating and Air Conditioning Systems in Public Buildings, Cast Iron with Flanges

Voici la liste des références et poids correspondants aux options séléctionnées.
