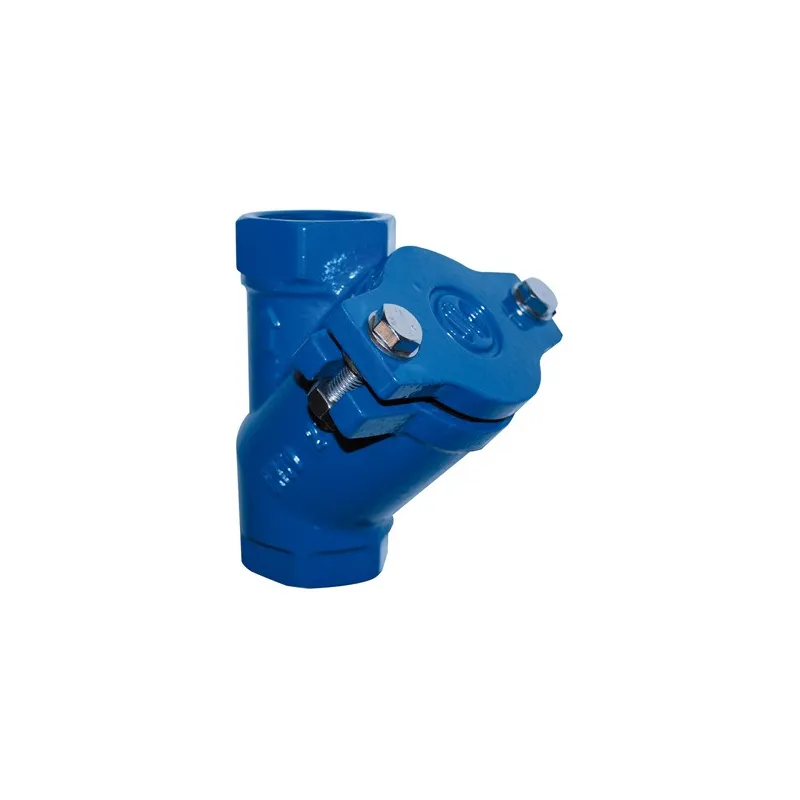

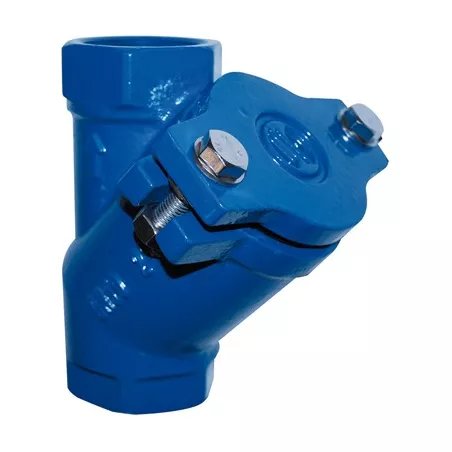

GJS-400-15 Cast Iron Ball Check Valve with Female BSP Thread 1" (26/34)

Clapet à boule
Clapet de non-retour fonte système à boule en GJS-400-15
search
  • Clapet de non-retour fonte système à boule en GJS-400-15
  • NOMENCLATURE 331
  • DIMENSIONS ( en mm ) 331
  • POSITIONS DE MONTAGE 331
  • DIAGRAMME PERTES DE CHARGES 331

Photos non contractuelles

GJS-400-15 Cast Iron Ball Check Valve with BSP Female Thread for Pumping Station

Application:

  • Water supply, distribution, and wastewater discharge networks, including systems handling contaminated or viscous fluids
  • Minimum permissible temperature Ts: -10°C
  • Maximum permissible temperature Ts: +80°C
  • Maximum permissible pressure Ps: 10 bar

Available in:

  • Female/female cylindrical BSP threaded from DN 1" to 3"

Follow the flow direction indicated on the body by an arrow CCPU
3.1 certificate: click here

Plus de détails
Type de raccordement : Á visser BSP (pas du gaz)1
1" (26/34)
Are you an individual?
Are you a professional?

Log in to find out your discount.

€70.75 Tax included

58.96 € tax excl.

Unité de vente : Pièce
33100F000BFF025
Diameter (in inches): 1" (26/34)
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Certificates materials pour GJS-400-15 Cast Iron Ball Check Valve with Female BSP Thread

Would you like to order materials that require a material certificate?

Here are the steps to follow :

1. Add product to cart.

2. Vérifiez que la référence produit actuellement sélectionnée corresponde au produit concerné et ajoutez au panier le material certificate desired).

Currently selected product reference : --

Complément d'information GJS-400-15 Cast Iron Ball Check Valve with Female BSP Thread

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Features:

  • Ball valve
  • Vertical installation with upward or horizontal flow (follow the flow direction indicated by an arrow on the body)
  • Female/female BSP
  • Inspection hatch for easy maintenance
  • Blue RAL 5005 epoxy powder coating, 250-micron thickness, corrosion-resistant
  • Corrosion-resistant stainless steel fasteners

Construction:

  • Body and access hatch: EN GJS-400-15 cast iron
  • Ball material
    :- NBR from DN1" to DN1"1/2
    .- NBR-coated aluminum from DN2" to DN3"
  • Epoxy paint.
  • ASTM A182 F304 stainless steel fasteners.
  • Dimensions: DN 1" to 3"
  • Connection: BSP female threaded
  • Material: Cast iron

Standards:

  • DIRECTIVE 97/23/EC: Products excluded from the directive (Article 1, § 3.2)
  • BSP female cylindrical thread in accordance with ISO 228-1
  • Body testing in accordance with ISO 5208, Class A

Nominal Ø 1" 1-1/4" 1-1/2" 2" 2 1/2" 3"
PS 10 10 10 10 10 10
Track width 141 141 150 175 214 248

Caractéristiques techniques GJS-400-15 Cast Iron Ball Check Valve with Female BSP Thread

Data sheet

Reference
33100F000BFF025
Type de clapet / filtre
Horizontal Système à boule Vertical avec fluide ascendant
Corps
EN GJS-400-15
Obturateur
NBR du 1" au 1"1/2 et Aluminium revêtu NBR du 2" au 3"
Entraxe
En fonction du modèle choisi
Type de raccordement
Á visser BSP (pas du gaz)
Raccordement
FF (femelle - femelle)
Diamètre
En fonction du modèle choisi
Pression de service
10B
Température minimum
-10°C
Température maximum
80°C
Fluide admissible
Fluides courants compatibles
Normalisation
Directive 97/23/CE : produits exclus (article 1, § 3.2)
Équipements
Boulonnerie inox A2 Peinture Epoxy
Possibilité de certificat 3.1
Oui
Unité de vente
Pièce
Garantie fabricant
1 an

Specific References

ean13
3598781161654

Download documentation

FT 331

Fiche technique Clapet de non-retour fonte système à boule en GJS-400-15 331

Download (918.12KB)

Accessoires et équipements (vendus séparément)

Caractéristiques liées à la version du produit GJS-400-15 Cast Iron Ball Check Valve with Female BSP Thread

Voici la liste des références et poids correspondants aux options séléctionnées.
33100F000BFF025 - GJS-400-15 Cast Iron Ball Check Valve with Female BSP Thread - 1" (26/34)
Diameter (in inches) 1" (26/34)
Packed weight 1,89kg
58.96 € tax excl.
Consulter
33100F000BFF032 - GJS-400-15 Cast Iron Ball Check Valve with Female BSP Thread - 1"1/4 (33/42)
Diameter (in inches) 1"1/4 (33/42)
Packed weight 2,1kg
62.76 € tax excl.
Consulter
33100F000BFF040 - GJS-400-15 Cast Iron Ball Check Valve with Female BSP Thread - 1"1/2 (40/49)
Diameter (in inches) 1"1/2 (40/49)
Packed weight 3,15kg
76.57 € tax excl.
Consulter
33100F000BFF050 - GJS-400-15 Cast Iron Ball Check Valve with Female BSP Thread - 2" (50/60)
Diameter (in inches) 2" (50/60)
Packed weight 5,04kg
96.2 € tax excl.
Consulter
33100F000BFF065 - GJS-400-15 Cast Iron Ball Check Valve with Female BSP Thread - 2"1/2 (66/76)
Diameter (in inches) 2"1/2 (66/76)
Packed weight 6,51kg
141.28 € tax excl.
Consulter
33100F000BFF080 - GJS-400-15 Cast Iron Ball Check Valve with Female BSP Thread - 3" (80/90)
Diameter (in inches) 3" (80/90)
Packed weight 12,6kg
217.56 € tax excl.
Consulter
Référence - Désignation Diameter (in inches) Packed weight Prix
33100F000BFF025 - GJS-400-15 Cast Iron Ball Check Valve with Female BSP Thread - 1" (26/34) 1" (26/34) 1,89kg 58.96 € tax excl.
33100F000BFF032 - GJS-400-15 Cast Iron Ball Check Valve with Female BSP Thread - 1"1/4 (33/42) 1"1/4 (33/42) 2,1kg 62.76 € tax excl.
33100F000BFF040 - GJS-400-15 Cast Iron Ball Check Valve with Female BSP Thread - 1"1/2 (40/49) 1"1/2 (40/49) 3,15kg 76.57 € tax excl.
33100F000BFF050 - GJS-400-15 Cast Iron Ball Check Valve with Female BSP Thread - 2" (50/60) 2" (50/60) 5,04kg 96.2 € tax excl.
33100F000BFF065 - GJS-400-15 Cast Iron Ball Check Valve with Female BSP Thread - 2"1/2 (66/76) 2"1/2 (66/76) 6,51kg 141.28 € tax excl.
33100F000BFF080 - GJS-400-15 Cast Iron Ball Check Valve with Female BSP Thread - 3" (80/90) 3" (80/90) 12,6kg 217.56 € tax excl.
