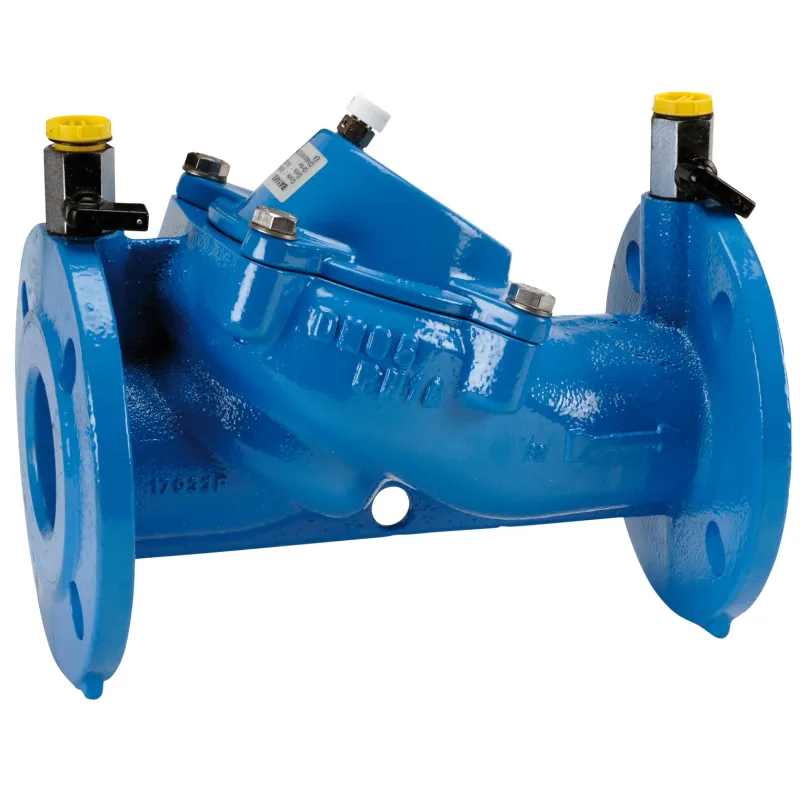

GJS-450-10 cast iron check valve with PN10/16 flanges

Application:

  • Protection of drinking water systems
  • Minimum permissible temperature Ts: +10°C
  • Maximum permissible temperature Ts: +60°C (maximum +90°C in the return line)
  • Maximum allowable pressure Ps: 16 bar

Available in:

  • R.F. PN10/16 flanges from DN 40 to DN 150

Follow the flow direction indicated on the body by an arrow

Plus de détails
Normes et certifications : Certification ACSNormes et certifications : NFNormes et certifications : AFAQ ISO 9001Type de raccordement : À brides EN1092-1 PN16Fluide admissible : Eau sanitaire et potable1
dn 40/50
Are you an individual?
Are you a professional?

Log in to find out your discount.

€1,127.50 Tax included

939.58 € tax excl.

Unité de vente : Pièce
34600F00PN16050
Diameter DN: DN 40/50
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information GJS-450-10 cast iron backflow prevention valve with PN10/16 flanges

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Operation:

The valve, pushed by its spring, creates a minimum pressure differential greater than 0.10 mWG, in accordance with standard NF P 43-017. Thus, during operation, the downstream pressure remains lower than the upstream pressure, even at zero flow, ensuring excellent sealing. If, for any reason—such as backpressure in the downstream system or accidental negative pressure in the upstream system—the pressure difference between upstream and downstream decreases, the shut-off mechanism closes and seals the system before the flow reverses. This preemptive closing mechanism gives the device anti-pollution properties.

Features:

  • Observe the flow direction (indicated on the body by an arrow)
  • Upstream and downstream pressure taps (DN 1/2" BSP valves)
  • Controllable
  • Low pressure drop
  • Inspection port
  • Epoxy coating by cataphoresis + powder

Construction:

  • Body and cover: EN GJS-450-10 cast iron
  • Epoxy coating
  • Bronze shutter
  • EPDM seal.
  • With two 1/2" BSP pressure taps
  • Dimensions: DN 40 to 150
  • Connection: PN10/16 R.F. flanges
  • Material: Cast iron body

Standards:

  • Manufactured in accordance with ISO 9001:2008
  • DIRECTIVE 97/23/EC: Products excluded from the directive (Article 1, § 3.2)
  • Sanitary Conformity Certificate (A.C.S.) No. 15 ACC LY 725
  • Compliant with standards NF P 43-017 and EN 13959
  • Check valves compliant with standard NF045 Technical documents No. 1 and 6
  • R.F. flanges in accordance with standard EN 1092-2 PN10/16
  • Spacing in accordance with standard EN 558 Series 1

Captive nut 40/50(1) 60/65 80(2) 100 150
PS 16 16 16 16 16
PN 10/16 10/16 10/16 10/16 10/16
Track gauge 230 290 310 350 480

(1): Also available with Ø 40 hole
(2): Double hole pattern (4/8 holes)

Caractéristiques techniques GJS-450-10 cast iron backflow prevention valve with PN10/16 flanges

Data sheet

Reference
34600F00PN16050
Type de clapet / filtre
Antipollution
Corps
Fonte EN GJS-450-10
Obturateur
Bronze
Joint
EPDM
Entraxe
En fonction du modèle choisi
Type de raccordement
À brides EN1092-1 PN16
Diamètre
En fonction du modèle choisi
Pression de service
16B
Température minimum
10°C
Température maximum
60°C
Fluide admissible
Eau sanitaire et potable
Normes et certifications
AFAQ ISO 9001 Certification ACS NF
Normalisation
Directive 2014/68/UE : produits exclus (article 1, § 2b)
Équipements
Bouchon Peinture Epoxy
Unité de vente
Pièce
Garantie fabricant
1 an

Specific References

ean13
3598781126486

Download documentation

FT 346

Fiche technique Clapet antipollution fonte en GJS-450-10 à brides PN10/16 346

Download (1.23MB)

NM clapets à brides

Notice montage clapets à brides

Download (38.79KB)

Accessoires et équipements (vendus séparément)

Caractéristiques liées à la version du produit GJS-450-10 cast iron backflow prevention valve with PN10/16 flanges

Voici la liste des références et poids correspondants aux options séléctionnées.
34600F00PN16050 - GJS-450-10 cast iron backflow prevention valve with PN10/16 flanges - DN 40/50
Diameter DN DN 40/50
Packed weight 9,45kg
939.58 € tax excl.
Consulter
34600F00PN16065 - GJS-450-10 cast iron backflow prevention valve with PN10/16 flanges - DN 60/65
Diameter DN DN 60/65
Packed weight 11,87235kg
974.29 € tax excl.
Consulter
34600F00PN16080 - GJS-450-10 cast iron backflow prevention valve with PN10/16 flanges - DN 80
Diameter DN DN 80
Packed weight 16,40625kg
1241.86 € tax excl.
Consulter
34600F00PN16100 - GJS-450-10 cast iron backflow prevention valve with PN10/16 flanges - DN 100
Diameter DN DN 100
Packed weight 21kg
1573.75 € tax excl.
Consulter
34600F00PN16150 - GJS-450-10 cast iron backflow prevention valve with PN10/16 flanges - DN 150
Diameter DN DN 150
Packed weight 40,95kg
3068.81 € tax excl.
Consulter
Référence - Désignation Diameter DN Packed weight Prix
34600F00PN16050 - GJS-450-10 cast iron backflow prevention valve with PN10/16 flanges - DN 40/50 DN 40/50 9,45kg 939.58 € tax excl.
34600F00PN16065 - GJS-450-10 cast iron backflow prevention valve with PN10/16 flanges - DN 60/65 DN 60/65 11,87235kg 974.29 € tax excl.
34600F00PN16080 - GJS-450-10 cast iron backflow prevention valve with PN10/16 flanges - DN 80 DN 80 16,40625kg 1241.86 € tax excl.
34600F00PN16100 - GJS-450-10 cast iron backflow prevention valve with PN10/16 flanges - DN 100 DN 100 21kg 1573.75 € tax excl.
34600F00PN16150 - GJS-450-10 cast iron backflow prevention valve with PN10/16 flanges - DN 150 DN 150 40,95kg 3068.81 € tax excl.
