Single-disc check valve, zinc-plated steel with NBR seat dn 40

Clapet anti retour simple battant
Clapet de non-retour simple battant acier zingué siège NBR
search
  • Clapet de non-retour simple battant acier zingué siège NBR
  • Schéma 351 364 365
  • NOMENCLATURE 351 364 365
  • DIMENSIONS MODELES ENTRE BRIDES PN16 ( en mm ) 351 364 365
  • POSITIONS DE MONTAGE 351 364 365
  • DIAGRAMME PERTES DE CHARGES 351 364 365

Photos non contractuelles

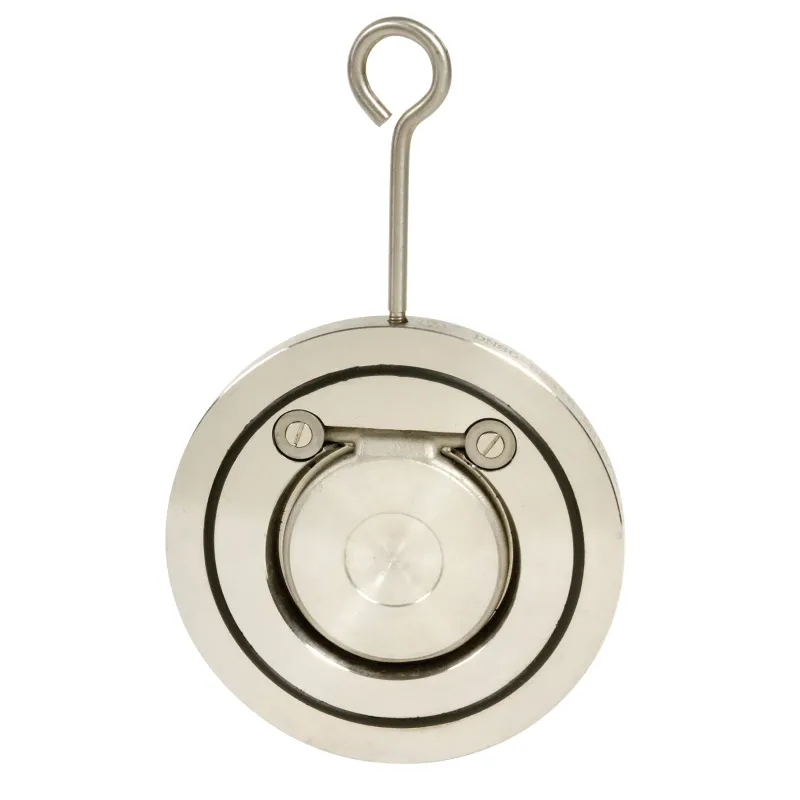

Single-disc check valve, zinc-plated steel with NBR seat

Applications:

  • Heating, water supply, distribution, and drainage systems for steel models
  • Minimum and maximum permissible temperature Ts: -10°C to +80°C for steel NBR models
  • Maximum allowable pressure Ps: 16 bar up to and including DN200 and 10 bar above
  • Do not use in pulsating flow
  • Max. velocity: 3 m/s

Available in:

  • Zinc-plated steel body with NBR seals, PN16 flange-to-flange mounting from DN40 to 300

Follow the flow direction indicated on the body by an arrow CCPU
3.1 certificate: click here

Plus de détails
Normes et certifications : ISO 9001 Bureau VERITASType de raccordement : Entre-brides PN161
dn 40
Are you an individual?
Are you a professional?

Log in to find out your discount.

€41.58 Tax included

34.65 € tax excl.

Unité de vente : Pièce
35100A00PN16040
Diameter DN: DN 40
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Certificates materials pour Single-disc check valve, zinc-plated steel with NBR seat

Would you like to order materials that require a material certificate?

Here are the steps to follow :

1. Add product to cart.

2. Vérifiez que la référence produit actuellement sélectionnée corresponde au produit concerné et ajoutez au panier le material certificate desired).

Currently selected product reference : --

Complément d'information Single-disc check valve, zinc-plated steel with NBR seat

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Features:

  • Single-disc check valve
  • Vertical installation with upward or horizontal flow (follow the flow direction indicated by an arrow on the body)
  • Installation between PN16 flanges

Construction:

  • Body and disc made of zinc-plated steel
  • NBR seat
  • Seal: NBR
  • Dimensions: DN 40 to 300
  • Connection: PN16 flanges
  • Material: Carbon steel

Standards:

  • Manufactured in accordance with ISO 9001:2008
  • Designed in accordance with API 594
  • Leak testing in accordance with API 598, Table 6
  • DIRECTIVE 97/23/EC: Excluded products (Article 1, § 3-2)
  • Spacing in accordance with EN 558 Series 97 (NF 29377)
  • Flange connection in accordance with EN 1092-1 PN16

Nominal Ø 40 50 65 80 100 125 150 200 250 300
PS 16 16 16 16 16 16 16 16 10 10
PN 16 16 16 16 16 16 16 16 16 16
Track gauge 14 14 14 14 18 18 20 22 26 32

Caractéristiques techniques Single-disc check valve, zinc-plated steel with NBR seat

Data sheet

Reference
35100A00PN16040
Type de clapet / filtre
Horizontal Système à simple battant Vertical avec fluide ascendant
Corps
Acier zingué
Obturateur
Acier zingué
Siège
NBR
Joint
NBR
Entraxe
En fonction du modèle choisi Écartement EN558 série 97
Type de raccordement
Entre-brides PN16
Diamètre
En fonction du modèle choisi
Pression de service
En fonction du modèle choisi
Température minimum
-10°C
Température maximum
80°C
Fluide admissible
Fluides courants compatibles
Normes et certifications
ISO 9001 Bureau VERITAS
Normalisation
Directive 2014/68/UE : produits exclus (article 1, § 2b)
Possibilité de certificat 3.1
Oui
Unité de vente
Pièce
Garantie fabricant
1 an

Specific References

ean13
3598781163894
