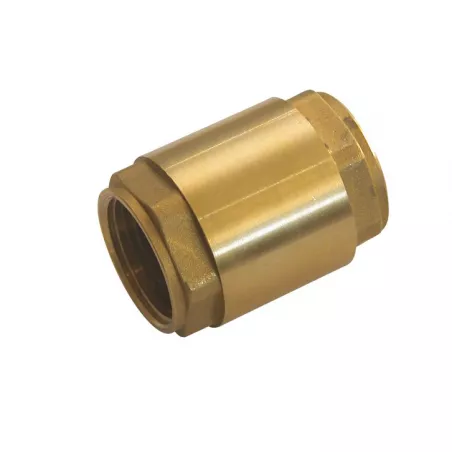

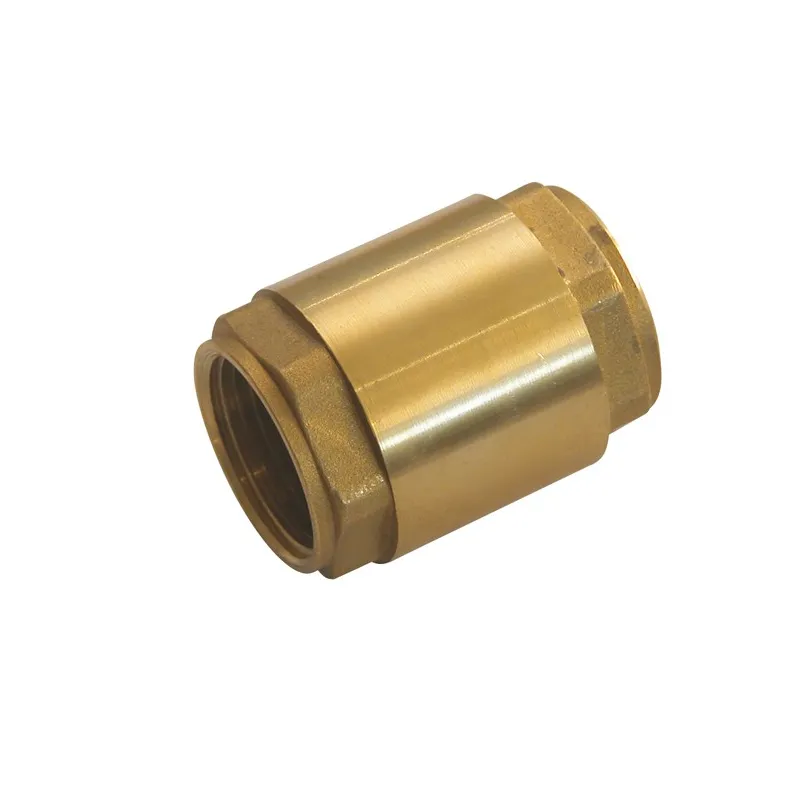

307 Check Valves, CW617N-grade brass, brass disc, all-position, female connection

Applications:

  • Heating, drinking water, compressed air, fuel oil
  • Minimum permissible temperature Ts: -10°C
  • Maximum permissible temperature Ts: +100°C
  • Maximum permissible pressure Ps: 25 bar up to DN 1", 18 bar from 1-1/4" to 2", and 12 bar above

Available with: Cylindrical BSP female threaded connection from DN 3/8" to DN 4"

Observe the flow direction indicated on the body by an arrow

Plus de détails
Normes et certifications : Certification ACSNormes et certifications : Certification IQNETType de raccordement : Á visser BSP (pas du gaz)Fluide admissible : Eau sanitaire et potable1
3/8" (12/17)
Are you an individual?
Are you a professional?

Log in to find out your discount.

€6.67 Tax included

5.56 € tax excl.

Unité de vente : Pièce
30700L000BFF010
Diameter (in inches): 3/8" (12/17)
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information Series 307 All-Position Double-Seated Check Valve

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Features:

  • Follow the flow direction (indicated on the body by an arrow)
  • All-position check valve
  • Female/female model
  • Brass plug
  • Dual axial and lateral guidance ensuring perfect centering of the plug on the seat
  • Low-pressure opening
  • Body made of CW617N brass for improved mechanical strength
  • 304 stainless steel return spring allowing installation in any position
  • Flat NBR seal ensuring excellent high/low-pressure sealing
  • Opening pressure between 20 and 200 mbar

Construction:

  • Brushed CW617N alloy brass body
  • Series 307 Shutter: CW614N-grade brass
  • NBR seal
  • Dimensions: DN 3/8" to 4"
  • Connection: Female BSP
  • Material: Brass

Standards:

  • Manufactured in accordance with ISO 9001:2008
  • DIRECTIVE 97/23/EC: Covers Article 3, § 3
  • Sanitary Conformity Certificate A.C.S. No. 12 ACC LY 133
  • Cylindrical BSP female thread in accordance with ISO 228-1

Nominal Ø 3/8" 1/2" 3/4" 1" 1 1/4" 1 1/2" 2" 2 1/2" 3" 4"
PS 25 25 25 25 18 18 18 12 12 12
Track gauge 41.5 47.5 51 58 64 71 79.5 94 102 123

Caractéristiques techniques Series 307 All-Position Double-Seated Check Valve

Data sheet

Reference
30700L000BFF010
Type de clapet / filtre
Système à double guidage Toutes positions
Corps
Laiton titré CW617N
Obturateur
Sphère laiton titré CW614N
Joint
NBR
Entraxe
En fonction du modèle choisi
Type de raccordement
Á visser BSP (pas du gaz)
Raccordement
FF (femelle - femelle)
Diamètre
En fonction du modèle choisi
Pression de service
En fonction du modèle choisi
Température minimum
-10°C
Température maximum
100°C
Fluide admissible
Air comprimé Eau Eau chauffage Eau glacée et climatisation Eau sanitaire et potable Mazout
Normes et certifications
Certification ACS Certification IQNET
Normalisation
Directive 97/23/CE : produits exclus (article 3, § 3)
Unité de vente
Pièce
Garantie fabricant
1 an

Specific References

ean13
3598781153383

Download documentation

FT 307

Fiche technique Clapet de non-retour série 307 toutes positions double guidage

Download (953.76KB)

Caractéristiques liées à la version du produit Series 307 All-Position Double-Seated Check Valve

Voici la liste des références et poids correspondants aux options séléctionnées.
30700L000BFF010 - Series 307 All-Position Double-Seated Check Valve - 3/8" (12/17)
Diameter (in inches) 3/8" (12/17)
Packed weight 0,11025kg
5.56 € tax excl.
Consulter
30700L000BFF015 - Series 307 All-Position Double-Seated Check Valve - 1/2" (15/21)
Diameter (in inches) 1/2" (15/21)
Packed weight 0,126kg
5.75 € tax excl.
Consulter
30700L000BFF020 - Series 307 All-Position Double-Seated Check Valve - 3/4" (20/27)
Diameter (in inches) 3/4" (20/27)
Packed weight 0,1806kg
7.61 € tax excl.
Consulter
30700L000BFF025 - Series 307 All-Position Double-Seated Check Valve - 1" (26/34)
Diameter (in inches) 1" (26/34)
Packed weight 0,2709kg
10.17 € tax excl.
Consulter
30700L000BFF032 - Series 307 All-Position Double-Seated Check Valve - 1"1/4 (33/42)
Diameter (in inches) 1"1/4 (33/42)
Packed weight 0,4053kg
15.8 € tax excl.
Consulter
30700L000BFF040 - Series 307 All-Position Double-Seated Check Valve - 1"1/2 (40/49)
Diameter (in inches) 1"1/2 (40/49)
Packed weight 0,56595kg
20.31 € tax excl.
Consulter
30700L000BFF050 - Series 307 All-Position Double-Seated Check Valve - 2" (50/60)
Diameter (in inches) 2" (50/60)
Packed weight 0,93975kg
29.87 € tax excl.
Consulter
30700L000BFF065 - Series 307 All-Position Double-Seated Check Valve - 2"1/2 (66/76)
Diameter (in inches) 2"1/2 (66/76)
Packed weight 1,6212kg
62.95 € tax excl.
Consulter
30700L000BFF080 - Series 307 All-Position Double-Seated Check Valve - 3" (80/90)
Diameter (in inches) 3" (80/90)
Packed weight 2,15775kg
88.53 € tax excl.
Consulter
30700L000BFF100 - Series 307 All-Position Double-Seated Check Valve - 4" (102/114)
Diameter (in inches) 4" (102/114)
Packed weight 3,3873kg
139.65 € tax excl.
Consulter
Référence - Désignation Diameter (in inches) Packed weight Prix
30700L000BFF010 - Series 307 All-Position Double-Seated Check Valve - 3/8" (12/17) 3/8" (12/17) 0,11025kg 5.56 € tax excl.
30700L000BFF015 - Series 307 All-Position Double-Seated Check Valve - 1/2" (15/21) 1/2" (15/21) 0,126kg 5.75 € tax excl.
30700L000BFF020 - Series 307 All-Position Double-Seated Check Valve - 3/4" (20/27) 3/4" (20/27) 0,1806kg 7.61 € tax excl.
