Series 317 All-Position Check Valve with Male-Female Double Seats 3/8" (12/17)

Clapet anti retour toutes positions à double guidage
Clapet de non-retour série 317toutes positions double guidage mâle-femelle
search
  • Clapet de non-retour série 317toutes positions double guidage mâle-femelle
  • NOMENCLATURE 316 317 328
  • DIMENSIONS MODELE MALE – FEMELLE 317
  • DIAGRAMME PERTES DE CHARGES 316 317 328

Photos non contractuelles

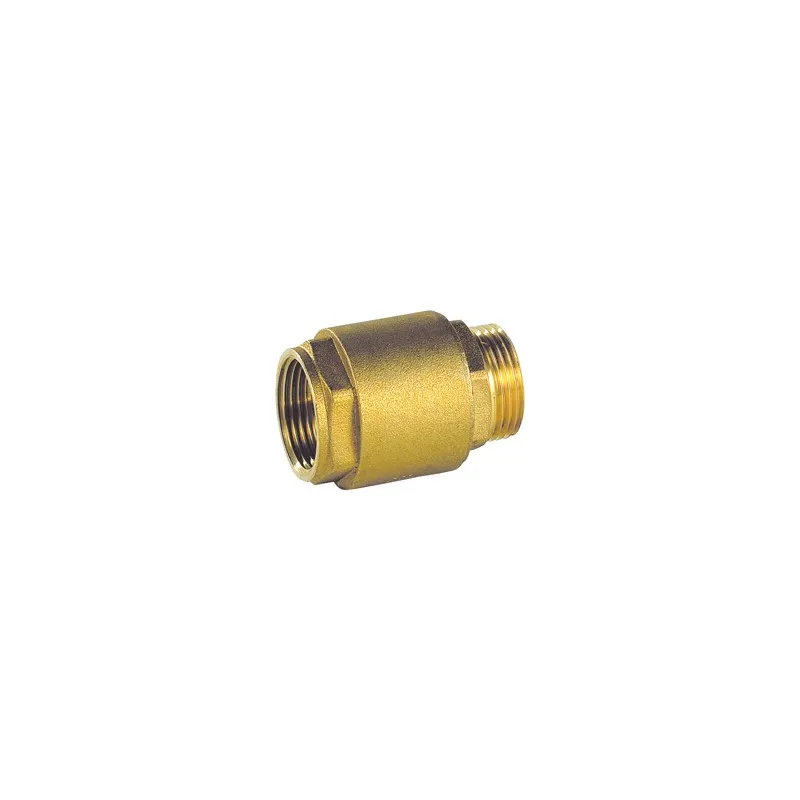

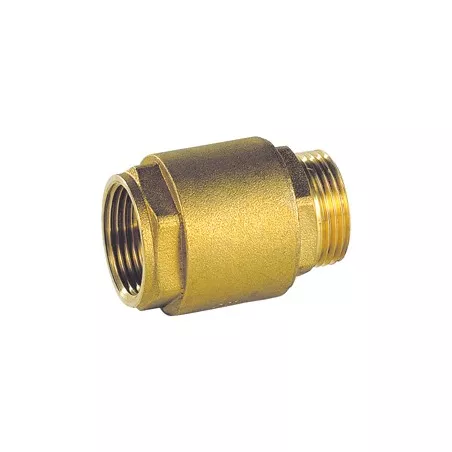

317 brass check valves (CW617N grade), nylon disc, all-position, male-female connection

Applications:

  • Heating, drinking water, hot water, cold water
  • Minimum permissible temperature Ts: -10°C
  • Maximum permissible temperature Ts: +110°C
  • Maximum allowable pressure Ps: 16 bar

Available in: Male-Female BSP models from DN 3/8" to DN 1"

Follow the flow direction indicated on the body by an arrow

Plus de détails
Normes et certifications : Certification ACSNormes et certifications : ISO 9001 DNVType de raccordement : Á visser BSP (pas du gaz)Fluide admissible : Eau sanitaire et potable1
3/8" (12/17)
Are you an individual?
Are you a professional?

Log in to find out your discount.

€11.58 Tax included

9.65 € tax excl.

Unité de vente : Pièce
31700L000BMF010
Diameter (in inches): 3/8" (12/17)
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information Series 317 All-Position Check Valve with Male-Female Double Seats

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Features:

  • Follow the flow direction (indicated on the body by an arrow)
  • Cylindrical BSP thread
  • Nylon plug
  • Dual axial and lateral guidance ensuring perfect centering of the plug on the seat
  • Low-pressure opening
  • Body made of CW617N brass for improved mechanical strength
  • 302 stainless steel return spring allowing installation in any position
  • Flat NBR seal ensuring excellent high/low-pressure sealing

Construction:

  • Brushed CW617N brass body
  • Nylon plug
  • NBR seal
  • Dimensions: DN 3/8" to 1"
  • Connection: BSP male-female
  • Material: Brass body

Standards:

  • Manufactured in accordance with ISO 9001:2008
  • DIRECTIVE 97/23/EC: Products excluded from the directive (Article 1, § 3.2)
  • Sanitary Conformity Certificate A.C.S. No. 15 ACC LY 737
  • Cylindrical BSP female thread and cylindrical BSP male thread in accordance with ISO 228-1

Nominal Ø 3/8" 1/2" 3/4" 1"
PS 16 16 16 16
Track gauge 51 53 59 66

Caractéristiques techniques Series 317 All-Position Check Valve with Male-Female Double Seats

Data sheet

Reference
31700L000BMF010
Type de clapet / filtre
Système à double guidage Toutes positions
Corps
Laiton titré CW617N
Obturateur
Nylon
Joint
NBR
Entraxe
En fonction du modèle choisi
Type de raccordement
Á visser BSP (pas du gaz)
Raccordement
MF (mâle - femelle)
Diamètre
En fonction du modèle choisi
Pression de service
En fonction du modèle choisi
Température minimum
-10°C
Température maximum
110°C
Fluide admissible
Eau Eau chauffage Eau glacée et climatisation Eau sanitaire et potable
Normes et certifications
Certification ACS ISO 9001 DNV
Normalisation
Directive 2014/68/UE : produits exclus (article 1, § 2b)
Unité de vente
Pièce
Garantie fabricant
1 an

Specific References

ean13
8029437001918

Download documentation

FT 317

Fiche technique clapet non retour double guidage laiton 4MS mâle femelle

Download (696KB)
