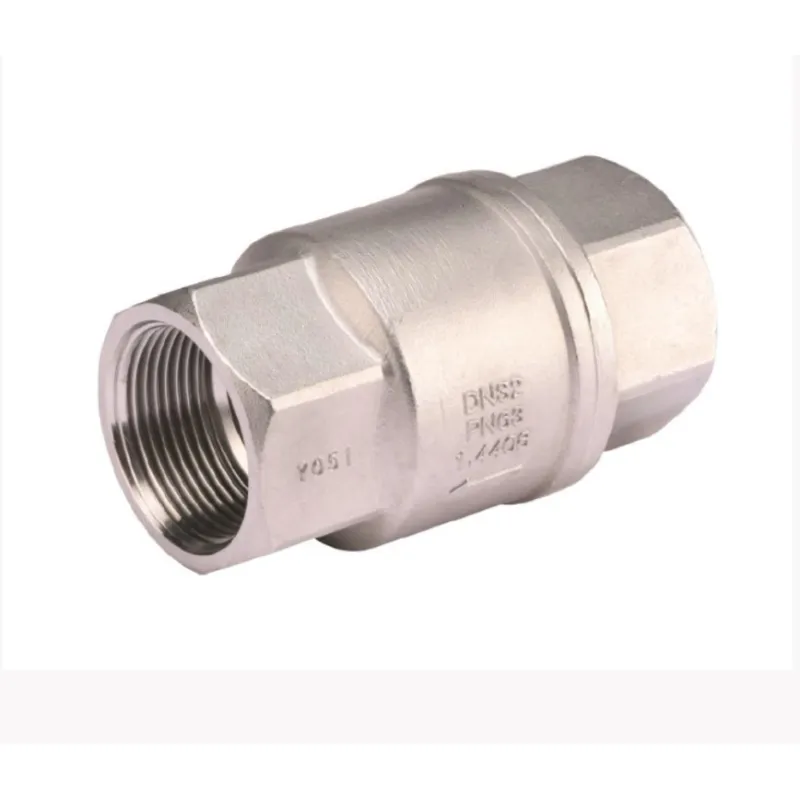

Series 329 Stainless Steel Disc Check Valve 1/4" (8/13)

Clapet anti retour toutes positions à double guidage
Clapet de non-retour série 329
search
  • Clapet de non-retour série 329
  • Clapet de non-retour série 329
  • Clapet de non-retour série 329 NOMENCLATURE
  • Clapet de non-retour série 329 DIMENSIONS ( en mm )
  • Clapet de non-retour série 329 COURBE PRESSION - TEMPERATURE
  • Clapet de non-retour série 329 DIAGRAMME PERTES DE CHARGES
  • Clapet de non-retour série 329 PRESSION D’OUVERTURE ( en mbar )

Photos non contractuelles

329 Check Valves, A351 CF8M stainless steel disc, all-position, female-to-female connection

Applications:

  • Chemical, pharmaceutical, and petrochemical industries; hydraulic systems; compressed air; water
  • Minimum permissible temperature Ts: -20°C
  • Maximum permissible temperature Ts: +200°C
  • Maximum permissible pressure Ps: 63 bar (see curve below)
  • Steam: 14 bar max

Available as: 2-piece disc valve, female/female with cylindrical BSP threads, from DN 1/4" to DN 2"

Follow the flow direction indicated on the body by an arrow

Plus de détails
Normes et certifications : TUV ISO 9001Type de raccordement : Á visser BSP (pas du gaz)1
1/4" (8/13)
Are you an individual?
Are you a professional?

Log in to find out your discount.

€66.18 Tax included

55.15 € tax excl.

Unité de vente : Pièce
32900L000BFF008
Diameter (in inches): 1/4" (8/13)
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Certificates materials pour Series 329 Stainless Steel Disc Check Valve

Would you like to order materials that require a material certificate?

Here are the steps to follow :

1. Add product to cart.

2. Vérifiez que la référence produit actuellement sélectionnée corresponde au produit concerné et ajoutez au panier le material certificate desired).

Currently selected product reference : --

Complément d'information Series 329 Stainless Steel Disc Check Valve

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Features:

  • 2-piece disc valve
  • Can be installed in any position (follow the flow direction indicated by an arrow on the body)
  • Compact design
  • 15% glass-filled PTFE seal

Construction:

  • Disc valve
  • All positions
  • 15% glass-filled PTFE seal
  • Max. temperature: +200°C
  • Minimum temperature: -20°C
  • Sizes: DN 1/4" to 2"
  • Connection: Female-Female BSP
  • Material: Stainless steel EN 1.4408

Standards:

  • Manufactured in accordance with ISO 9001:2015
  • DIRECTIVE 2014/68/EU: Products excluded from the directive (Article 4, § 3)
  • Certificate 3.1 upon request
  • Leak testing in accordance with API 598, Table 6
  • Cylindrical BSP threaded connections in accordance with ISO 228-1

DN 1/4" 3/8" 1/2" 3/4" 1" 1-1/4" 1-1/2" 2"
Ø d 10 10 15 20 25 32 40 50
Ø D 34.3 34.3 34.3 46 54 62.5 73.5 127
L 58.7 58.7 58.7 72.9 88.9 106.2 126.5 2.2

Caractéristiques techniques Series 329 Stainless Steel Disc Check Valve

Data sheet

Reference
32900L000BFF008
Type de clapet / filtre
Système à double guidage Toutes positions
Corps
Inox ASTM A351 CF8M
Obturateur
Inox ASTM A351 CF8M
Type de raccordement
Á visser BSP (pas du gaz)
Raccordement
FF (femelle - femelle)
Diamètre
En fonction du modèle choisi
Pression de service
En fonction du modèle choisi
Température minimum
-20°C
Température maximum
200°C
Fluide admissible
Eau Industries chimiques Industries pharmaceutiques Industries pétrochimiques Installations hydrauliques
Normes et certifications
TUV ISO 9001 Test d'étanchéité API 598
Normalisation
Directive 2014/68/UE
Possibilité de certificat 3.1
Oui
Unité de vente
Pièce
Garantie fabricant
1 an

Download documentation

FT 329

Fiche technique clapet non retour série 329

Download (938.64KB)

Caractéristiques liées à la version du produit Series 329 Stainless Steel Disc Check Valve

Voici la liste des références et poids correspondants aux options séléctionnées.
32900L000BFF008 - Series 329 Stainless Steel Disc Check Valve - 1/4" (8/13)
Diameter (in inches) 1/4" (8/13)
Packed weight 0,189kg
55.15 € tax excl.
Consulter
32900L000BFF010 - Series 329 Stainless Steel Disc Check Valve - 3/8" (12/17)
Diameter (in inches) 3/8" (12/17)
Packed weight 0,1785kg
55.15 € tax excl.
Consulter
32900L000BFF015 - Series 329 Stainless Steel Disc Check Valve - 1/2" (15/21)
Diameter (in inches) 1/2" (15/21)
Packed weight 0,1995kg
64.97 € tax excl.
Consulter
32900L000BFF020 - Series 329 Stainless Steel Disc Check Valve - 3/4" (20/27)
Diameter (in inches) 3/4" (20/27)
Packed weight 0,42kg
75.3 € tax excl.
Consulter
32900L000BFF025 - Series 329 Stainless Steel Disc Check Valve - 1" (26/34)
Diameter (in inches) 1" (26/34)
Packed weight 0,63kg
95.29 € tax excl.
Consulter
32900L000BFF032 - Series 329 Stainless Steel Disc Check Valve - 1"1/4 (33/42)
Diameter (in inches) 1"1/4 (33/42)
Packed weight 1,05kg
258.41 € tax excl.
Consulter
32900L000BFF040 - Series 329 Stainless Steel Disc Check Valve - 1"1/2 (40/49)
Diameter (in inches) 1"1/2 (40/49)
Packed weight 1,575kg
311.51 € tax excl.
Consulter
32900L000BFF050 - Series 329 Stainless Steel Disc Check Valve - 2" (50/60)
Diameter (in inches) 2" (50/60)
Packed weight 2,31kg
441.22 € tax excl.
Consulter
Référence - Désignation Diameter (in inches) Packed weight Prix
32900L000BFF008 - Series 329 Stainless Steel Disc Check Valve - 1/4" (8/13) 1/4" (8/13) 0,189kg 55.15 € tax excl.
32900L000BFF010 - Series 329 Stainless Steel Disc Check Valve - 3/8" (12/17) 3/8" (12/17) 0,1785kg 55.15 € tax excl.
32900L000BFF015 - Series 329 Stainless Steel Disc Check Valve - 1/2" (15/21) 1/2" (15/21) 0,1995kg 64.97 € tax excl.
32900L000BFF020 - Series 329 Stainless Steel Disc Check Valve - 3/4" (20/27) 3/4" (20/27) 0,42kg 75.3 € tax excl.
32900L000BFF025 - Series 329 Stainless Steel Disc Check Valve - 1" (26/34) 1" (26/34) 0,63kg 95.29 € tax excl.
32900L000BFF032 - Series 329 Stainless Steel Disc Check Valve - 1"1/4 (33/42) 1"1/4 (33/42) 1,05kg 258.41 € tax excl.
32900L000BFF040 - Series 329 Stainless Steel Disc Check Valve - 1"1/2 (40/49) 1"1/2 (40/49) 1,575kg 311.51 € tax excl.
32900L000BFF050 - Series 329 Stainless Steel Disc Check Valve - 2" (50/60) 2" (50/60) 2,31kg 441.22 € tax excl.
