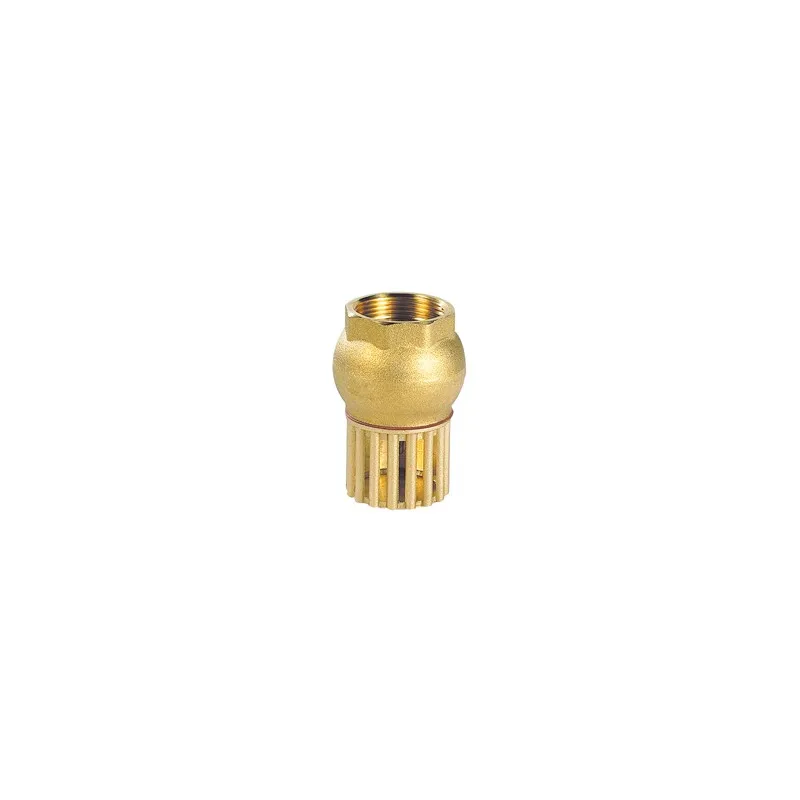

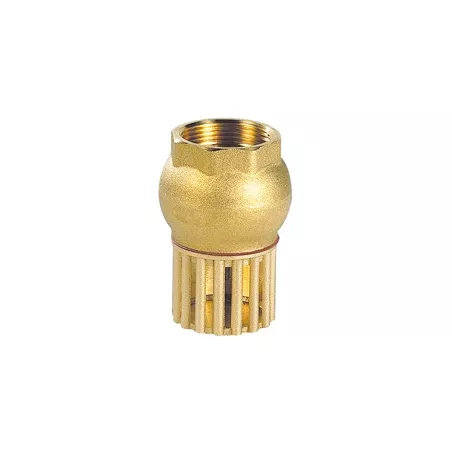

All-brass check valve, CW617N, female BSP 2"1/2 (66/76)

Clapet pied de crépine
Clapet crépine de non-retour tout laiton titré CW617N femelle BSP
search
  • Clapet crépine de non-retour tout laiton titré CW617N femelle BSP
  • NOMENCLATURE 304
  • DIMENSIONS ( en mm ) 304
  • POSITIONS DE MONTAGE 304

Photos non contractuelles

CW617N-grade all-brass double-seated check valve with female BSP thread

Application:

  • Water supply, distribution, and drainage systems
  • Minimum permissible temperature Ts: +0°C
  • Maximum permissible temperature Ts: +90°C
  • Maximum allowable pressure PN: 10 bar up to DN 1", 8 bar from 1-1/4" to 2", and 6 bar above

Available with: Cylindrical BSP female threaded connection from DN 1/2" to DN 4"

Observe the flow direction indicated on the body by an arrow
