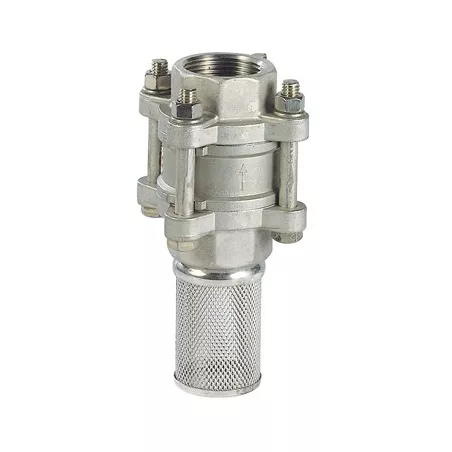

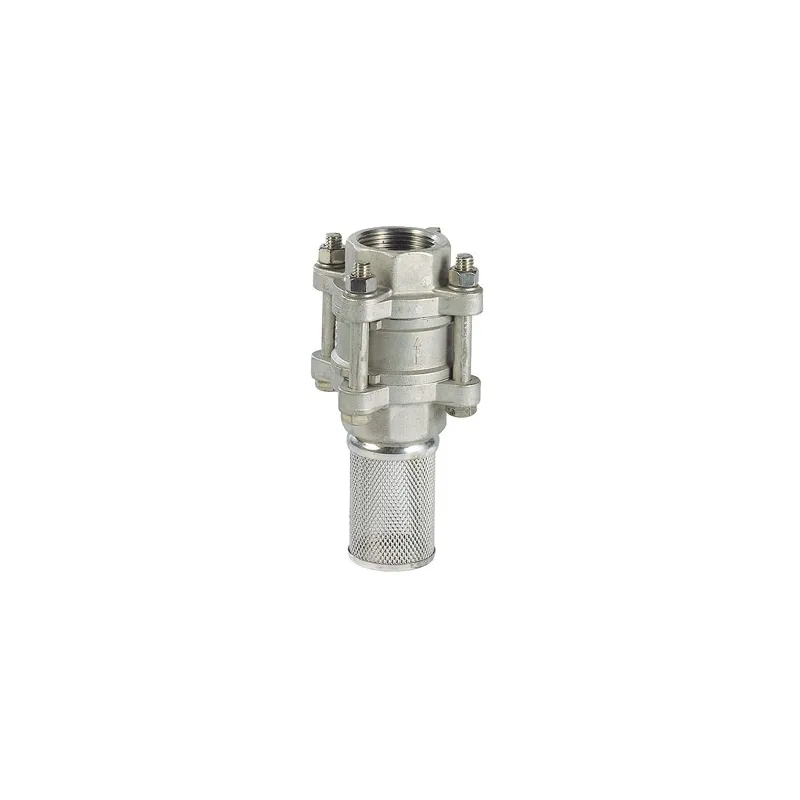

3-piece all-stainless steel disc-type check valve, female-female-female BSP

Applications:

  • Chemical and pharmaceutical industries, petrochemical industries, hydraulic systems, compressed air
  • Minimum permissible temperature Ts: -20°C
  • Maximum permissible temperature Ts: +200°C
  • Maximum allowable pressure Ps: 63 bar (see curve below)

Available in:

  • Female BSP cylindrical thread with 316 stainless steel strainer, Ref. 38300, from DN 3/8" to DN 4" (Ref. 38000 + Ref. 39100)

Follow the flow direction indicated on the body by an arrow CCPU
3.1 Certificate: click here

Plus de détails
Normes et certifications : CENormes et certifications : ATEXNormes et certifications : TUV PED 97/23/CENormes et certifications : ISO 9001 : 2008 Bureau VéritasType de raccordement : Á visser BSP (pas du gaz)1
3/8" (12/17)
Are you an individual?
Are you a professional?

Log in to find out your discount.

€92.78 Tax included

77.32 € tax excl.

Unité de vente : Pièce
38300I0000BF010
Diameter (in inches): 3/8" (12/17)
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Certificates materials pour 3-piece all-stainless-steel female-to-female disc-type check valve

Would you like to order materials that require a material certificate?

Here are the steps to follow :

1. Add product to cart.

2. Vérifiez que la référence produit actuellement sélectionnée corresponde au produit concerné et ajoutez au panier le material certificate desired).

Currently selected product reference : --

Complément d'information 3-piece all-stainless-steel female-to-female disc-type check valve

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Features:

  • 3-piece disc valve
  • Can be installed in any position (follow the flow direction indicated by an arrow on the body)
  • Metal-to-metal sealing
  • All stainless steel

Construction:

  • Body: ASTM A351 CF8M stainless steel
  • Strainer: ASTM A182 F316 stainless steel
  • Spring: 316 stainless steel
  • Dimensions: 3/8" to 4"
  • Connection: Female BSP
  • Material: Stainless Steel

Standards:

  • Manufactured in accordance with ISO 9001:2008
  • DIRECTIVE 97/23/EC: CE No. 0035 Risk
    Category III Module H
  • Manufactured in accordance with EN 12516-1
  • Designed in accordance with ASME B16.34
  • Leak testing in accordance with API 598, Table 6
  • Cylindrical BSP threaded connections in accordance with ISO 228-1
  • ATEX Group II Category 2 G/2D Zone 1 & 21 Zone 2 & 22 (optional marking)

Nominal Ø 3/8" 1/2" 3/4" 1" 1 1/4" 1-1/2" 2" 2 1/2" 3" 4"
PS 63 63 63 63 63 63 63 63 63 63
Mesh (mm) 12/10 12/10 12/10 12/10 12/10 12/10° 12/10 15/10 15/10 20/10°

Caractéristiques techniques 3-piece all-stainless-steel female-to-female disc-type check valve

Data sheet

Reference
38300I0000BF010
Type de clapet / filtre
Système à disque - Vertical
Crépine / tamis
Inox ASTM A182 F316
Maille et filtration
En fonction du modèle choisi
Corps
Inox ASTM A351 CF8M
Obturateur
Inox ASTM A182 F316 - Ressort inox 316
Joint
PTFE
Entraxe
En fonction du modèle choisi
Type de raccordement
Á visser BSP (pas du gaz)
Raccordement
Femelle
Diamètre
En fonction du modèle choisi
Pression de service
63B
Température minimum
-20°C
Température maximum
200°C
Fluide admissible
Fluides courants compatibles - Industries chimiques - Industries pharmaceutiques - Industries pétrochimiques - Installations hydrauliques
Normes et certifications
ATEX - CE - ISO 9001 : 2008 Bureau Véritas - TUV PED 97/23/CE
Normalisation
Directive 2014/68/UE
Possibilité de certificat 3.1
Oui
Unité de vente
Pièce
Garantie fabricant
1 an

Specific References

ean13
3598781126776

Download documentation

FT 382

Fiche technique clapet non retour 3 pièces inox à disque à souder SW ACS

Download (1.01MB)

NM clapet à disque inox
