MF 1" brass single-port flat manifold with M 1/2" connection and F 3/8" bleed port 3 dérivations

Collecteur hydrodistribution

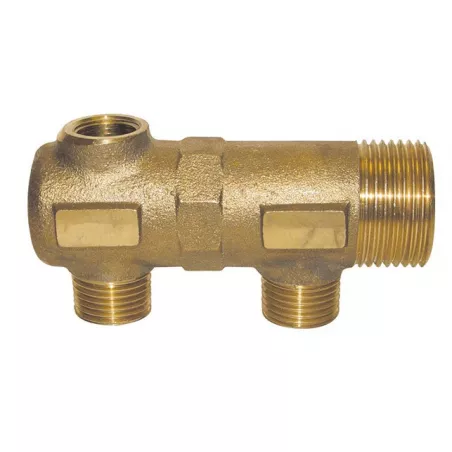

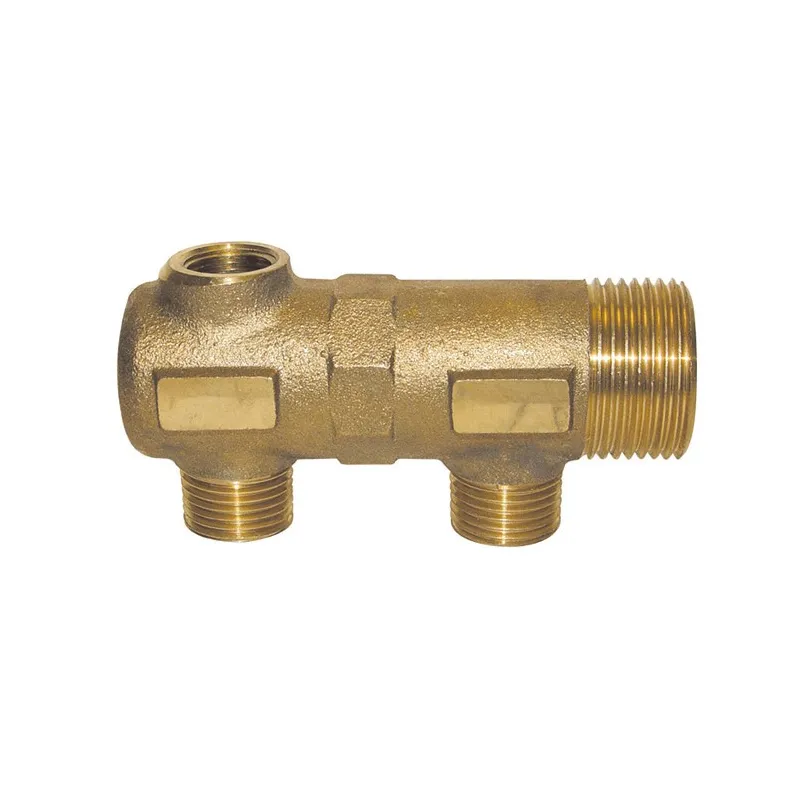

Collecteur simple portée plate MF 1" laiton M 1/2" avec prise de purge F 3/8"
search
  • Collecteur simple portée plate MF 1" laiton M 1/2" avec prise de purge F 3/8"
  • Dimension Collecteur simple portée plate MF 1" laiton M 1/2" avec prise de purge F 3/8"

Photos non contractuelles

SIMPP 1" Single Hydrodistribution Manifold with 3/8" Drain Port

Description:

Single brass distribution manifold for plumbing systems, hexagonal 6-sided, with drain port, marking flat, flat face. Compatible with the following models: COLCAL, CCOMFL, and COLMPL

Supplied with barcode label
Marking flat

Plus de détails
Normes et certifications : Certification ACSType de raccordement : Á visser BSP (pas du gaz)Fluide admissible : Eau sanitaire et potable1
3 dérivations
Are you an individual?
Are you a professional?

Log in to find out your discount.

€17.66 Tax included

14.72 € tax excl.

Unité de vente : Pièce
SIMPPL003F25M15
Nombre de dérivations: 3 dérivations
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information MF 1" brass single-port flat manifold with M 1/2" connection and F 3/8" bleed port

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Technical specifications:

  • Maximum operating pressure: 6 bar
  • Maximum temperature: 90°C
  • Manifold diameter: 1"
  • Outlets: 1/2"
  • Drain port: 3/8"
  • Center-to-center distance: 50 mm
Compatible bracket part number: SPCCPO000000F25
Select this part number from the bracket drop-down menu: click here

Body diameter between 30 and 32 mm: See technical data sheet

A “hydraulically wired” installation allows, among other things, hydraulic independence between the various tap points served. To make the most of this feature, we believe it is essential to be able to isolate each circuit individually (click here).

Caractéristiques techniques MF 1" brass single-port flat manifold with M 1/2" connection and F 3/8" bleed port

Data sheet

Reference
SIMPPL003F25M15
Matière
Laiton
Nombre de piquages
En fonction du modèle choisi
Entraxe
50 mm
Type de raccordement
Á visser BSP (pas du gaz)
Raccordement
Mâle
Diamètre
1" 1/2"
Pression maximum
6 bar
Température maximum
90°C
Fluide admissible
Eau chauffage Eau glacée et climatisation Eau sanitaire et potable
Normes et certifications
Certification ACS
Équipements
Piquage pour purgeur 3/8"
Unité de vente
Pièce
Garantie fabricant
1 an

Specific References

ean13
3519610016631

Download documentation

Fiche technique FT53-V1

Fiche technique Collecteur Hydrodistribution simple SIMPP 1" avec prise de purge 3/8" FT53-V1

Download (336.49KB)

Caractéristiques liées à la version du produit MF 1" brass single-port flat manifold with M 1/2" connection and F 3/8" bleed port

Voici la liste des références et poids correspondants aux options séléctionnées.
SIMPPL002F25M15 - MF 1" brass single-port flat manifold with M 1/2" connection and F 3/8" bleed port - 2 dérivations
Nombre de dérivations 2 dérivations
Packed weight 0,3108kg
9.65 € tax excl.
Consulter
SIMPPL003F25M15 - MF 1" brass single-port flat manifold with M 1/2" connection and F 3/8" bleed port - 3 dérivations
Nombre de dérivations 3 dérivations
Packed weight 0,4662kg
14.72 € tax excl.
Consulter
SIMPPL004F25M15 - MF 1" brass single-port flat manifold with M 1/2" connection and F 3/8" bleed port - 4 dérivations
Nombre de dérivations 4 dérivations
Packed weight 0,60375kg
18.62 € tax excl.
Consulter
SIMPPL005F25M15 - MF 1" brass single-port flat manifold with M 1/2" connection and F 3/8" bleed port - 5 dérivations
Nombre de dérivations 5 dérivations
Packed weight 0,7665kg
22.17 € tax excl.
Consulter
SIMPPL006F25M15 - MF 1" brass single-port flat manifold with M 1/2" connection and F 3/8" bleed port - 6 dérivations
Nombre de dérivations 6 dérivations
Packed weight 0,9114kg
24.64 € tax excl.
Consulter
SIMPPL007F25M15 - MF 1" brass single-port flat manifold with M 1/2" connection and F 3/8" bleed port - 7 dérivations
Nombre de dérivations 7 dérivations
Packed weight 1,08465kg
32.73 € tax excl.
Consulter
SIMPPL008F25M15 - MF 1" brass single-port flat manifold with M 1/2" connection and F 3/8" bleed port - 8 dérivations
Nombre de dérivations 8 dérivations
Packed weight 1,24005kg
35.98 € tax excl.
Consulter
SIMPPL009F25M15 - MF 1" brass single-port flat manifold with M 1/2" connection and F 3/8" bleed port - 9 dérivations
Nombre de dérivations 9 dérivations
Packed weight 1,39545kg
43.71 € tax excl.
Consulter
Référence - Désignation Nombre de dérivations Packed weight Prix
SIMPPL003F25M15 - MF 1" brass single-port flat manifold with M 1/2" connection and F 3/8" bleed port - 3 dérivations 3 dérivations 0,4662kg 14.72 € tax excl.
SIMPPL004F25M15 - MF 1" brass single-port flat manifold with M 1/2" connection and F 3/8" bleed port - 4 dérivations 4 dérivations 0,60375kg 18.62 € tax excl.
SIMPPL005F25M15 - MF 1" brass single-port flat manifold with M 1/2" connection and F 3/8" bleed port - 5 dérivations 5 dérivations 0,7665kg 22.17 € tax excl.
SIMPPL006F25M15 - MF 1" brass single-port flat manifold with M 1/2" connection and F 3/8" bleed port - 6 dérivations 6 dérivations 0,9114kg 24.64 € tax excl.
