Modular brass manifold with tapered ports, 1/2" male outlet 3/4" (20/27) 2 sorties

Collecteurs composable et raccords
Collecteur composable laiton portées coniques sortie 1/2" M
search
  • Collecteur composable laiton portées coniques sortie 1/2" M

Photo non contractuelle

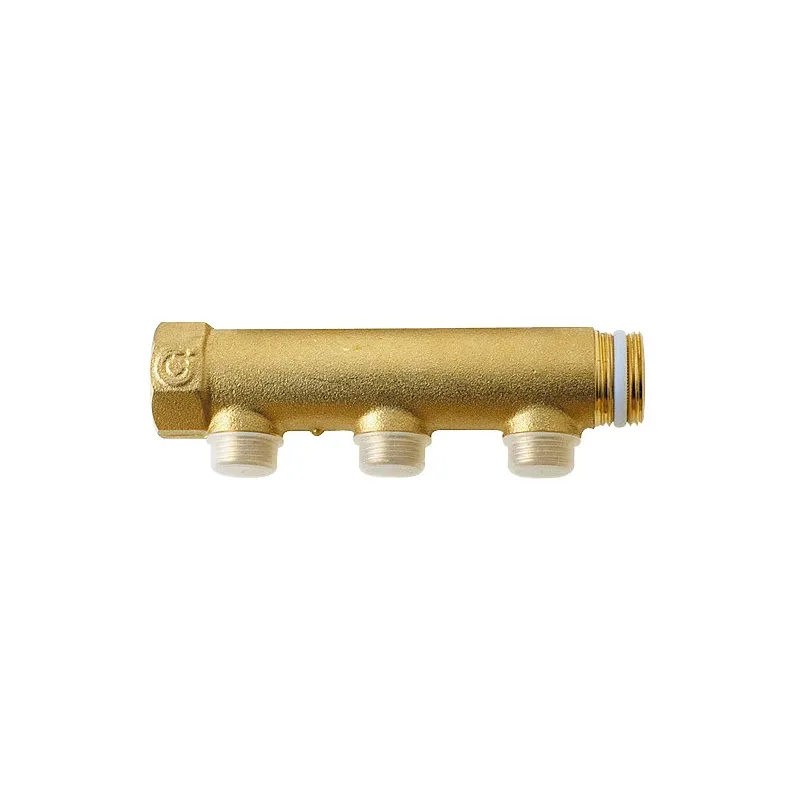

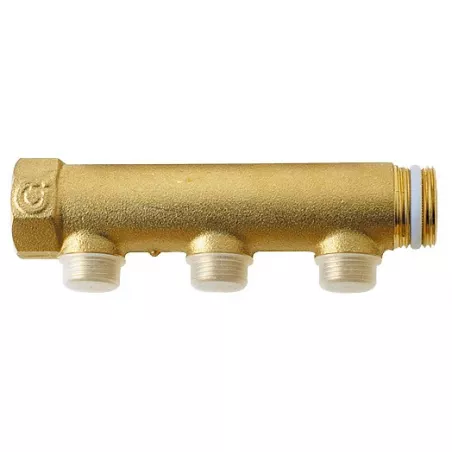

Modular brass manifold with tapered ports and 1/2" male outlet for heating and plumbing.

1/2" male outlets, conical threads, for compression fittings.

  • For C+ fittings and 591 fittings.
  • Max. operating pressure: 10 bar.
  • Temperature range: -10 / +110 °C.

NOTE: Fittings are mounted directly onto the manifold outlets.

Plus de détails
Normes et certifications : Certification ACSType de raccordement : Á visser BSP (pas du gaz)Fluide admissible : Eau sanitaire et potable1
3/4" (20/27) 2 sorties
Are you an individual?
Are you a professional?

Log in to find out your discount.

-- Tax included

--

Unité de vente : Pièce
COLCPLF20S02M15
Type of outputs: 2 sorties
Diameter (in inches): 3/4" (20/27)
Quantity
Product available with different options

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information Modular brass manifold with tapered ports, 1/2" male outlet

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.
Compatible bracket part number: SPCCPO000000F25
Select this part number from the bracket drop-down menu: click here

A “hydraulically wired” installation allows, among other things, hydraulic independence between the various draw-off points served. To make the most of this feature, we believe it is essential to be able to isolate each circuit individually (click here).

Caractéristiques techniques Modular brass manifold with tapered ports, 1/2" male outlet

Data sheet

Reference
COLCPLF20S02M15
Matière
Laiton
Nombre de piquages
En fonction du modèle choisi
Type de raccordement
Á visser BSP (pas du gaz)
Raccordement
MF (mâle - femelle)
Diamètre
1/2" En fonction du modèle choisi
Pression maximum
10 bar
Température minimum
-10°C
Température maximum
110°C
Fluide admissible
Eau chauffage Eau sanitaire et potable
Normes et certifications
Certification ACS
Unité de vente
Pièce
Garantie fabricant
1 an

Specific References

ean13
8016615019957

Accessoires et équipements (vendus séparément)

Caractéristiques liées à la version du produit Modular brass manifold with tapered ports, 1/2" male outlet

Voici la liste des références et poids correspondants aux options séléctionnées.
COLCPLF32S02M15 - Modular brass manifold with tapered ports, 1/2" male outlet - 2 sorties - 1"1/4 (33/42)
Type of outputs 2 sorties
Diameter (in inches) 1"1/4 (33/42)
Packed weight 0,6048kg
34.03 € tax excl.
Consulter
COLCPLF25S02M15 - Modular brass manifold with tapered ports, 1/2" male outlet - 2 sorties - 1" (26/34)
Type of outputs 2 sorties
Diameter (in inches) 1" (26/34)
Packed weight 0,273kg
22.49 € tax excl.
Consulter
COLCPLF20S02M15 - Modular brass manifold with tapered ports, 1/2" male outlet - 2 sorties - 3/4" (20/27)
Type of outputs 2 sorties
Diameter (in inches) 3/4" (20/27)
Packed weight 0,231kg
19.96 € tax excl.
Consulter
COLCPLF32S03M15 - Modular brass manifold with tapered ports, 1/2" male outlet - 3 sorties - 1"1/4 (33/42)
Type of outputs 3 sorties
Diameter (in inches) 1"1/4 (33/42)
Packed weight 0,7854kg
44.69 € tax excl.
Consulter
COLCPLF25S03M15 - Modular brass manifold with tapered ports, 1/2" male outlet - 3 sorties - 1" (26/34)
Type of outputs 3 sorties
Diameter (in inches) 1" (26/34)
Packed weight 0,294kg
30.91 € tax excl.
Consulter
COLCPLF20S03M15 - Modular brass manifold with tapered ports, 1/2" male outlet - 3 sorties - 3/4" (20/27)
Type of outputs 3 sorties
Diameter (in inches) 3/4" (20/27)
Packed weight 0,33075kg
26.98 € tax excl.
Consulter
COLCPLF20S04M15 - Modular brass manifold with tapered ports, 1/2" male outlet - 4 sorties - 3/4" (20/27)
Type of outputs 4 sorties
Diameter (in inches) 3/4" (20/27)
Packed weight 0,47565kg
35.1 € tax excl.
Consulter
COLCPLF32S04M15 - Modular brass manifold with tapered ports, 1/2" male outlet - 4 sorties - 1"1/4 (33/42)
Type of outputs 4 sorties
Diameter (in inches) 1"1/4 (33/42)
Packed weight 1,1676kg
68.32 € tax excl.
Consulter
COLCPLF25S04M15 - Modular brass manifold with tapered ports, 1/2" male outlet - 4 sorties - 1" (26/34)
Type of outputs 4 sorties
Diameter (in inches) 1" (26/34)
Packed weight 0,5838kg
38.45 € tax excl.
Consulter
Référence - Désignation Type of outputs Diameter (in inches) Packed weight Prix
COLCPLF32S02M15 - Modular brass manifold with tapered ports, 1/2" male outlet - 2 sorties - 1"1/4 (33/42) 2 sorties 1"1/4 (33/42) 0,6048kg --
COLCPLF25S02M15 - Modular brass manifold with tapered ports, 1/2" male outlet - 2 sorties - 1" (26/34) 2 sorties 1" (26/34) 0,273kg --
COLCPLF20S02M15 - Modular brass manifold with tapered ports, 1/2" male outlet - 2 sorties - 3/4" (20/27) 2 sorties 3/4" (20/27) 0,231kg --
COLCPLF32S03M15 - Modular brass manifold with tapered ports, 1/2" male outlet - 3 sorties - 1"1/4 (33/42) 3 sorties 1"1/4 (33/42) 0,7854kg --
COLCPLF25S03M15 - Modular brass manifold with tapered ports, 1/2" male outlet - 3 sorties - 1" (26/34) 3 sorties 1" (26/34) 0,294kg --
COLCPLF20S03M15 - Modular brass manifold with tapered ports, 1/2" male outlet - 3 sorties - 3/4" (20/27) 3 sorties 3/4" (20/27) 0,33075kg --
COLCPLF20S04M15 - Modular brass manifold with tapered ports, 1/2" male outlet - 4 sorties - 3/4" (20/27) 4 sorties 3/4" (20/27) 0,47565kg --
COLCPLF32S04M15 - Modular brass manifold with tapered ports, 1/2" male outlet - 4 sorties - 1"1/4 (33/42) 4 sorties 1"1/4 (33/42) 1,1676kg --
COLCPLF25S04M15 - Modular brass manifold with tapered ports, 1/2" male outlet - 4 sorties - 1" (26/34) 4 sorties 1" (26/34) 0,5838kg --
