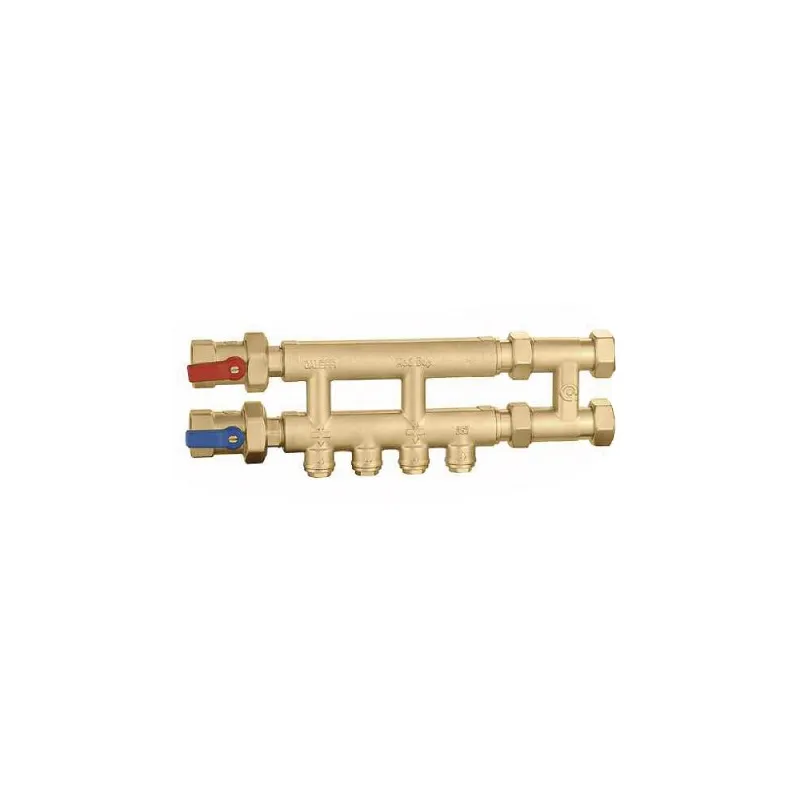

High-temperature manifold for underfloor heating
High-temperature manifold for underfloor heating
Function:
When paired with the GRDRML000181520 regulated distribution unit, the COLHTL000181012 manifold supplies two high-temperature circuits, while the HYDRONIC manifold serves a low-temperature hydronic floor heating system. It is equipped with a differential pressure valve.
The differential pressure valve keeps the circulator at its operating point.
It limits overpressures caused by the action of thermostatic or electrothermal heads.
Maximum glycol content: 30%
1
Are you an individual?
Are you a professional?
Log in to find out your discount.
€163.45
Tax included
136.21 € tax excl.
Unité de vente : Pièce
Are you an individual?
Save time and have it delivered to your workplace..
Are you a professional?
Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account
FREE SHIPPING
From €150 incl. VAT
For a cart not exceeding 30Kg
NEED HELP?
Contact us Monday-Friday 8h-12h 13h30-18h
(+33) 04 28 54 00 69
Complément d'information High-temperature manifold for underfloor heating
The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.
Performance:
- Compatible fluids: water, glycol water
- Maximum glycol percentage: 30%
- Maximum inlet temperature: 90 °C
- Low-temperature collector temperature range: 5–60 °C
- High-temperature collector temperature range: 5 ÷ 100 °C
- Maximum operating pressure: 6 bar
- Maximum cold hydraulic test pressure: 6 bar
- Low-temperature collector differential pressure bypass setting: 25 kPa
- High-temperature collector differential pressure bypass setting: 6 kPa
- Pressure gauge scale: 0–10 bar
- LCD thermometer range: 24 ÷ 48 °C
Connections:
- High-pressure circuit: 1" F
- High-pressure circuit branches: 1/2" F
- Center-to-center distance of high-pressure circuit manifold connections: 60 mm
- Center-to-center distance of high-temperature branch: 40 mm
- LV circuit branches: 3/4" male via clip-on adapter (part no. 675850)
- Center-to-center distance of LV branch: 50 mm
Caractéristiques techniques High-temperature manifold for underfloor heating
Data sheet
- Reference
- COLHTL000181012
- Matière
- Laiton
- Type de raccordement
- Á visser BSP (pas du gaz)
- Raccordement
- Femelle
- Diamètre
- 1" 1/2" 3/4"
- Pression maximum
- 6 bar
- Température maximum
- 90°C
- Fluide admissible
- Eau chauffage Eau glycolée
- Unité de vente
- Pièce
- Garantie fabricant
- 1 an
Specific References
- ean13
- 3519610031863
Download documentation
Brochure_grpe_regule
Brochure technique Groupe de distribution régulé motorisé 181
Download (2.57MB)Your review appreciation cannot be sent
Report comment
Are you sure that you want to report this comment?
Report sent
Your report has been submitted and will be considered by a moderator.
Your report cannot be sent
Write your review
Review sent
Your comment has been submitted and will be available once approved by a moderator.
Your review cannot be sent
High-temperature manifold for underfloor heating
Function:
When paired with the GRDRML000181520 regulated distribution unit, the COLHTL000181012 manifold supplies two high-temperature circuits, while the HYDRONIC manifold serves a low-temperature hydronic floor heating system. It is equipped with a differential pressure valve.
The differential pressure valve keeps the circulator at its operating point.
It limits overpressures caused by the action of thermostatic or electrothermal heads.
Maximum glycol content: 30%
