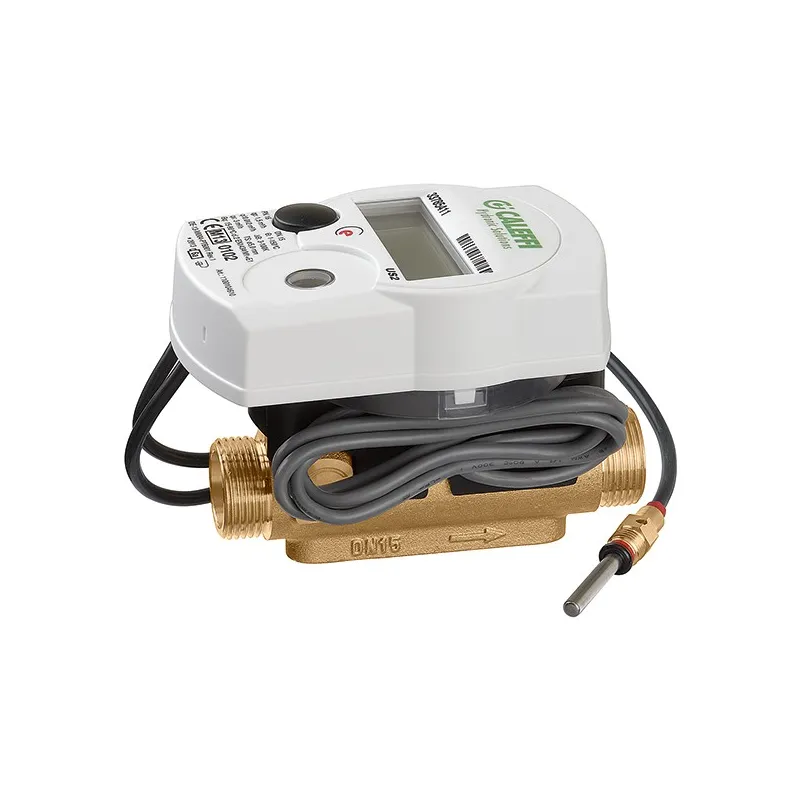

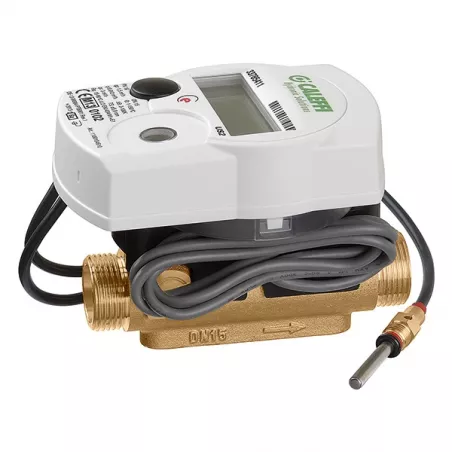

SENSONICAL ULTRA Compact Ultrasonic Heat Meter sensonical with 1 pulse output (no m-bus transmission)

Additional information:

This compact device is equipped with an electronic processing unit, an ultrasonic flow meter, and two sealable temperature probes. The electronic unit, which includes a display screen, can be separated from the volume meter for easier reading. SENSONICAL ULTRA is very easy to install and requires virtually no maintenance (the battery life is guaranteed for over 10 years).

The SENSONICAL ULTRA meter’s flow meter is ultrasonic and, unlike traditional turbine flow meters, has no moving parts. This technology, along with the electronics and materials used, enables accurate and reliable measurements and makes the device less prone to errors and failures caused by impurities in the circuit. These meters support a maximum flow rate of 2.5 m³/h, with a DN 20 body and a 3/4" M connection. Depending on the model, they may also feature 2 pulse inputs (CAL19185MI) or 1 pulse output (CAL19185MU).

The temperature probes are high-precision platinum resistance thermometers (PT 1000 probes) that are certified and
easy to seal, providing better protection against tampering. The cable connecting the supply probe to the calculation unit is
1.5 m long.

The SENSONICAL ULTRA meter is equipped with an 8-digit LCD display. By pressing a button, you can access a range of technical data and statistics, organized across three distinct levels, which allow you to assess the device’s operating status and view historical data. It is important to be able to track changes in
consumption data. The meter displays, via its screen and on a monthly basis, consumption values for the last 15 months along with the dates they were recorded. You can also, if pulse inputs are present (CAL19185MI), view the pulse history of your meter connected to the device. Consumption data is also accessible via M-Bus transmission.

Technical specifications:

• 10-year long-life battery (6+1 years for CAL19185MU).
• No moving parts.
• Low pressure drop.
• Compliance with EN 1434.
• Compliant with Directive 2004/22/EC (MI004).
• ISO 9001 certified by the manufacturer.
• High protection rating (IP 54).
• Tamper-proof protection via sealing.
• Extreme reliability and wear resistance thanks to modern production technology and the use of high-quality materials.
