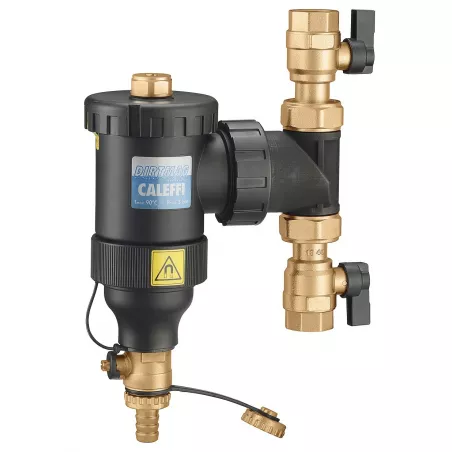

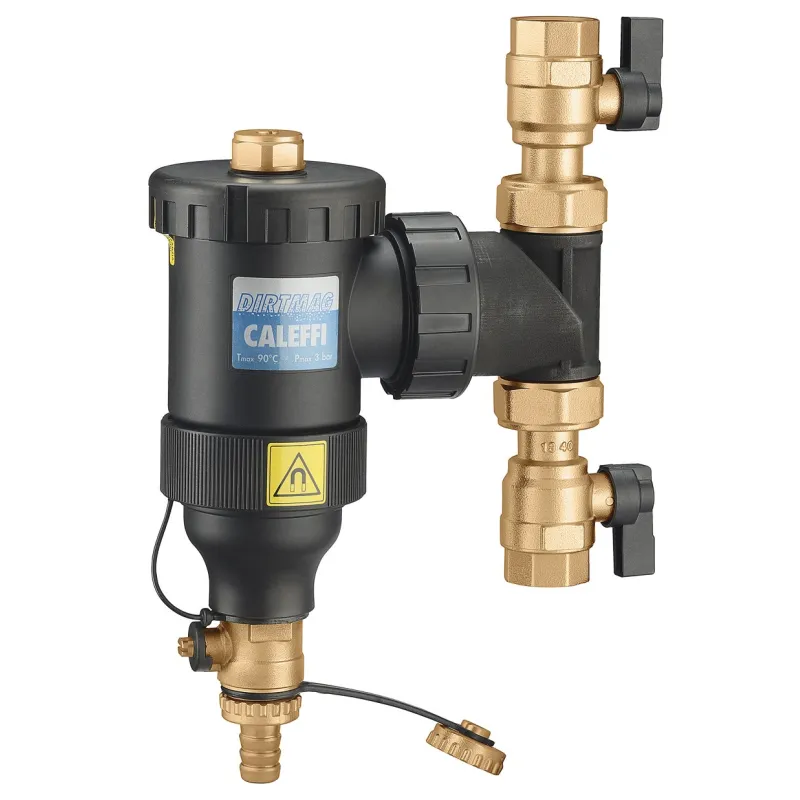

DIRTMAG settling tank with FF valves

Function:

The DIRTMAG 545 settling tank continuously collects sludge and impurities from the heating water, as well as suspended metal particles.

Maximum glycol content: 30%.

Plus de détails
Type de raccordement : Á visser BSP (pas du gaz)1
3/4" (20/27)
Are you an individual?
Are you a professional?

Log in to find out your discount.

€156.82 Tax included

130.68 € tax excl.

Unité de vente : Pièce
PDAMVL000000F20
Diameter (in inches): 3/4" (20/27)
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information DIRTMAG settling tank with FF valves

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Construction:

  • With 3/4" to 1-1/4" valves depending on the model chosen
  • Ring connectors for 22 or 28 mm diameter copper pipe
  • Body and cover: Polymer reinforced with 30% fiberglass
  • Filter screen: High-density polymer
  • With magnetic ring 2 magnets of 2600 Gauss

Functional characteristics:

  • Maximum operating pressure: 3 bar
  • Temperature range: 0 / 90°C
  • Fluid: water, water + glycol (max. 30%)
  • Air evacuation via manual bleed valve
  • DIRTMAG units are equipped with an adjustable flush valve with a nipple.

Installation:

The mounting tee allows installation on a horizontal or vertical pipe. The direction of flow is indicated and must be respected.
The rotating nut allows for quick and easy installation without risk of error, with a gasket provided.
The mounting wrench is provided.

Operating principle:

The flow speed is slowed down inside the body, suspended particles are separated on contact with the internal grid and fall to the bottom of the bowl
. Metal particles are trapped by the two magnets.
Particles up to 5 µm are stopped.
The ring carrying the two magnets is very easy to remove.
Flushing can be carried out while the installation is in operation.



Caractéristiques techniques DIRTMAG settling tank with FF valves

Data sheet

Reference
PDAMVL000000F20
Matière
Corps et couvercle polymère chargé 30% fibre de verre Laiton
Internes
Grille de filtration polymère haute densité
Type de raccordement
Á visser BSP (pas du gaz)
Raccordement
FF (femelle - femelle)
Diamètre
En fonction du modèle choisi
Pression maximum
3 bar
Température minimum
0°C
Température maximum
90°C
Fluide admissible
Eau Eau glycolée
Unité de vente
Pièce
Garantie fabricant
1 an

Specific References

ean13
8016615486780

Download documentation

FT DIRTM

Fiche technique pot de décantation DIRTMAG Té en laiton

Download (787.18KB)

Accessoires et équipements (vendus séparément)

Caractéristiques liées à la version du produit DIRTMAG settling tank with FF valves

Voici la liste des références et poids correspondants aux options séléctionnées.
PDAMVL000000F20 - DIRTMAG settling tank with FF valves - 3/4" (20/27)
Diameter (in inches) 3/4" (20/27)
Packed weight 1,3272kg
130.68 € tax excl.
Consulter
PDAMVL000000F25 - DIRTMAG settling tank with FF valves - 1" (26/34)
Diameter (in inches) 1" (26/34)
Packed weight 1,4049kg
136.6 € tax excl.
Consulter
PDAMVL000000F32 - DIRTMAG settling tank with FF valves - 1"1/4 (33/42)
Diameter (in inches) 1"1/4 (33/42)
Packed weight 1,9425kg
170.76 € tax excl.
Consulter
Référence - Désignation Diameter (in inches) Packed weight Prix
PDAMVL000000F20 - DIRTMAG settling tank with FF valves - 3/4" (20/27) 3/4" (20/27) 1,3272kg 130.68 € tax excl.
PDAMVL000000F25 - DIRTMAG settling tank with FF valves - 1" (26/34) 1" (26/34) 1,4049kg 136.6 € tax excl.
PDAMVL000000F32 - DIRTMAG settling tank with FF valves - 1"1/4 (33/42) 1"1/4 (33/42) 1,9425kg 170.76 € tax excl.
