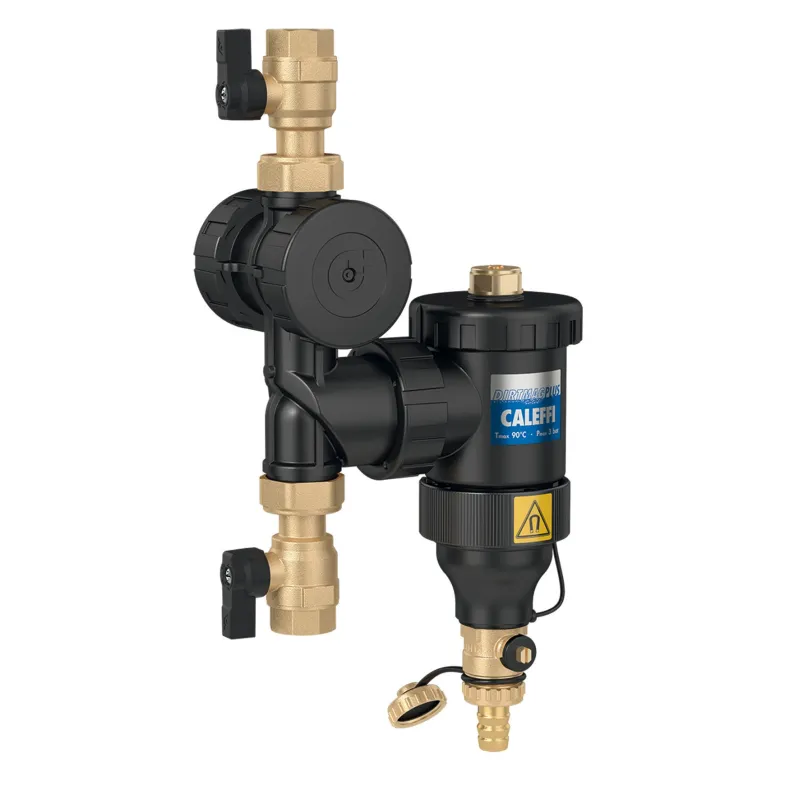

DIRTMAG PLUS 3/4" to 1" and 1-1/4" FF special PAC decanting pot

Specially designed to protect heat pumps, the DIRTMAGPLUS combines the functions of purging and settling, including the blocking of metal particles, in a single product.

Function:

The multifunction device comprises two separate elements:

  • A settling tank
  • An interchangeable filter

Maximum glycol content: 30%

Plus de détails
Type de raccordement : Á visser BSP (pas du gaz)1
3/4" (20/27)
Are you an individual?
Are you a professional?

Log in to find out your discount.

€215.12 Tax included

179.27 € tax excl.

Unité de vente : Pièce
PDDVTL000000F20
Diameter (in inches): 3/4" (20/27)
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information DIRTMAG PLUS FF special PAC settling tank

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Technical specifications:

  • Body: PA66G30
  • Settling tank cover: PA66G30
  • Top cover: brass EN 12164 CW614N
  • Drain screw: brass EN 12164 CW614N
  • Ring for T-connector: PPSG40
  • Internal grid: HDPE
  • Impurity recovery device: POM
  • POM-stainless steel filter (AISI 304)
  • Seals: EPDM
  • Drain valve with nipple: brass EN 12165CW 617N
  • Shut-off valve: brass EN 12165CW 617N

Performance:

  • Permissible fluids: glycol water
  • Maximum glycol percentage: 30%
  • Maximum operating pressure: 3 bar
  • Operating temperature range: 0÷90°C
  • Magnetic induction ring system: 2 x 0.3 T
  • Mesh size of primary filter (blue supplied) Ø: 0.30 mm (300 µ)
  • Mesh size of the retention filter (gray replacement part ref. F49474/GR) Ø: 0.80 mm (800 µ)
  • Internal volume of device 0.4 l

Functional characteristics:

  • Air evacuation via a manual bleed valve.
  • The magnetic ring can be removed without tools.
  • The DIRTMAGPLUS is equipped with an adjustable flush valve with a nipple.


Installation:

The DIRTMAGPLUS must be installed in accordance with the flow direction indicated by the arrow on the connection tee, preferably on the return pipe.
Always carry out installation/removal when the circuit is cold and no longer under pressure.
NB: use the wrench provided to tighten the connection tee nut fully.

Caractéristiques techniques DIRTMAG PLUS FF special PAC settling tank

Data sheet

Reference
PDDVTL000000F20
Matière
Corps et couvercle polymère chargé 30% fibre de verre Laiton
Joint
EPDM
Internes
Filtre POM inox AISI 304 Grille de filtration polymère haute densité
Type de raccordement
Á visser BSP (pas du gaz)
Raccordement
FF (femelle - femelle)
Diamètre
En fonction du modèle choisi
Pression maximum
3 bar
Température minimum
0°C
Température maximum
90°C
Fluide admissible
Eau Eau glycolée
Unité de vente
Pièce
Garantie fabricant
1 an

Specific References

ean13
8016615441178

Download documentation

FT DIRTPLUS

Fiche technique pot de décantation DIRTMAG PLUS Té en laiton 3/4" à 1" FF

Download (1.01MB)

Accessoires et équipements (vendus séparément)

Caractéristiques liées à la version du produit DIRTMAG PLUS FF special PAC settling tank

Voici la liste des références et poids correspondants aux options séléctionnées.
PDDVTL000000F20 - DIRTMAG PLUS FF special PAC settling tank - 3/4" (20/27)
Diameter (in inches) 3/4" (20/27)
Packed weight 1,5645kg
179.27 € tax excl.
Consulter
PDDVTL000000F25 - DIRTMAG PLUS FF special PAC settling tank - 1" (26/34)
Diameter (in inches) 1" (26/34)
Packed weight 1,6464kg
191.1 € tax excl.
Consulter
PDDVTL000000F32 - DIRTMAG PLUS FF special PAC settling tank - 1"1/4 (33/42)
Diameter (in inches) 1"1/4 (33/42)
Packed weight 2,15kg
218.66 € tax excl.
Consulter
Référence - Désignation Diameter (in inches) Packed weight Prix
PDDVTL000000F20 - DIRTMAG PLUS FF special PAC settling tank - 3/4" (20/27) 3/4" (20/27) 1,5645kg 179.27 € tax excl.
PDDVTL000000F25 - DIRTMAG PLUS FF special PAC settling tank - 1" (26/34) 1" (26/34) 1,6464kg 191.1 € tax excl.
PDDVTL000000F32 - DIRTMAG PLUS FF special PAC settling tank - 1"1/4 (33/42) 1"1/4 (33/42) 2,15kg 218.66 € tax excl.
