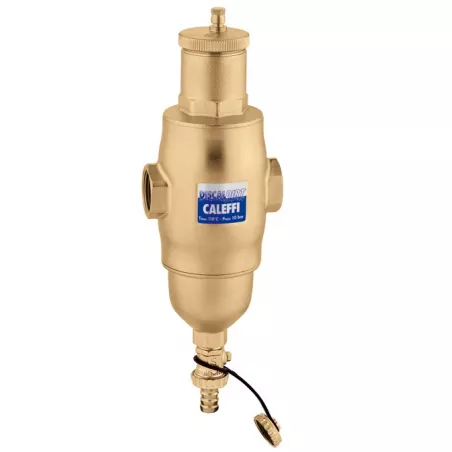

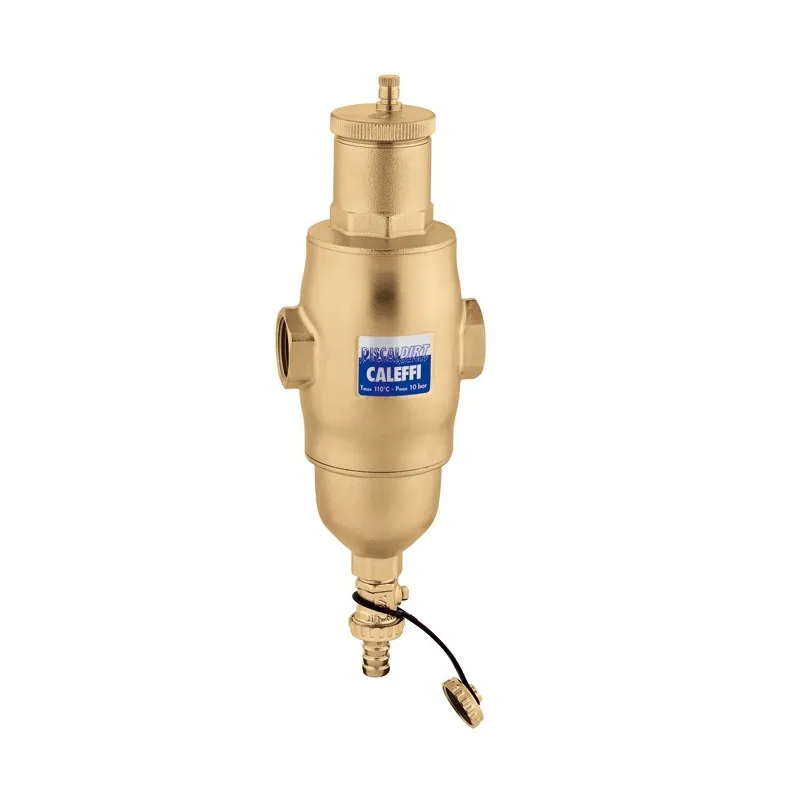

Degasser + standard screw-on settling tank

Function:

The DISCALDIRT degasser/settling tank completely removes air from heating and air conditioning systems
and collects sludge.

Maximum glycol content: 50%.

Plus de détails
Normes et certifications : Certification ACSType de raccordement : Á visser BSP (pas du gaz)1
3/4" (20/27)
Are you an individual?
Are you a professional?

Log in to find out your discount.

€225.38 Tax included

187.82 € tax excl.

Unité de vente : Pièce
DPBSTL000000F20
Diameter (in inches): 3/4" (20/27)
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information Degasser + standard screw-on settling tank

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Functional characteristics:

  • Maximum operating pressure 10 bar
  • Temperature range 0 / 110°C
  • Fluid: water, water + glycol (max. 50%)
  • Air evacuation via an integrated automatic float valve system.
  • DISCALDIRT units are equipped with a lower outlet (B) for flushing, as well as a valve in the upper part (A) to allow air to be flushed out during filling and rinsing operations.

Construction:

  • Screw-in model
  • 3/4", 1", and 1-1/4" FF brass body
  • Without magnetic ring.
  • Internal screen
  • EPDM gaskets

Installation:

Must be installed on a horizontal pipe.

Operating principle:

DISCAL combines several physical principles: a large body that reduces the speed of water flow, a stainless steel grid to which microbubbles attach, and a drain mechanism with a needle valve ("above water") for complete evacuation of collected air.

Caractéristiques techniques Degasser + standard screw-on settling tank

Data sheet

Reference
DPBSTL000000F20
Matière
Laiton
Joint
EPDM
Internes
Grille en matériaux de synthèse
Type de raccordement
Á visser BSP (pas du gaz)
Raccordement
FF (femelle - femelle)
Diamètre
En fonction du modèle choisi
Pression maximum
10 bar
Température minimum
0°C
Température maximum
110°C
Fluide admissible
Eau Eau glycolée
Normes et certifications
Certification ACS
Unité de vente
Pièce
Garantie fabricant
1 an

Specific References

ean13
8016615206999

Download documentation

FT DIRT

Fiche technique dégazeur+pot de décantation standard

Download (845.15KB)

Accessoires et équipements (vendus séparément)

Caractéristiques liées à la version du produit Degasser + standard screw-on settling tank

Voici la liste des références et poids correspondants aux options séléctionnées.
DPBSTL000000F20 - Degasser + standard screw-on settling tank - 3/4" (20/27)
Diameter (in inches) 3/4" (20/27)
Packed weight 2,856kg
187.82 € tax excl.
Consulter
DPBSTL000000F25 - Degasser + standard screw-on settling tank - 1" (26/34)
Diameter (in inches) 1" (26/34)
Packed weight 2,7405kg
190.45 € tax excl.
Consulter
DPBSTL000000F32 - Degasser + standard screw-on settling tank - 1"1/4 (33/42)
Diameter (in inches) 1"1/4 (33/42)
Packed weight 3,066kg
241.64 € tax excl.
Consulter
Référence - Désignation Diameter (in inches) Packed weight Prix
DPBSTL000000F20 - Degasser + standard screw-on settling tank - 3/4" (20/27) 3/4" (20/27) 2,856kg 187.82 € tax excl.
DPBSTL000000F25 - Degasser + standard screw-on settling tank - 1" (26/34) 1" (26/34) 2,7405kg 190.45 € tax excl.
DPBSTL000000F32 - Degasser + standard screw-on settling tank - 1"1/4 (33/42) 1"1/4 (33/42) 3,066kg 241.64 € tax excl.
