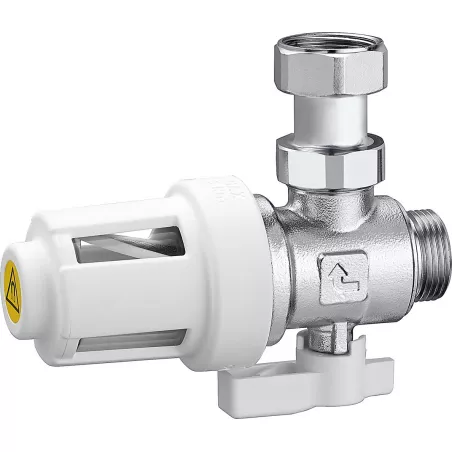

Filtre décanteur magnétique pour chaudière murale DIRTMAG XS
search
  • Filtre décanteur magnétique pour chaudière murale DIRTMAG XS

Photo non contractuelle

Magnetic sediment filter for wall-mounted boilers

Function:

The DIRTMAG XS magnetic sediment filter separates impurities found in heating and cooling systems, primarily protecting the boiler’s circulator and heat exchanger. The neodymium magnet traps ferrous impurities, while the mesh filter traps other impurities. The heavy particle collection chamber features transparent windows to check whether cleaning of the internal components is necessary. Thanks to its design, it blends seamlessly into the home environment, and its compact dimensions allow it to be installed on all types of boilers.

Maximum glycol content: 30%.

Plus de détails
Type de raccordement : Á visser BSP (pas du gaz)1
Are you an individual?
Are you a professional?

Log in to find out your discount.

€91.45 Tax included

76.21 € tax excl.

Unité de vente : Pièce
PD545XS00000020
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information DIRTMAG XS Magnetic Sediment Filter for Wall-Mounted Boilers

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Construction:

  • Body: brass EN 12165 CW617N, chrome-plated
  • Connections: brass EN 12165 CW617N, chrome-plated
  • Seals: EPDM
  • Filter housing: PA 12
  • Magnetic cover: PA6G30
  • Ball: brass EN 12165 CW617N, chrome-plated
  • Filter: stainless steel EN 10088-2 (AISI 304)
  • Handle: PA66G30

Functional characteristics:

  • Fluids: water, non-hazardous glycol-based fluids excluded from the scope of Directive 67/548/EEC
  • Max. glycol content: 30%
  • Max. operating pressure: 3 bar
  • Temperature range: 0 / 90°C
  • Mesh size: 800 μm
  • Magnetic induction: 4750 Gauss
  • Kv: 3.55 m³/h

The DIRTMAG XS magnetic settling filter filters, separates, and retains impurities present in the system. The unique shape of the deflector directs and causes impurities to settle in the settling chamber. The neodymium magnet installed opposite the flow separates ferrous particles, while the mesh filter blocks other impurities. The chamber is equipped with transparent windows that allow you to see at any time whether cleaning of the internal components is necessary. Cleaning is therefore performed only when strictly necessary. The unique shape of the shut-off valve allows the internal components to be cleaned by draining only the water
contained in the filter. The magnet is not in direct contact with the fluid, which simplifies cleaning operations.

Caractéristiques techniques DIRTMAG XS Magnetic Sediment Filter for Wall-Mounted Boilers

Data sheet

Reference
PD545XS00000020
Avis de l'équipe
Meilleur choix technique
Matière
Laiton chromé
Type de raccordement
Á visser BSP (pas du gaz)
Raccordement
FM (femelle - mâle)
Diamètre
3/4"
Pression maximum
3 bar
Température minimum
0°C
Température maximum
90°C
Fluide admissible
Eau Eau glycolée
Unité de vente
Pièce
Garantie fabricant
1 an
