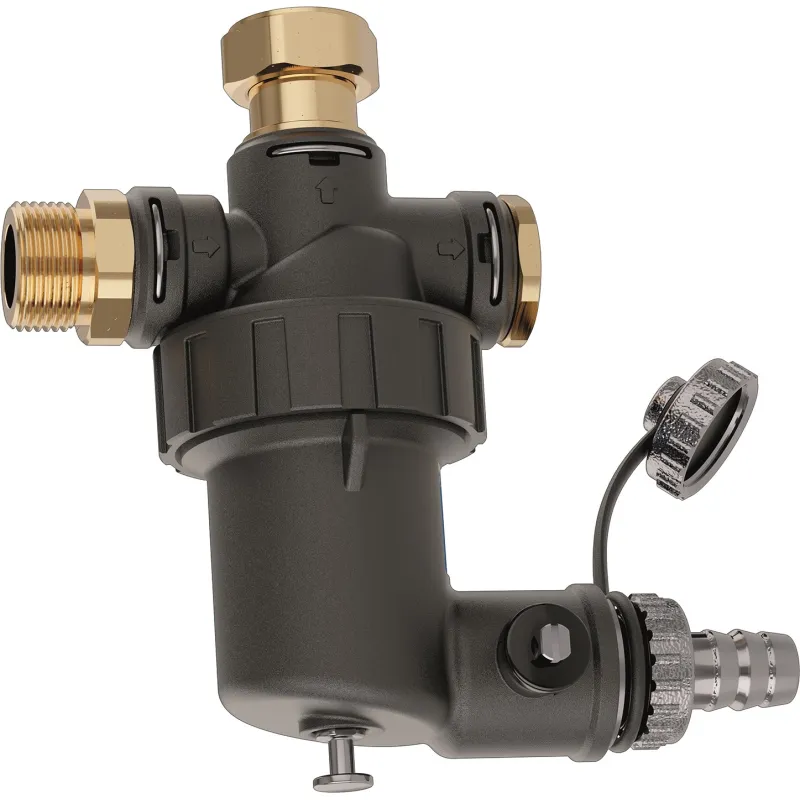

DIRTMAG MINI Multi-Position Settling Tank

Function:

The DIRTMAG MINI sediment trap separates impurities from heating and cooling systems, primarily protecting the circulator and the boiler’s heat exchanger. The removable magnet support rod traps ferrous impurities, while the filter traps other impurities. Given its compact dimensions, this sediment trap is specially designed for installation under wall-mounted boilers and in tight spaces. Impurities can be drained while the system is in operation. The special arrangement of the inlets allows for vertical or horizontal installation depending
on requirements.

Maximum glycol content: 30%.

Plus de détails
Type de raccordement : Á visser BSP (pas du gaz)1
Are you an individual?
Are you a professional?

Log in to find out your discount.

€111.16 Tax included

92.63 € tax excl.

Unité de vente : Pièce
PDM545000000020
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information DIRTMAG MINI Settling Jar

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Construction:

  • Body: PA66G30
  • Internal components: POM / stainless steel EN 10088-2 (AISI 304)
  • Connections: brass EN 12165 CW617N
  • Seals: EPDM
  • Drain valve: brass EN 12164 CW614N
  • Drain: 3/4" M ISO 228-1 with plug
  • Boiler side: 3/4" F swivel nut ISO 228-1
  • System return side: 3/4" M ISO 228-1

Functional characteristics:

  • Fluids: water, non-hazardous glycol-based fluids excluded from the scope of Directive 67/548/EEC
  • Max. glycol content: 30%
  • Max. operating pressure: 3 bar
  • Temperature range: 0 / 90°C
  • Filter: 800 μm
  • Magnet: 13,000 Gauss
  • Kv in straight configuration: 4.2 m³/h
  • Kv in L-configuration: 3.9 m³/h

The DIRTMAGMINI® magnetic settling tank filters, separates, and retains impurities present in the system through the dual action of filtration and settling. Ferrous impurities are retained inside the housing by a removable magnet. To remove these impurities, simply open the drain valve. The flow rate of the fluid coming from the system is slowed down, allowing even the finest particles that the filter does not retain to be separated and settled so they do not re-enter the circulation. The special shape of the bottom facilitates the concentration and removal of accumulated impurities.

Caractéristiques techniques DIRTMAG MINI Settling Jar

Data sheet

Reference
PDM545000000020
Avis de l'équipe
Meilleur choix technique
Matière
Laiton
Joint
EPDM
Type de raccordement
Á visser BSP (pas du gaz)
Raccordement
FM (femelle - mâle)
Diamètre
3/4"
Pression maximum
3 bar
Température minimum
0°C
Température maximum
90°C
Fluide admissible
Eau Eau glycolée
Unité de vente
Pièce
Garantie fabricant
1 an

Download documentation

FT PDM54520

Fiche technique pot de décantation multi-positions

Download (789.48KB)
