Straight magnetic decanter filter - DIRTMAG XS 3/4" m - 3/4" f

Décantation

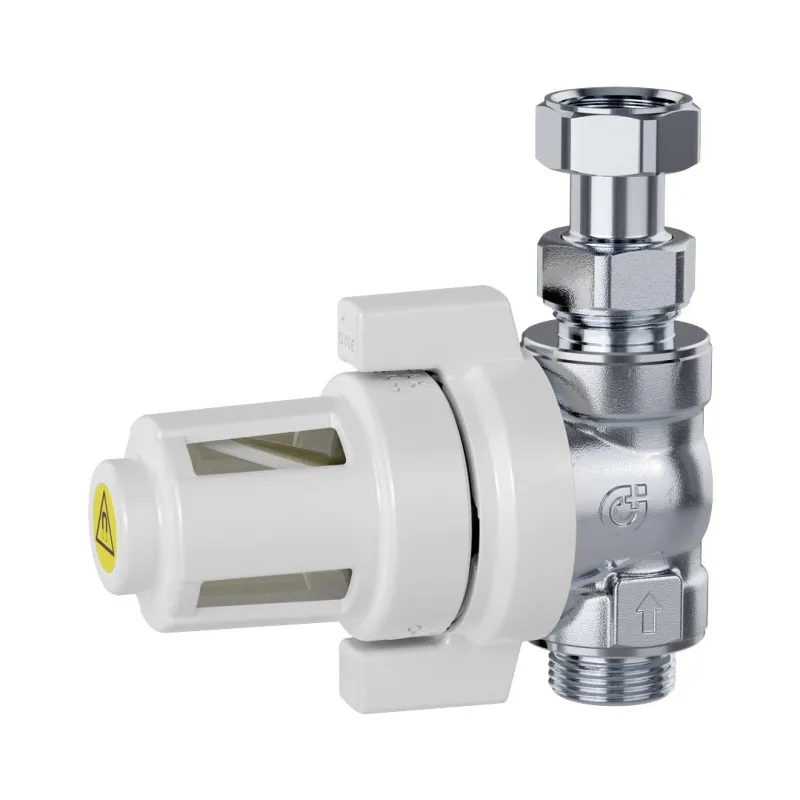

Filtre décanteur magnétique droit - DIRTMAG XS
search
  • Filtre décanteur magnétique droit - DIRTMAG XS

Photo non contractuelle

Straight magnetic decanter filter for wall-mounted boilers - DIRTMAG XFunction :

Function

The DIRTMAG XS magnetic separator filter mechanically separates impurities from heating and cooling systems, mainly protecting the boiler circulator and heat exchanger. A steel mesh filter retains impurities, a neodymium magnet separates ferrous particles and a chamber recovers heavy particles. It fits neatly under a wall-mounted boiler, and its compact dimensions mean it can be fitted to all types of boiler.

Plus de détails
3/4" m - 3/4" f
Are you an individual?
Are you a professional?

Log in to find out your discount.

€117.19 Tax included

97.66 € tax excl.

Unité de vente : Pièce
PD5450000020XSD
Diamètre: 3/4" M - 3/4" F
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information Straight magnetic decanter filter - DIRTMAG XS

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Technical data

Materials
  • Body: PD54520XS: brass EN 12165 CW617N, chrome plated PD54520XSD: brass EN 12165 CW617N, nickel plated PD54522XSD: brass EN 12165 CW617N
  • Fittings: PD54520XS and PD54522XSD: brass EN 12165 CW617N, chrome-plated PD54522XSD: brass EN 12165 CW617N
  • Seals: EPDM
  • Filter bowl: PA 12
  • Magnet cover: PA6G30
  • Filter: stainless steel EN 10088-2 (AISI 304)
  • Sphere: brass EN 12165 CW617N, chrome-plated
  • Ball valve handle: PA6G30
Performance
  • Fluids: water, non-hazardous glycol solutions
  • Max. percentage of glycol: 30
  • Max. working pressure: 3 bar
  • Operating temperature range: 0-90°C
  • Filter mesh size: 800 μm
  • Magnetic induction magnet: 0.475 T (4750 Gauss)
  • Kv: PD54520XS: 3.55 m3/h (with clean filter) PD54520XSD and PD54522XSD: 3.66 m3/h (with clean filter)
Connections
  • Boiler side: 3/4" M (ISO228-1), Ø 22 mm for copper tube
  • Return side: 3/4" M (ISO228-1), Ø 22 mm for copper tube
  • Double union nut for PD54520XS and PD54520XSD (supplied): 3/4" F (ISO 228-1) - 3/4" F (ISO 228-1)

Caractéristiques techniques Straight magnetic decanter filter - DIRTMAG XS

Data sheet

Reference
PD5450000020XSD
Maille et filtration
800 μm
Matière
Laiton - Laiton chromé - Laiton nickelé
Corps
Laiton - Laiton nickelé
Joint
EPDM
Raccordement
MF (mâle - femelle)
Diamètre
3/4"
Pression maximum
3 bar
Température minimum
0°C
Température maximum
90°C
Fluide admissible
Eau - Eau glycolée
Unité de vente
Pièce

Download documentation

FT PDXSD

Fiche Technique PDXSD

Download (1.36MB)

Accessoires et équipements (vendus séparément)

Caractéristiques liées à la version du produit Straight magnetic decanter filter - DIRTMAG XS

Voici la liste des références et poids correspondants aux options séléctionnées.
PD5450000022XSD - Straight magnetic decanter filter - DIRTMAG XS - Ø 22
Diamètre Ø 22
Packed weight 1kg
96.98 € tax excl.
Consulter
PD5450000020XSD - Straight magnetic decanter filter - DIRTMAG XS - 3/4" M - 3/4" F
Diamètre 3/4" M - 3/4" F
Packed weight 1kg
97.66 € tax excl.
Consulter
Référence - Désignation Diamètre Packed weight Prix
PD5450000022XSD - Straight magnetic decanter filter - DIRTMAG XS - Ø 22 Ø 22 1kg 96.98 € tax excl.
PD5450000020XSD - Straight magnetic decanter filter - DIRTMAG XS - 3/4" M - 3/4" F 3/4" M - 3/4" F 1kg 97.66 € tax excl.
