Standard horizontal disc degasser 3/4" (20/27)

Dégazeurs

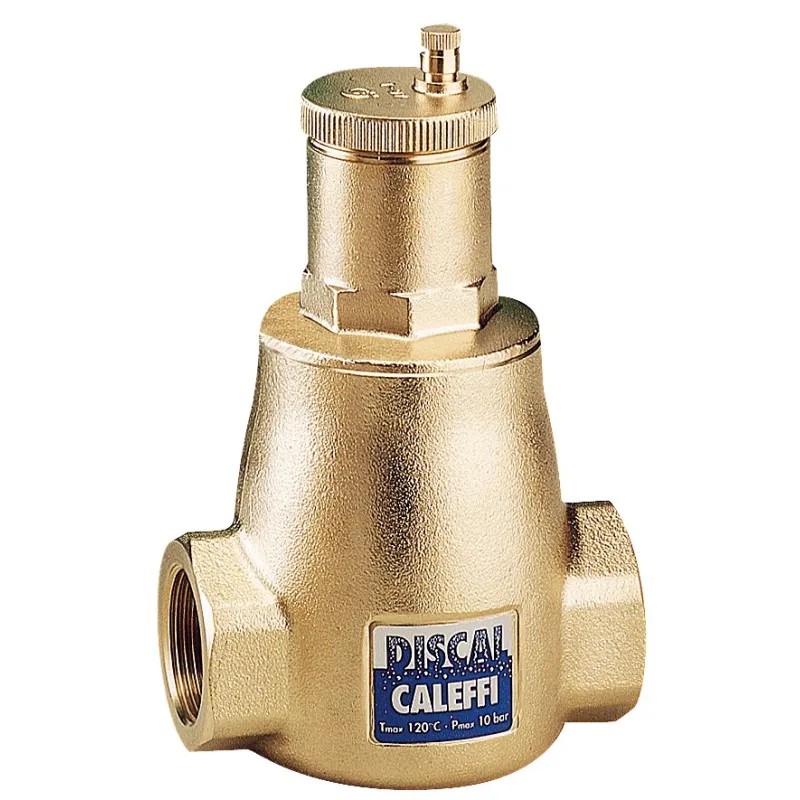

Dégazeur Discal standard horizontal de 3/4¨à 2¨
search
  • Dégazeur Discal standard horizontal de 3/4¨à 2¨
  • Dégazeur Discal standard horizontal 3/4¨à 2¨
  • Schéma dégazeur Discal standard horizontal 3/4¨à 2¨

Photos non contractuelles

Discal standard range horizontal degasser 3/4" to 2"

Function:

The DISCAL automatic degasser completely removes air from heating and air conditioning systems. It acts on dissolved microbubbles, allowing the system to function perfectly, eliminating noise and removing the risk of corrosion.

Plus de détails
Normes et certifications : Certification ACSType de raccordement : Á visser BSP (pas du gaz)1
3/4" (20/27)
Are you an individual?
Are you a professional?

Log in to find out your discount.

€114.31 Tax included

95.26 € tax excl.

Unité de vente : Pièce
DISCAL000000F20
Diameter (in inches): 3/4" (20/27)
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information Standard horizontal disc degasser

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Construction:

  • Standard brass range Horizontal:
  • Brass body and cover from 3/4" to 2"
  • ACS on brass range
  • Stainless steel internal grid
  • EPDM gaskets
  • 3/4" to 2" connection
.

Functional characteristics:

  • Maximum operating pressure 10 bar
  • Temperature range 0 / 110°C
  • Fluid: water, water + glycol (max. 50%)
  • Air evacuation via an integrated automatic float valve system.

Operating principle:

DISCAL combines several physical principles: A large body that reduces the speed of water circulation, A stainless steel grid to which microbubbles attach, A bleed mechanism with a needle valve for excellent evacuation of collected gas.

Maximum glycol content: 50%.

Caractéristiques techniques Standard horizontal disc degasser

Data sheet

Reference
DISCAL000000F20
Matière
Laiton
Joint
EPDM
Internes
Grille inox
Type de raccordement
Á visser BSP (pas du gaz)
Raccordement
FF (femelle - femelle)
Diamètre
En fonction du modèle choisi
Pression maximum
10 bar
Température minimum
0°C
Température maximum
110°C
Fluide admissible
Eau Eau glycolée
Normes et certifications
Certification ACS
Unité de vente
Pièce
Garantie fabricant
1 an

Specific References

ean13
8016615053272

Download documentation

FT SAD20

Fiche technique dégazeur Discal gamme standard horizontal raccord 3/4¨à 2¨

Download (643.22KB)

FT DISCAL série 551

Fiche technique Séparateurs d’air DISCAL série 551

Download (1.1MB)

Accessoires et équipements (vendus séparément)

Caractéristiques liées à la version du produit Standard horizontal disc degasser

Voici la liste des références et poids correspondants aux options séléctionnées.
DISCAL000000F20 - Standard horizontal disc degasser - 3/4" (20/27)
Diameter (in inches) 3/4" (20/27)
Packed weight 0,8778kg
95.26 € tax excl.
Consulter
DISCAL000000F25 - Standard horizontal disc degasser - 1" (26/34)
Diameter (in inches) 1" (26/34)
Packed weight 1,81755kg
131.5 € tax excl.
Consulter
DISCAL000000F32 - Standard horizontal disc degasser - 1"1/4 (33/42)
Diameter (in inches) 1"1/4 (33/42)
Packed weight 2,39715kg
181.25 € tax excl.
Consulter
DISCAL000000F40 - Standard horizontal disc degasser - 1"1/2 (40/49)
Diameter (in inches) 1"1/2 (40/49)
Packed weight 2,26485kg
195.68 € tax excl.
Consulter
DISCAL000000F50 - Standard horizontal disc degasser - 2" (50/60)
Diameter (in inches) 2" (50/60)
Packed weight 2,3961kg
213.43 € tax excl.
Consulter
Référence - Désignation Diameter (in inches) Packed weight Prix
DISCAL000000F20 - Standard horizontal disc degasser - 3/4" (20/27) 3/4" (20/27) 0,8778kg 95.26 € tax excl.
DISCAL000000F25 - Standard horizontal disc degasser - 1" (26/34) 1" (26/34) 1,81755kg 131.5 € tax excl.
DISCAL000000F32 - Standard horizontal disc degasser - 1"1/4 (33/42) 1"1/4 (33/42) 2,39715kg 181.25 € tax excl.
DISCAL000000F40 - Standard horizontal disc degasser - 1"1/2 (40/49) 1"1/2 (40/49) 2,26485kg 195.68 € tax excl.
DISCAL000000F50 - Standard horizontal disc degasser - 2" (50/60) 2" (50/60) 2,3961kg 213.43 € tax excl.
