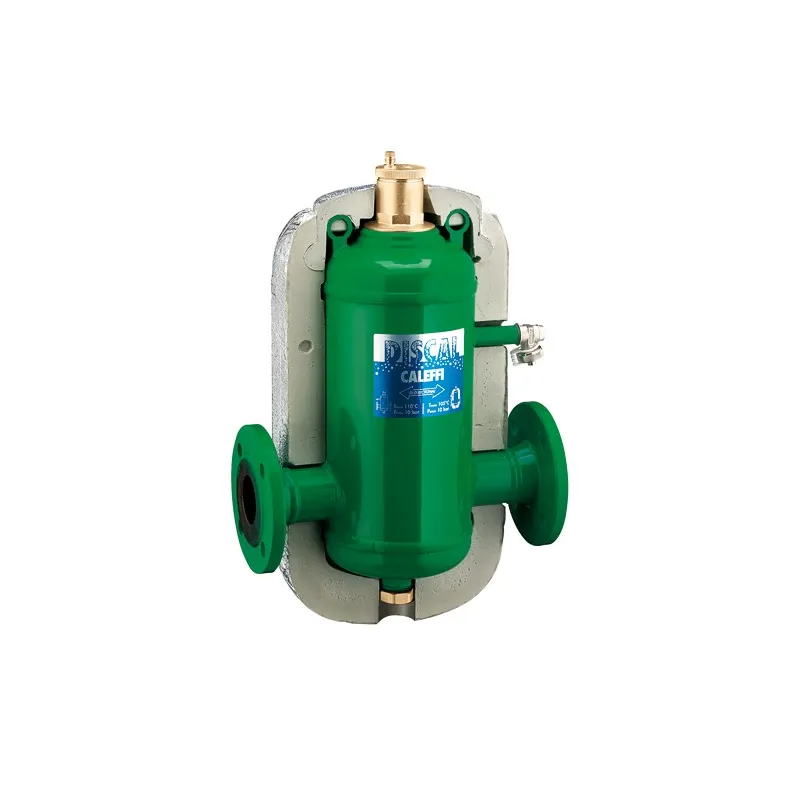

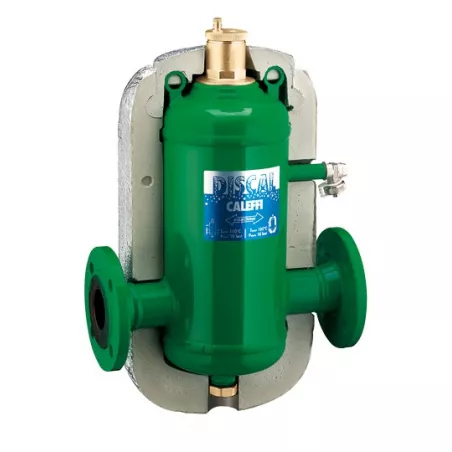

Disc degasser with flanges - PN 16

Function:

The DISCAL automatic degasser completely removes air from heating and air conditioning systems. It acts on dissolved microbubbles, allowing the system to operate perfectly, eliminating noise and removing the risk of corrosion.

Range: up to DN 300, please consult us.

Supplied in their insulation shell.

Plus de détails
Type de raccordement : À brides EN1092-1 PN161
dn 50
Are you an individual?
Are you a professional?

Log in to find out your discount.

€1,077.06 Tax included

897.55 € tax excl.

Unité de vente : Pièce
DDALBA000016050
Flanges: DN 50
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information PN 16 flanged Discal degasser

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Construction:

  • Steel range:
  • Green lacquered steel body with PN 16 flanges from DN 50 to DN 100, in an insulated shell
  • Stainless steel internal grid
  • EPDM gaskets
  • Supplied in their insulation shell

Functional characteristics:

  • Maximum operating pressure 10 bar
  • Temperature range 0 / 110°C
  • Fluid: water, water + glycol (max. 50%)
  • Air evacuation via an integrated automatic float valve system.

Operating principle:

DISCAL combines several physical principles: A large body that reduces the speed of water circulation, A stainless steel grid to which microbubbles attach, A bleed mechanism with a needle valve for excellent evacuation of collected gas.

Maximum glycol content: 50%.

Caractéristiques techniques PN 16 flanged Discal degasser

Data sheet

Reference
DDALBA000016050
Matière
Acier
Joint
EPDM
Internes
Grille inox
Type de raccordement
À brides EN1092-1 PN16
Diamètre
En fonction du modèle choisi
Pression maximum
10 bar
Température minimum
0°C
Température maximum
110°C
Fluide admissible
Eau Eau glycolée
Unité de vente
Pièce
Garantie fabricant
1 an

Specific References

ean13
8016615053982

Download documentation

FT SAD20

Fiche technique dégazeur Discal gamme standard horizontal raccord 3/4¨à 2¨

Download (643.22KB)

FT DISCAL série 551

Fiche technique Séparateurs d’air DISCAL série 551

Download (1.1MB)

Caractéristiques liées à la version du produit PN 16 flanged Discal degasser

Voici la liste des références et poids correspondants aux options séléctionnées.
DDALBA000016050 - PN 16 flanged Discal degasser - DN 50
Flanges DN 50
Packed weight 19,215kg
897.55 € tax excl.
Consulter
DDALBA000016065 - PN 16 flanged Discal degasser - DN 65
Flanges DN 65
Packed weight 20,58kg
940.29 € tax excl.
Consulter
DDALBA000016080 - PN 16 flanged Discal degasser - DN 80
Flanges DN 80
Packed weight 30,66kg
1031.88 € tax excl.
Consulter
DDALBA000016100 - PN 16 flanged Discal degasser - DN 100
Flanges DN 100
Packed weight 28,77kg
1074.61 € tax excl.
Consulter
DDALBA000016125 - PN 16 flanged Discal degasser - DN 125
Flanges DN 125
Packed weight 68kg
2149.16 € tax excl.
Consulter
DDALBA000016150 - PN 16 flanged Discal degasser - DN 150
Flanges DN 150
Packed weight 70,5kg
2173.6 € tax excl.
Consulter
Référence - Désignation Flanges Packed weight Prix
DDALBA000016050 - PN 16 flanged Discal degasser - DN 50 DN 50 19,215kg 897.55 € tax excl.
DDALBA000016065 - PN 16 flanged Discal degasser - DN 65 DN 65 20,58kg 940.29 € tax excl.
DDALBA000016080 - PN 16 flanged Discal degasser - DN 80 DN 80 30,66kg 1031.88 € tax excl.
DDALBA000016100 - PN 16 flanged Discal degasser - DN 100 DN 100 28,77kg 1074.61 € tax excl.
DDALBA000016125 - PN 16 flanged Discal degasser - DN 125 DN 125 68kg 2149.16 € tax excl.
DDALBA000016150 - PN 16 flanged Discal degasser - DN 150 DN 150 70,5kg 2173.6 € tax excl.
