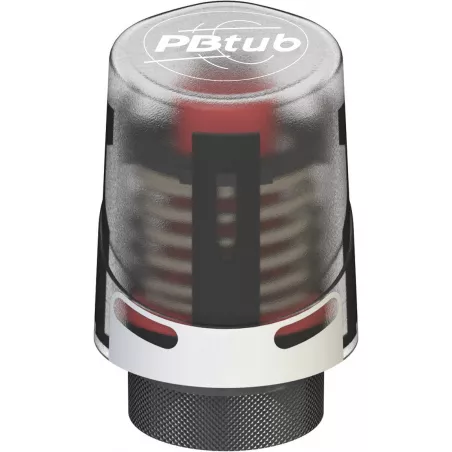

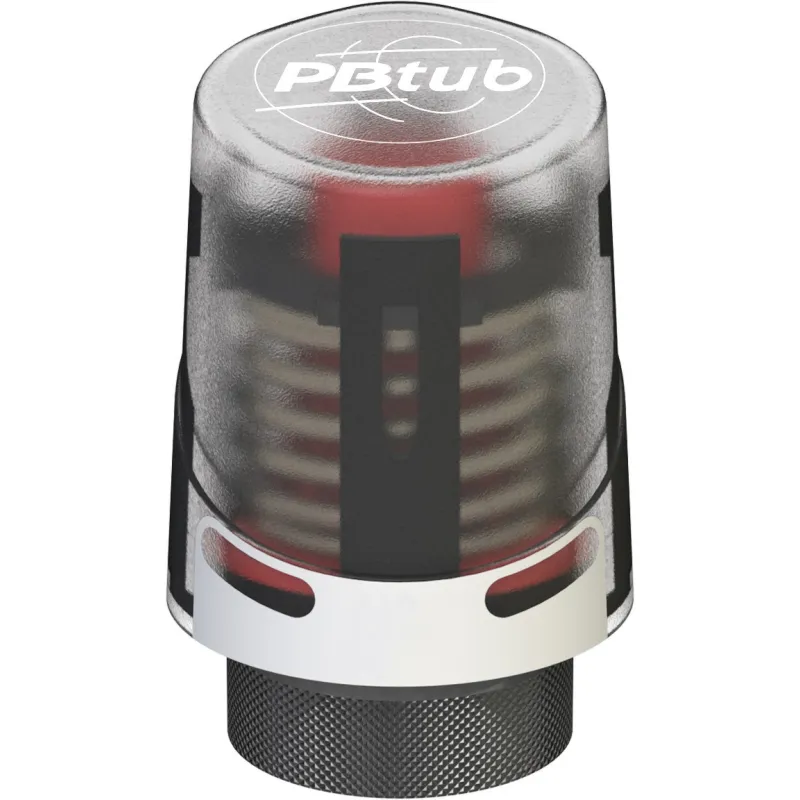

230V electrothermal head with position indicator

Équipements plancher chauffant
Tête électrothermique 230V avec indicateur de positionnement
search
  • Tête électrothermique 230V avec indicateur de positionnement
  • Schéma Tête électrothermique 230V avec indicateur de positionnement

Photos non contractuelles

230V Electrothermal Head

Description:

Low-power electrothermal head that closes when de-energized (230V), with position indicator, retaining ring to keep it in the open position during installation, 1-meter cable. Operates the opening and closing of hydraulic valves for individual room-by-room control.

Applications:

Underfloor heating/cooling

Electrothermal heads are essential accessories for individual room-by-room control.
They are compatible only with our three manifold series: HYDRONIC, S2, and STC.

Plus de détails
Normes et certifications : Eubac 214253 / 2142521
Are you an individual?
Are you a professional?

Log in to find out your discount.

€44.34 Tax included

36.95 € tax excl.

Unité de vente : Pièce
TETPB0000000000
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information 230V electrothermal head with position indicator

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Technical specifications:

Power supply:
  • Operating voltage 230V
  • Frequency: 50 Hz to 60 Hz
  • Inrush current at startup ≤ 250 mA
  • Power consumption at steady state at 45°C ≈ 1W
  • Standby current at 25°C ≈ 5.2 mA

Mechanical characteristics:

  • Opening time approx. 4 min.
  • Initial opening time approx. 2 min.
  • Stroke: 4.25 mm ± 0.75

Installation:

  • Nickel-plated brass coupling nut M30x1.5 for secure installation
  • Can be mounted in any direction
  • 1 m electrical connection cable
  • Marking area for identifying the installation location
  • Holds open during installation = the motor remains in the open position until power is first applied
  • Compatible with our 3 series of manifolds for underfloor heating

Caractéristiques techniques 230V electrothermal head with position indicator

Data sheet

Reference
TETPB0000000000
Tension électrique
230V monophasé
Fréquence
50Hz
Indice de protection
IP40 IP44
Normes et certifications
CEM 2004/108/CE Eubac 214253 / 214252 LVD 2006/95/CE RoHS 2001/65/UE
Unité de vente
Pièce
Garantie fabricant
1 an

Specific References

ean13
3519610035489

Download documentation

Fiche Technique-FT64-V1

Fiche Technique Tête électrothermique 230V FT64-V1

Download (323.28KB)

Notice Montage-TETPB

Notice Montage TETPB Tête électrothermique 230V

Download (1.24MB)
