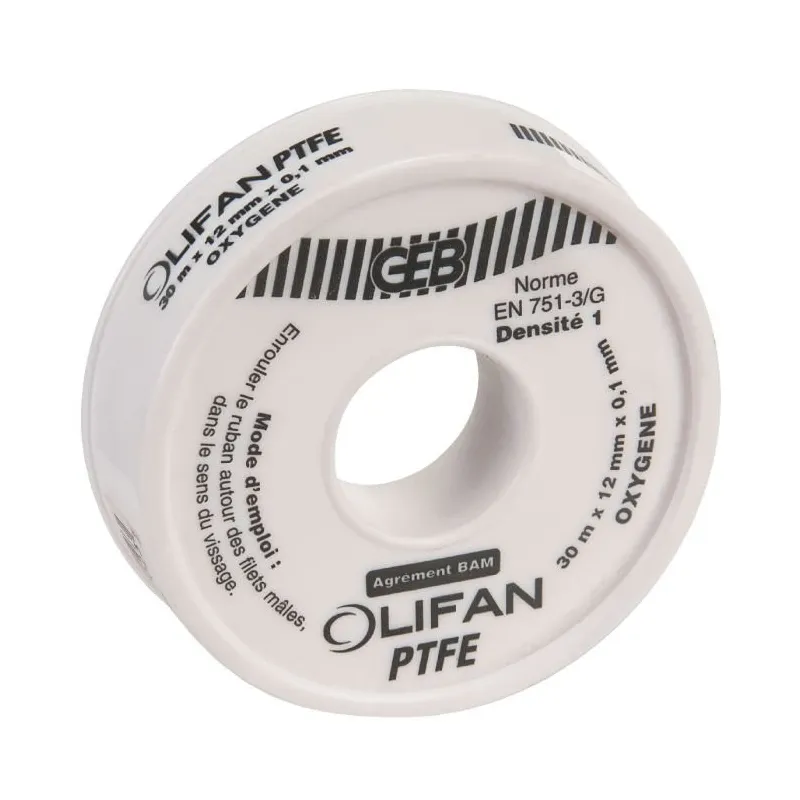

OLIFAN PTFE oxygen tape 12mm x 0,1mm x 30mètres

Technical specifications:

• Color: White
• Width: 12 or 19 mm
• Thickness: 0.1 mm
  Density: 0.1 g/cm³
• Weight per unit area: 80 g/m²
• Thread type Suitable for conical/cylindrical and conical/conical fittings (ISO 7-1)
• Maximum pressure: 40 bar. Material: PTFE
• Maximum temperature: 60°C
• Pressurization: Immediate.
• Repositioning: No (Caution, for example, regarding the presence of nearby valves that could cause the fittings to move during handling)
• Disassembly: Easy

Installation:

• Fittings must be clean, dry, and free of grease.

Instructions:

• Wrap the tape around the male threads in the direction of screwing, overlapping by 50%.
• Do not apply excessive tension to the tape while wrapping.
• At the end of the wrap, cut the tape and fold it back over the threads.
• Apply a pre-tension of between 50 and 150 N·m depending on the application.
• Immediate pressure restoration.

Standards:

Complies with standard EN 751-3: “Sealing materials for threaded connections in contact with gases of the 1st, 2nd, and 3rd families and hot water – Part 3: Unsintered PTFE tapes.”
Raw material listed in the positive lists (Synoptic 8): may therefore be used in water systems intended for human consumption (drinking water).
