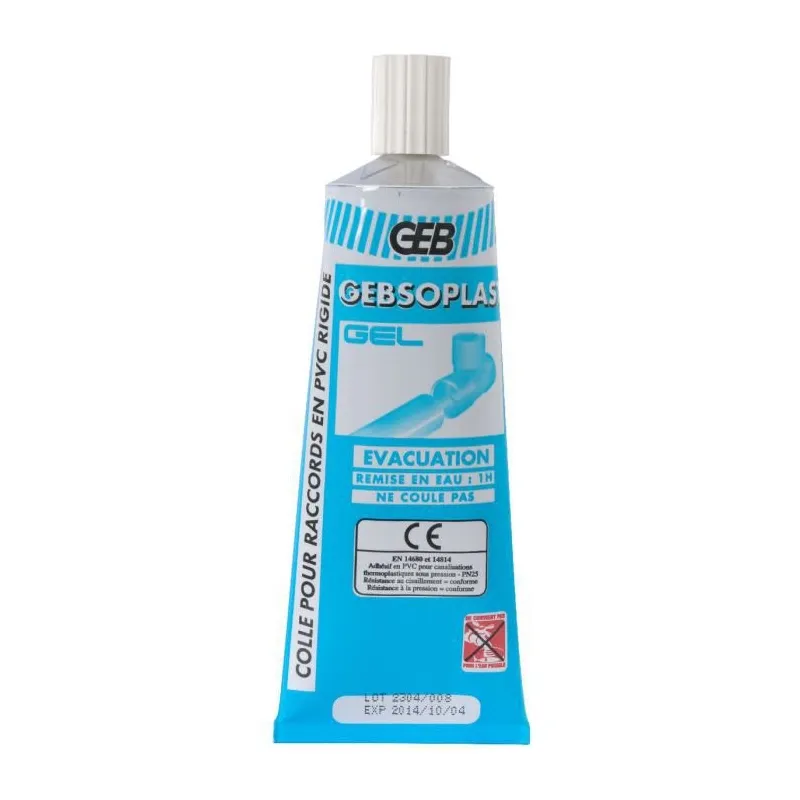

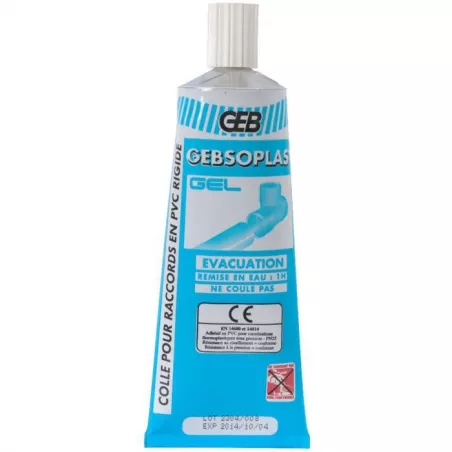

GEBSOPLAST GEL Special PVC Adhesive for Drainage Systems 125 ml

Technical specifications:

• Appearance: Thixotropic gel (does not run when applied vertically)
• Density at 20°C: 0.9
• Solids content: 20%
• Brookfield viscosity at 20°C: 15 Pa·s
• Temperature resistance: 90°C
• Shear strength after 480 hours of curing: 3.0 MPa (EN 14680)
• Required drying times:
  - Pressure: 1 hour for repairs with a diameter <90 mm, 24 hours in all other cases
  - Drainage: 1 hour

Application:

• Assemblies made using GEBSOPLAST GEL adhesive must be carried out under the following
  conditions: (Excerpts from DTU 60-31, -32, -33 CH 3.21). The application temperature must be between +5°C and +35°C.

Preparation:

• Check for the presence of a chamfer at the end of the male end of the pipe or fitting. If the pipe is cut on-site, recreate this chamfer using a file or any other method that produces the same profile.
• To ensure the male end fits fully into the socket, measure and mark the depth of the socket on the male end of the pipe or fitting using a grease pencil or marker.
• To remove the surface layer from the components, rotate the parts to be joined (male end and socket) while sanding them with fine-grit sandpaper: the use of a file, rasp, or saw blade is strictly prohibited for this operation.

Instructions:

• Clean both parts to be joined using a clean cloth soaked in GEBSOPLAST STRIPPER; take care not to remove the markings during this process.
• Be sure to remove all traces of moisture from the parts to be glued using a clean, dry cloth.
• Using a brush, apply a generous and even coat of adhesive, first to the socket opening, then to the entire length of the male end, finishing in the longitudinal direction.
• Since the adhesive dries relatively quickly, immediately fit the two parts together firmly, pushing lengthwise without twisting, up to the mark you initially drew.
• Immediately clean off any excess adhesive after bonding using a clean cloth (once the adhesive has dried, it is more difficult to remove the excess).
• In all cases, it is necessary to allow for a minimum drying time before handling the assembly to prevent any relative movement of the parts.
• To prevent excessive evaporation of volatile solvents, make sure to tightly close the containers holding the adhesive and stripper between uses.

Standards:

• CE Marking: DoP No. 21046572-1
• CSTB Certified: Certificate No. 209 – 11 – AD02
• Drinking Water Compatibility: Does not comply with current French positive lists
