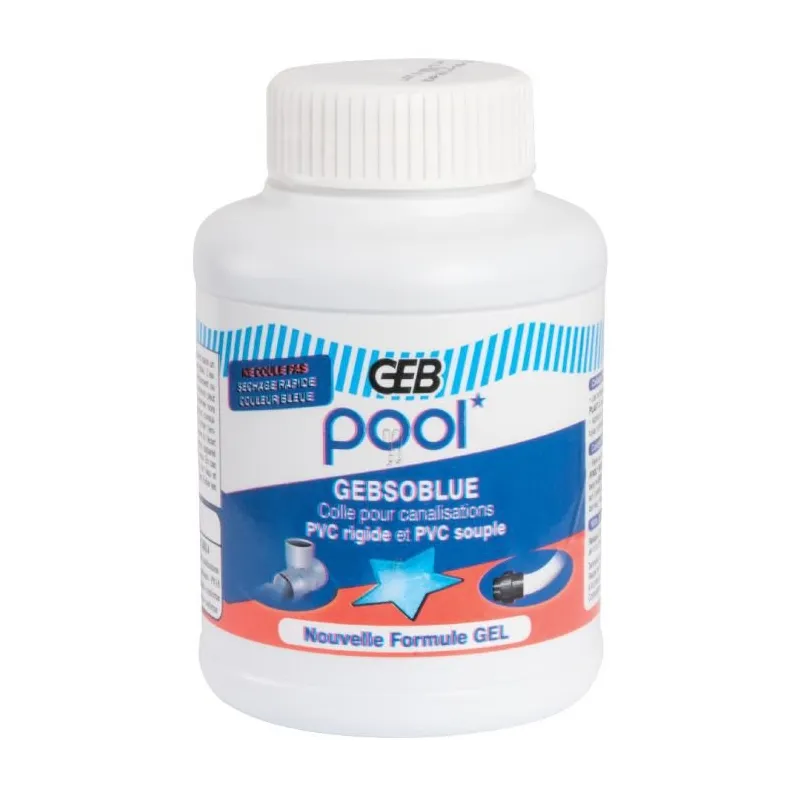

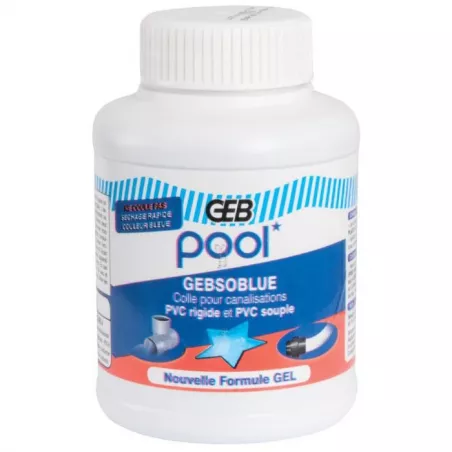

GEBSOBLUE Special PVC Adhesive for Swimming Pools

Technical specifications:

• Appearance: Deep blue gel
• Density at 20°C: 0.9
• Brookfield viscosity at 20°C: 15,000 cps
• Shear strength after 24 hours of curing: 5.2 MPa (NF T 54-096)
• Pressure resistance: 40 bar
• Temperature resistance: 90°C



Application:

• Assemblies made using POOLGEBSOBLUE adhesive must be carried out under the following conditions: (Excerpts from DTU 60-31, -32, -33 CH 3.21).
• The application temperature must be between +5°C and +35°C.

Preparation:

• Check for the presence of a chamfer at the end of the male end of the pipe or fitting. If the pipe is cut on-site, recreate this chamfer using a file or any other method that produces the same profile.
• To ensure the male end fits fully into the socket, measure and mark the depth of the socket on the male end of the pipe or fitting using a grease pencil or marker.
• To remove the surface layer from the components, rotate the parts to be joined (male end and socket) while sanding them with fine-grit sandpaper: the use of a file, rasp, or saw blade is strictly prohibited for this operation.

Instructions:

• Clean the two components to be joined using a clean cloth soaked in POOL DECAPANT UNIVERSEL cleaner; take care not to remove the markings during this process.
• Apply a thin, even layer of adhesive without excess, spreading it thoroughly with a brush—first on the socket opening, then over the entire male end, finishing in the longitudinal direction.
• Since the adhesive dries relatively quickly, immediately push the two parts together all the way, applying pressure lengthwise without twisting, until they reach the mark you made earlier.
• In all cases, it is necessary to allow a minimum drying time of 10 minutes before handling the assembly to prevent any movement of the parts relative to each other.
• To prevent excessive evaporation of volatile solvents, ensure that the containers holding the adhesive and stripper are tightly closed between uses.

Standards:

• CE Marking: DoP No. 21047001-1
• Complies with EN14680 and EN14814 standards
