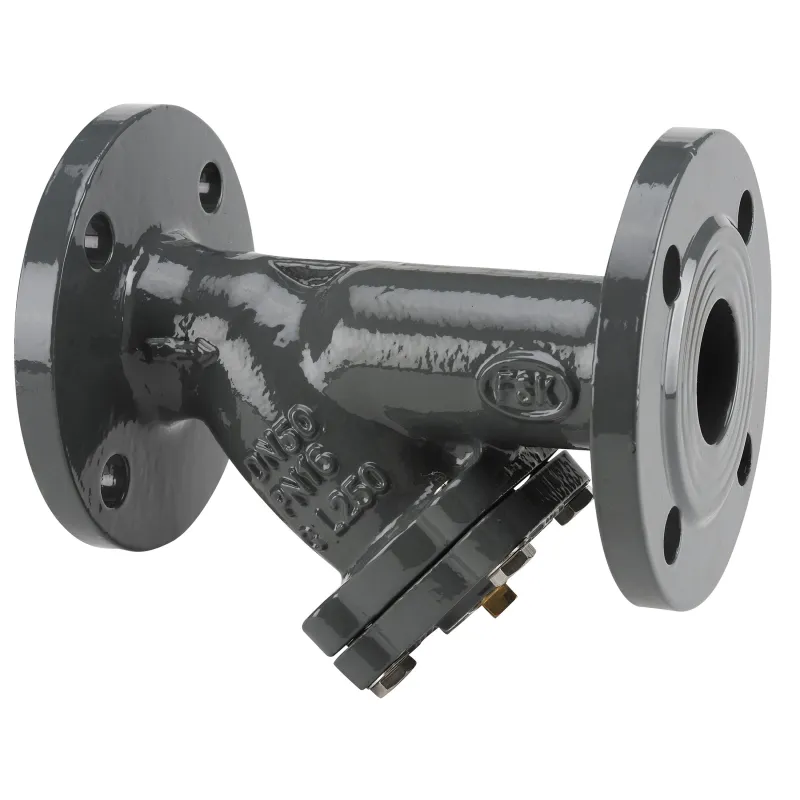

Cast iron flanged Y-strainer dn 15

Name: Cast iron flanged Y-strainer dn 15
Brand: THERSANE
SKU: 22000F00PN16015
Price: 35.53 EUR
Availability: InStock

Filtres à brides

Photos non contractuelles

Cast iron Y-strainer with flanges, PN10/16

Application:

For water supply, sewerage, water treatment, irrigation, and heating systems
Minimum permissible temperature Ts: -10 °C
Maximum permissible temperature Ts: +120°C
Maximum allowable pressure Ps: 16 bar up to DN200 at 120°C, 10 bar above that

Available in: R.F. PN10/16 flanges from DN 15 to DN 400

Observe the flow direction indicated on the body by an arrow CCPU
3.1 certificate: click here

Plus de détails

dn 15

Are you an individual?

Are you a professional?

€35.53 Tax included

29.61 € tax excl.

Unité de vente : Pièce

Reference : 22000F00PN16015

Diameter DN: DN 15

Quantity

Consulter les produits disponibles sous forme de liste

Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Your PRO THERSANE access

Ranges / Conditions / Benefits

View benefits

FREE SHIPPING

From €150 incl. VAT

For a cart not exceeding 30Kg

NEED HELP?

(+33) 04 28 54 00 69

Certificates materials pour Cast iron flanged Y-strainer

Would you like to order materials that require a material certificate?

Here are the steps to follow :

1. Add product to cart.

2. Vérifiez que la référence produit actuellement sélectionnée corresponde au produit concerné et ajoutez au panier le material certificate desired).

Currently selected product reference : --

CCPU 2.1 Material Certificate

5.2 € HT

CCPU 2.2 Material Certificate

6.5 € HT

CCPU 3.1 Material Certificate

16.25 € HT

Complément d'information Cast iron flanged Y-strainer

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Features:

Removable stainless steel strainer
With PN10/16 R.F. flanges
Horizontal or vertical installation with downward flow (follow the flow direction indicated by an arrow on the body)
Filtration: 1.1 mm for DN15 to 125, 1.5 mm for DN150 to 300, and 3 mm for DN350 to 400,
Bolted cover with BSP threaded drain plug
Epoxy paint, 150 μm thick, RAL 7011

Construction:

Body and cap: EN GJL-250 cast iron
Bolted cap with brass drain plug, BSP threaded
Cap gasket: Graphite
Removable stainless steel screen, ASTM A182 F304
Fasteners: 304 stainless steel
Sizes: DN 15 to DN 400
Connection: PN10/16 R.F. flanges
Material: Cast iron EN GJL-250

Standardization:

Manufactured in accordance with ISO 9001:2008
DIRECTIVE 97/23/EC: CE No. 0035 Risk
Category III Module H
Female BSP cylindrical threaded connection in accordance with ISO 228/1

Nominal Ø	15	20	25	32	40	50	65	80	100	125	150
PS	16	16	16	16	16	16	16	16	16	16	16
PN	16	16	16	16	16	16	16	16	16	16	16
Mesh (mm)	11/10	11/10	11/10	11/10	11/10	11/10	11/10	11/10	11/10	11/10	15/10°
Drain	1/4"	1/4"	1/2"	1/2"	1/2"	1/2"	1/2"	1/2"	1/2"	1/2"	3/4"
Spacing	130	150	160	180	200	230	290	310	350	400	480

Nominal Ø	200/PN16	200	250	250/PN16	300	300/PN16	350	400
PS	16	16	16	16	16	16	16	16
PN	16	16	16	16	16	16	16	16
Mesh (mm)	15/10°	15/10°	15/10°	15/10°	15/10°	15/10°	30/10°	30/10°
Drain	3/4"	3/4"	3/4"	3/4"	3/4"	3/4"	1/2"	1/2"
Spacing	600	600	730	730	850	850	980	1100

Caractéristiques techniques Cast iron flanged Y-strainer

Data sheet

Reference: 22000F00PN16015
Type de clapet / filtre: Horizontal Vertical avec fluide ascendant
Crépine / tamis: Inox ASTM A182 F304
Maille et filtration: En fonction du modèle choisi
Corps: Fonte EN GJL-250
Chapeau: Fonte EN GJL-250
Joint: Graphite
Entraxe: Écartement EN558 série 1 (DIN 3202 ) - NF 29354
Type de raccordement: En fonction du modèle choisi
Diamètre: En fonction du modèle choisi
Pression de service: En fonction du modèle choisi
Température minimum: -10°C
Température maximum: 120°C
Fluide admissible: Arrosage et irrigation Eau chauffage Eau glacée et climatisation réseaux d'adduction et distribution d'eau
Normes et certifications: ISO 9001 DNV
Normalisation: Directive 2014/68/UE : produits exclus (article 1, § 2b)
Équipements: Bouchon
Possibilité de certificat 3.1: Oui
Unité de vente: Pièce
Garantie fabricant: 1 an

Specific References

ean13: 3598780011547

Download documentation

NM filtres à brides

Notice montage filtres à brides

Download (38.18KB)

FT 220

Fiche technique Filtre à tamis en Y fonte à brides 220

Download (1.65MB)

Accessoires et équipements (vendus séparément)

Quick view

Caractéristiques liées à la version du produit Cast iron flanged Y-strainer

Voici la liste des références et poids correspondants aux options séléctionnées.

22000F00PN16015 - Cast iron flanged Y-strainer - DN 15

Diameter DN	DN 15
Packed weight	2,415kg

29.61 € tax excl.

Référence - Désignation	Diameter DN	Packed weight	Prix
22000F00PN16015 - Cast iron flanged Y-strainer - DN 15	DN 15	2,415kg	29.61 € tax excl.
22000F00PN16020 - Cast iron flanged Y-strainer - DN 20	DN 20	3,15kg	33.25 € tax excl.
22000F00PN16025 - Cast iron flanged Y-strainer - DN 25	DN 25	3,99kg	34 € tax excl.
22000F00PN16032 - Cast iron flanged Y-strainer - DN 32	DN 32	5,355kg	45.99 € tax excl.
22000F00PN16040 - Cast iron flanged Y-strainer - DN 40	DN 40	6,615kg	47.03 € tax excl.
22000F00PN16050 - Cast iron flanged Y-strainer - DN 50	DN 50	8,085kg	54.8 € tax excl.
22000F00PN16065 - Cast iron flanged Y-strainer - DN 65	DN 65	11,97kg	79.04 € tax excl.
22000F00PN16080 - Cast iron flanged Y-strainer - DN 80	DN 80	14,91kg	97.34 € tax excl.
22000F00PN16100 - Cast iron flanged Y-strainer - DN 100	DN 100	19,425kg	127.11 € tax excl.
22000F00PN16125 - Cast iron flanged Y-strainer - DN 125	DN 125	29,925kg	201.37 € tax excl.
22000F00PN16150 - Cast iron flanged Y-strainer - DN 150	DN 150	41,16kg	272.87 € tax excl.
22000F00PN10200 - Cast iron flanged Y-strainer - DN 200	DN 200	101,85kg	445.74 € tax excl.
22000F00PN16200 - Cast iron flanged Y-strainer - DN 200/PN16	DN 200/PN16	64,26kg	445.74 € tax excl.
22000F00PN10250 - Cast iron flanged Y-strainer - DN 250	DN 250	121,38kg	790.04 € tax excl.
22000F00PN16250 - Cast iron flanged Y-strainer - DN 250/PN16	DN 250/PN16	171,675kg	790.04 € tax excl.
22000F00PN10300 - Cast iron flanged Y-strainer - DN 300	DN 300	163,275kg	972.4 € tax excl.
22000F00PN16300 - Cast iron flanged Y-strainer - DN 300/PN16	DN 300/PN16	245,175kg	972.4 € tax excl.
22000F00PN16350 - Cast iron flanged Y-strainer - DN 350	DN 350	277,2kg	2089.17 € tax excl.
22000F00PN16400 - Cast iron flanged Y-strainer - DN 400	DN 400	485,1kg	2769.75 € tax excl.
