Brass ball valve with built-in filter 1/2" (15/21)

Filtres Taraudés
Vanne à sphère laiton avec filtre incorporé
search
  • Vanne à sphère laiton avec filtre incorporé
  • NOMENCLATURE 619
  • DIMENSIONS ( en mm ) 619
  • POSITIONS DE MONTAGE 619
  • COEFFICIENT DE DEBIT Kvs ( M3-h ) et COURBE PRESSION-TEMPERATURE 619

Photos non contractuelles

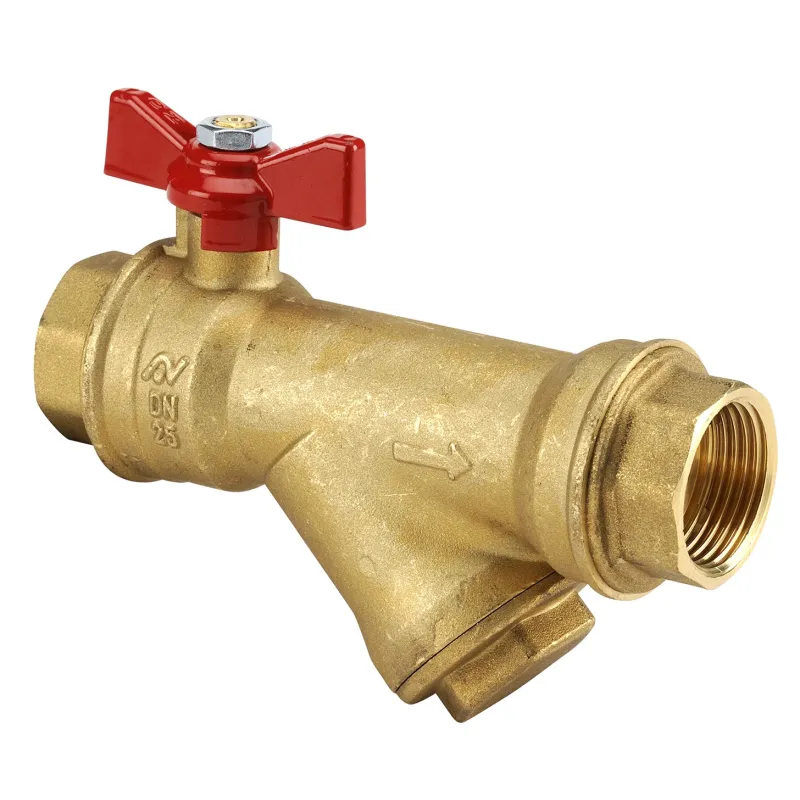

Brass ball valve with built-in filter

Brass ball valve

Uses:

  • Heat pumps
  • Compatible common fluids
  • Minimum permissible temperature Ts: -10°C
  • Maximum permissible temperature Ts: +110°C
  • Maximum allowable pressure Ps: 16 bar (see curve)

Available in:
Female / Female BSP cylindrical threaded with red butterfly handle from 1/2" to 1-1/4"

Plus de détails
Normes et certifications : CermetNormes et certifications : SincertType de raccordement : Á visser BSP (pas du gaz)1
1/2" (15/21)
Are you an individual?
Are you a professional?

Log in to find out your discount.

€30.38 Tax included

25.32 € tax excl.

Unité de vente : Pièce
61900L000BFF015
Diameter (in inches): 1/2" (15/21)
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information Brass ball valve with built-in filter

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Technical specifications:

  • Removable stainless steel cartridge
  • Non-ejectable shaft
  • Solid ball
  • 5/10 mm filtration (500 microns)
  • Aluminum butterfly valve control
  • Horizontal or vertical downward installation (follow the flow direction indicated by an arrow on the body)

Construction:

  • Body made of CW617N brass
  • CW617N brass ball
  • EPDM O-ring
  • Screen: ASTM A182 F304 stainless steel
  • Dimensions: DN 1/2" to 1-1/4"
  • Connection: Female - Female BSP
  • Material: Brass

Standardization:

  • Manufactured in accordance with ISO 9001:2008
  • DIRECTIVE 97/23/EC: Products excluded from the directive (Article 1, § 3.2)
  • Cylindrical BSP female thread in accordance with UNI ISO 228-1

Nominal Ø 1/2" 3/4" 1" 1-1/4"
PS 16 16 16 16
Mesh (mm) 5/10 5/10° 5/10 5/10°
Height 98 120 148 148

Caractéristiques techniques Brass ball valve with built-in filter

Data sheet

Reference
61900L000BFF015
Type de vanne
RBS (robinet à boisseau sphérique)
Type de clapet / filtre
Horizontal Vertical avec fluide ascendant
Crépine / tamis
Inox ASTM A182 F304
Maille et filtration
5/10°
Corps
Laiton titré CW617N
Obturateur
laiton
Axe
Joint d'axe EPDM
Commande
Couleur rouge Poignée papillon
Entraxe
En fonction du modèle choisi
Type de raccordement
Á visser BSP (pas du gaz)
Raccordement
FF (femelle - femelle)
Diamètre
En fonction du modèle choisi
Pression de service
16B
Température minimum
-10°C
Température maximum
110°C
Fluide admissible
Fluides courants compatibles Pompe à chaleur
Normes et certifications
Cermet Sincert
Normalisation
Directive 2014/68/UE : produits exclus (article 1, § 2b)
Équipements
Filtre
Unité de vente
Pièce
Garantie fabricant
1 an

Specific References

ean13
8027704009971

Download documentation

FT 619

Fiche technique Vanne à sphère laiton avec filtre incorporé 619

Download (877.17KB)

Caractéristiques liées à la version du produit Brass ball valve with built-in filter

Voici la liste des références et poids correspondants aux options séléctionnées.
61900L000BFF015 - Brass ball valve with built-in filter - 1/2" (15/21)
Diameter (in inches) 1/2" (15/21)
Packed weight 0,37905kg
25.32 € tax excl.
Consulter
61900L000BFF020 - Brass ball valve with built-in filter - 3/4" (20/27)
Diameter (in inches) 3/4" (20/27)
Packed weight 0,62475kg
37.28 € tax excl.
Consulter
61900L000BFF025 - Brass ball valve with built-in filter - 1" (26/34)
Diameter (in inches) 1" (26/34)
Packed weight 0,966kg
39.29 € tax excl.
Consulter
61900L000BFF032 - Brass ball valve with built-in filter - 1"1/4 (33/42)
Diameter (in inches) 1"1/4 (33/42)
Packed weight 1,00905kg
42.77 € tax excl.
Consulter
Référence - Désignation Diameter (in inches) Packed weight Prix
61900L000BFF015 - Brass ball valve with built-in filter - 1/2" (15/21) 1/2" (15/21) 0,37905kg 25.32 € tax excl.
61900L000BFF020 - Brass ball valve with built-in filter - 3/4" (20/27) 3/4" (20/27) 0,62475kg 37.28 € tax excl.
61900L000BFF025 - Brass ball valve with built-in filter - 1" (26/34) 1" (26/34) 0,966kg 39.29 € tax excl.
61900L000BFF032 - Brass ball valve with built-in filter - 1"1/4 (33/42) 1"1/4 (33/42) 1,00905kg 42.77 € tax excl.
