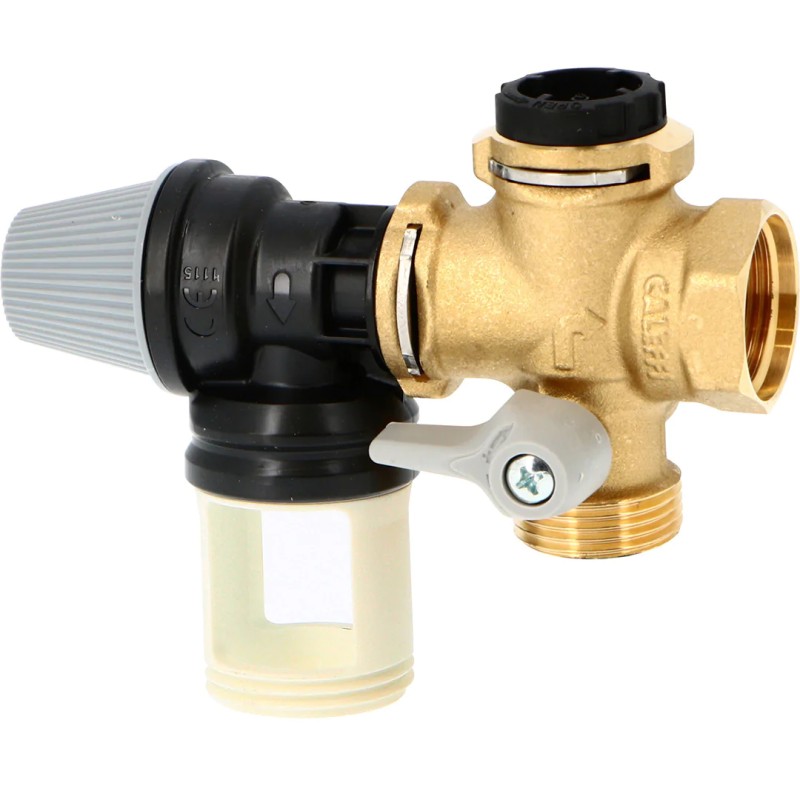

X-CROSS multi-position safety group for water heaters

Application:

NF anti-pollution unit for vertical or horizontal water heaters (max 10 kW). With check valve, isolation valve and a technopolymer valve with heavy-duty seat set at 7 bar.

3/4" connection, equipped with check valve, shut-off valve and 7-bar valve in compliance with French standard EN 1487.

EN 1491-approved technopolymer valve with heavy-duty seat prevents sticking, corrosion and scale build-up. These safety groups are certified by CSTB and BELGAQUA as required by European standard EN1487.

Used on domestic hot water systems to protect storage water heaters against overpressure.

These safety groups are certified by CSTB and BELGAQUA as required by European standard EN1487.

The installation of a pressure reducer set at 3 bar is recommended (R5331 reducer with swivel nut). If mains pressure exceeds 5 bar, a pressure reducer is required.

Plus de détails
Normes et certifications : Certification ACSNormes et certifications : NF
Are you an individual?
Are you a professional?

Log in to find out your discount.

€37.72 Tax included

31.43 € tax excl.

Unité de vente : Pièce
GSMXC0000000020
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information X-CROSS multi-position safety group

Functional characteristics :

  • Medium: water
  • Max. operating temperature: 120°C
  • Max. working pressure: 10 bar
  • Safety valve set pressure: 7 bar
  • Drain rate at 8.4 bar: > 650 l/h

Connection :

  • 3/4" inlet (ISO 228-1)
  • outlet 3/4" (ISO 228-1)
  • 1" drain

Construction :

  • Body: brass EN 12165 CW617N
  • Ball valve: brass EN 12164 CW614N
  • Check valve: PPAG40
  • Obturator: PPSU (polyphenylsulfone)
  • Safety valve: PPSU
  • Seals: EPDM
  • Safety valve spring: stainless steel EN 10270-1
  • Check valve spring: stainless steel EN 10270-3 (AISI 302)

Standardization :

  • Check valve, isolation valve and tared valve in compliance with French standard EN 1487
  • Technopolymer valve EN 1491 approved
  • These safety groups are certified by CSTB and BELGAQUA as required by European standard EN1487.

Caractéristiques techniques X-CROSS multi-position safety group

Data sheet

Reference
GSMXC0000000020
Corps
Laiton titré CW617N
Obturateur
PPSU (polyphénylsulfone)
Joint
EPDM
Raccordement
MF (mâle - femelle)
Diamètre
3/4"
Pression maximum
10 bar
Température maximum
120°C
Fluide admissible
Eau
Normes et certifications
Certification ACS NF
Unité de vente
Pièce

Download documentation

FT GS20XC

Fiche technique groupe de sécurité multiposition X-CROSS pour chauffe-eau

Download (800.47KB)

NM GS20XC

Notice montage groupe de sécurité multiposition X-CROSS pour chauffe-eau

Download (127.81KB)
