Motorized heating and cooling zone valve for P.A.C 1" (26/34) 40

Interface PAC et installation bouteille ou vanne
Vanne de zone chauffage et rafraichissement motorisée pour P.A.C
search
  • Vanne de zone chauffage et rafraichissement motorisée pour P.A.C

Photo non contractuelle

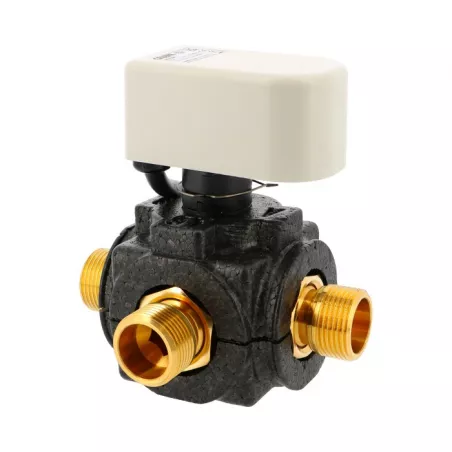

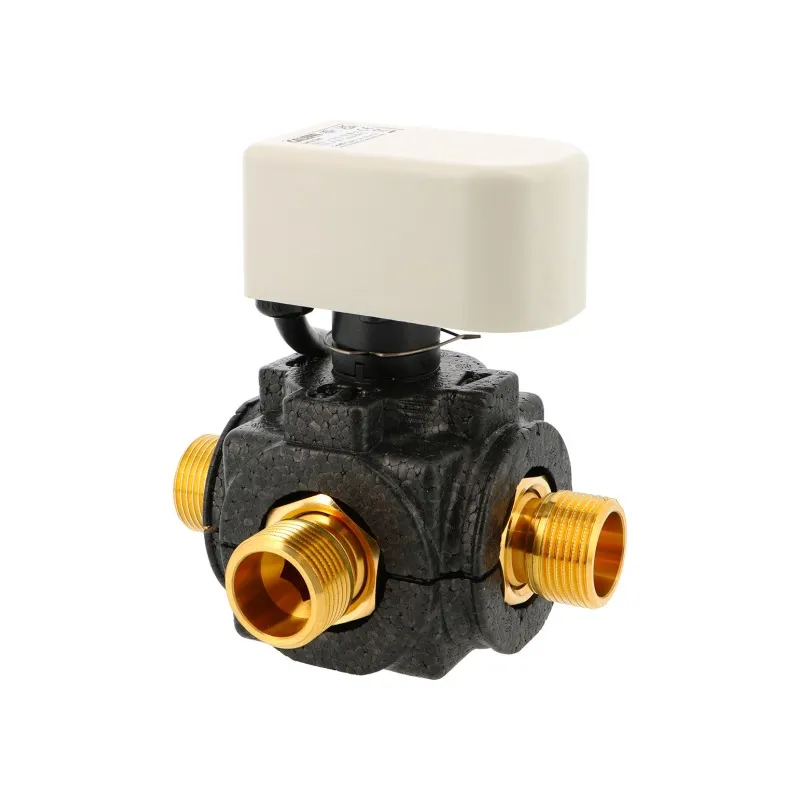

Motorized heating and cooling zone valve

Function:

The motorized directional valve automatically diverts fluid in heating and cooling systems. Its high hydraulic performance, compact dimensions and front-mounted common channel make it particularly suitable for air-conditioning/heat pump systems with domestic hot water production.

Plus de détails
1" (26/34) 40
Are you an individual?
Are you a professional?

Log in to find out your discount.

€288.41 Tax included

240.34 € tax excl.

Unité de vente : Pièce
VDC0000003V26CF
Opening time (seconds): 40
Diameter (in inches): 1" (26/34)
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information Motorized heating and cooling zone valve for P.A.C

Technical data

Materials
  • Valve body
  • Body: brass EN 12165 ADZ CW602N-M
  • Sphere: brass EN 12165 ADZ CW617N
  • Ball seal: PTFE with EPDM O-ring
  • Control shaft seal: double EPDM O-ring
  • Union gasket: EPDM O-ring
  • Servomotor
  • Protective cover: self-extinguishing polycarbonate
  • Color: gray RAL 9002
Performance
  • Valve body
  • Medium: water, glycol solutions
  • Max. percentage of glycol: 50
  • Max. working pressure: 10 bar
  • Operating temperature range: -5 / +110 °C
  • Max. differential pressure: 10 bar
  • Connections: 1" M union (ISO 228-1)
  • Servomotor
  • Synchronous motor
  • Power supply: 230 V - 50/60 Hz
  • Power consumption: 4 VA
  • Auxiliary contact rating: 0.8 A (230 V)
  • Protection class: IP 44 (vertical control axis) and IP 40 (horizontal control axis) VDC3V26CF: 40 s and VDC3V26CF10: 10 s
  • Operating time (90° angle of rotation):
  • Ambient temperature range: 0 / +55 °C
  • Dynamic starting torque: 8 N-m
  • Power cable length: 100 cm
  • Conformity: EN 60730-1 - EN 60730-2-14 2014/35/CE - 2014/30/CE
  • Insulating shell
  • Material: lPPE closed-cell foam
  • Density: 40 kg/m3
  • Thermal conductivity: 0.037 W/(m-K) (at 10°C)
  • Reaction to fire (DIN 4102-1): class B2

Caractéristiques techniques Motorized heating and cooling zone valve for P.A.C

Data sheet

Reference
VDC0000003V26CF
Matière
Laiton
Corps
Laiton
Joint
EPDM PTFE
Raccordement
Mâle
Diamètre
1"
Pression maximum
10 bar
Température minimum
-5°C
Température maximum
110°C
Fluide admissible
Eau Eau glycolée
Tension électrique
230V AC
Fréquence
50 / 60Hz
Indice de protection
IP42 IP44
Unité de vente
Pièce

Download documentation

FT VDC3V26CF

Fiche Technique VDC3V26CF

Download (4.64MB)

Caractéristiques liées à la version du produit Motorized heating and cooling zone valve for P.A.C

Voici la liste des références et poids correspondants aux options séléctionnées.
VDC0000003V26CF - Motorized heating and cooling zone valve for P.A.C - 40 - 1" (26/34)
Opening time (seconds) 40
Diameter (in inches) 1" (26/34)
Packed weight 1,8kg
240.34 € tax excl.
Consulter
VDC00003V26CF10 - Motorized heating and cooling zone valve for P.A.C - 10 - 1" (26/34)
Opening time (seconds) 10
Diameter (in inches) 1" (26/34)
Packed weight 1,8kg
244.92 € tax excl.
Consulter
Référence - Désignation Opening time (seconds) Diameter (in inches) Packed weight Prix
VDC0000003V26CF - Motorized heating and cooling zone valve for P.A.C - 40 - 1" (26/34) 40 1" (26/34) 1,8kg 240.34 € tax excl.
VDC00003V26CF10 - Motorized heating and cooling zone valve for P.A.C - 10 - 1" (26/34) 10 1" (26/34) 1,8kg 244.92 € tax excl.
