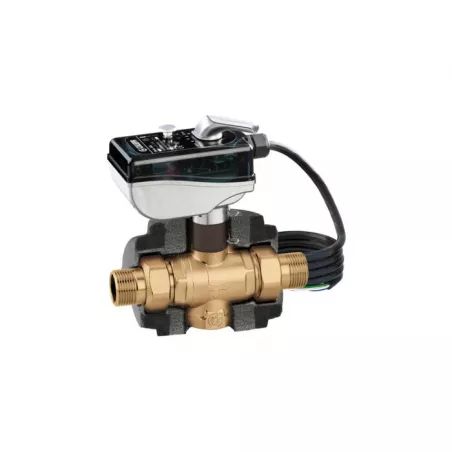

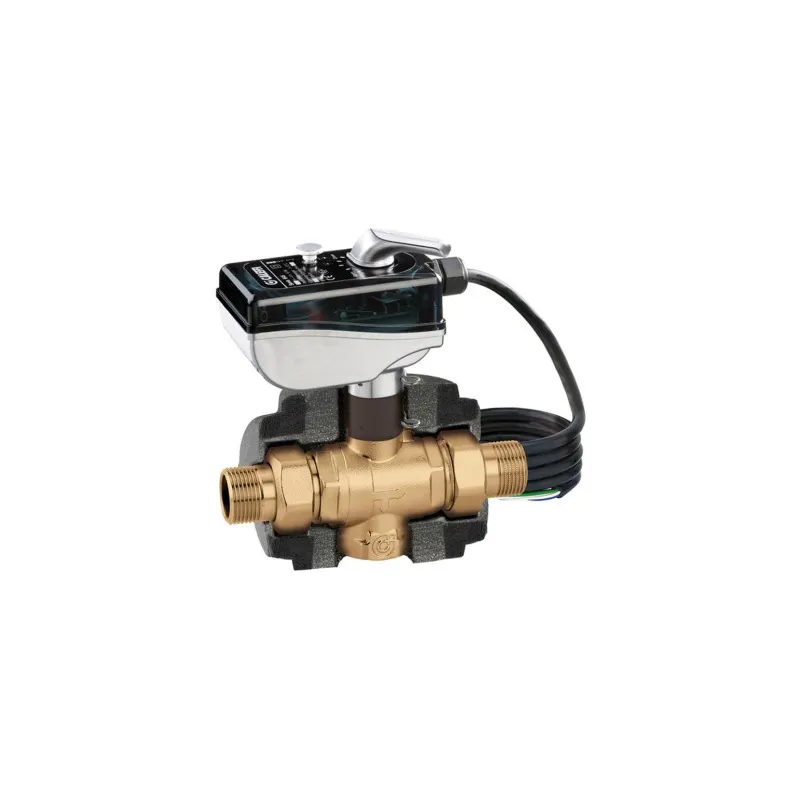

Motorized ball valve, directional heating and cooling P.A.C 1"1/4 (33/42)

Interface PAC et installation bouteille ou vanne
Vanne à sphère motorisées, directionnelle chauffage et rafraichissement P.A.C
search
  • Vanne à sphère motorisées, directionnelle chauffage et rafraichissement P.A.C

Photo non contractuelle

P.A.C. heating and cooling directional valve

Function:

Motorized ball valves automatically shut off or divert fluid in heating and air-conditioning systems. High-level hydraulic performance, reduced dimensions and a common channel in the front position make them particularly suitable for air-conditioning/heat pump systems with domestic hot water production.
Plus de détails
1"1/4 (33/42)
Are you an individual?
Are you a professional?

Log in to find out your discount.

€435.71 Tax included

363.09 € tax excl.

Unité de vente : Pièce
VDC3V00000033CF
Diameter (in inches): 1"1/4 (33/42)
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information Motorized ball valve, directional heating and cooling P.A.C

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Technical data

Materials
  • Valve body
  • Body: brass EN 12165 CW617N
  • Sphere: brass EN 12165 CW617N, chrome-plated
  • Ball seal: PTFE with EPDM O-ring
  • Control stem seal: double EPDM O-ring
  • Union gasket: EPDM O-ring
Ambient conditions (valve + actuator)
  • Fluid temperature range: -10/ +110 °C
  • Operation: -10/ +55 °C EN 60721-3-3 Cl. 3K4, max. humidity 95%
  • Transport: -30/ +70 °C EN 60721-3-2 Cl. 2K3, max. humidity 95% Storage: -20/ +70 °C EN 60721-3-3-3 Cl. 3K4, max. humidity 95
  • Storage: -20/ +70 °C EN 60721-3-1 Cl. 1K2, max. 95% humidity
Performance
  • Valve body
  • Medium: water, glycol solutions
  • Max. percentage of glycol: 50
  • Max. working pressure: 16 bar
  • Max. differential pressure: 10 bar
  • Connections: union 1 1/4", 1 1/2" M (ISO 7-1) bottom connection 1 1/4", 1 1/2" F (ISO 228-1)

Servomotor

  • Synchronous motor
  • Power supply: 230 V (~)
  • Power consumption: 6 VA
  • Auxiliary contact rating: 6 (2) A (230 V)
  • Protection class: IP 65
  • Operating time (angle of rotation 90°): 50 s
  • Dynamic starting torque: 15 N-m
  • Supply cable length: 0.8 m
  • Insulating shell
  • Material: closed-cell expanded PE-X
  • Thickness: 15 mm
  • Density: 40 kg/m3
  • Thermal conductivity: inner part: 30 kg/m3 and outer part: 80 kg/m3, 0.038 W/(m-K) (at 0°C) and 0.045 W/(m-K) (at 40°C)
  • Vapor diffusion resistance coefficient (ISO 12572): >1300 μ
  • Temperature range: -10/ +110 °C
  • Reaction to fire (DIN 4102-1): class B2

Caractéristiques techniques Motorized ball valve, directional heating and cooling P.A.C

Data sheet

Reference
VDC3V00000033CF
Matière
Laiton
Corps
Laiton
Joint
EPDM PTFE
Pression maximum
16 bar
Température minimum
-10°C
Température maximum
110°C
Fluide admissible
Eau Eau glycolée
Indice de protection
IP65
Unité de vente
Pièce

Download documentation

FT VDC3V33CF

Fiche Technique VDC3V33CF

Download (1.52MB)

Caractéristiques liées à la version du produit Motorized ball valve, directional heating and cooling P.A.C

Voici la liste des références et poids correspondants aux options séléctionnées.
VDC3V00000033CF - Motorized ball valve, directional heating and cooling P.A.C - 1"1/4 (33/42)
Diameter (in inches) 1"1/4 (33/42)
Packed weight 3,2kg
363.09 € tax excl.
Consulter
VDC3V00000040CF - Motorized ball valve, directional heating and cooling P.A.C - 1"1/2 (40/49)
Diameter (in inches) 1"1/2 (40/49)
Packed weight 6,5kg
607.98 € tax excl.
Consulter
Référence - Désignation Diameter (in inches) Packed weight Prix
VDC3V00000033CF - Motorized ball valve, directional heating and cooling P.A.C - 1"1/4 (33/42) 1"1/4 (33/42) 3,2kg 363.09 € tax excl.
VDC3V00000040CF - Motorized ball valve, directional heating and cooling P.A.C - 1"1/2 (40/49) 1"1/2 (40/49) 6,5kg 607.98 € tax excl.
