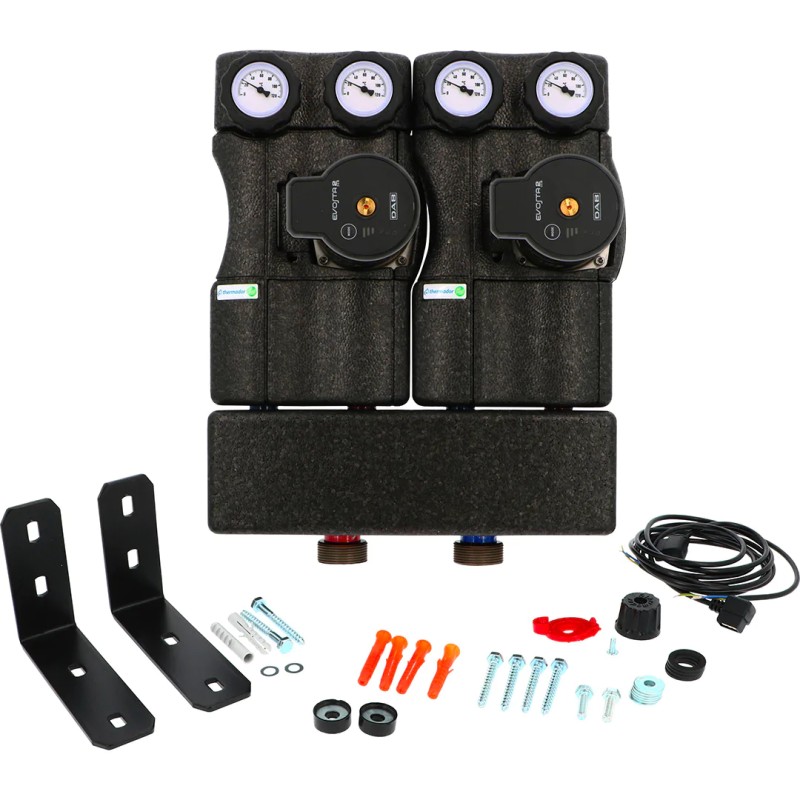

  • Modulfit Compact DN20 hydraulic assembly - pump and manifold

Photo non contractuelle

MODULFIT XS direct and mixed hydraulic units with circulator and manifold.

Application:

The MODULFIT XS hydraulic unit ensures efficient fluid management in modern heating and cooling systems, optimizing the performance of generators such as heat pumps.

Key features include perfect circulation and excellent insulation.

This flexible hydraulic module adapts to different generator sizes, improving their efficiency, and is ideally suited to all energy distribution systems, heating and/or cooling via various equipment (floors, ceilings, walls, fan coil units and radiators).

Equipped with circulator and separator

Plus de détails
Are you an individual?
Are you a professional?

Log in to find out your discount.

€1,110.88 Tax included

925.73 € tax excl.

Unité de vente : Pièce
GHBEHMXS0000000
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information Modulfit Compact DN20 hydraulic assembly - pump and manifold

Technical data:

  • Working pressure: 1÷10bar (100÷1000kPa)
  • Working temperature: 5-95°C (120°C with additives)
  • Fluid: Water, Water + glycol max. 30% Power supply: 230 V (±10%), 50 / 60Hz
  • Power supply: 230 V (±10%), 50 / 60Hz
  • Max. flow rate, direct modules: 2100L/h .Kv 4,5
  • Max. flow mixed modules: 2000L/h .Kv 3.6
  • Max. power of direct modules : ΔT 8°C .17kW / ΔT 10°C .21kW / ΔT 15°C .32kW / ΔT 20°C .42kW
  • Max. power mixed modules : ΔT 8°C .16kW / ΔT 10°C .20kW / ΔT 15°C .30kW / ΔT 20°C .40kW
  • Flow sensor sump: Ø6 mm sensor
  • Insulating cover : Black Expanded Polypropylene EPP .λ 0,040W/mK (EN 12667:2001) .45g/L (ISO 845:2006)
  • Pump insulation: complete, also lateral
  • Return pipe: copper with black cataphoresis
  • Check valve: present (excludable)
  • Reversible direct modules: right - left

Compositions

  1. Support structure
  2. Return valve and non-return valve (excl.)
  3. Return pipe
  4. Flow tap and probe sump, heating/cooling flow
  5. Pump
  6. Shut-off valve
  7. Mixing valve
  8. Insulating cover
  9. Collector
  10. Separator

    Caractéristiques techniques Modulfit Compact DN20 hydraulic assembly - pump and manifold

    Data sheet

    Reference
    GHBEHMXS0000000
    Isolation
    Polypropylène Expansé Noir EPP
    Fluide admissible
    Eau Eau glycolée
    Unité de vente
    Pièce

    Download documentation

    FT GH-20CSPXS

    Fiche technique GH-20CSPXS

    Download (1.38MB)

    NM MODULFITSPXS

    Notice de montage MODULFITSPXS

    Download (2.33MB)
