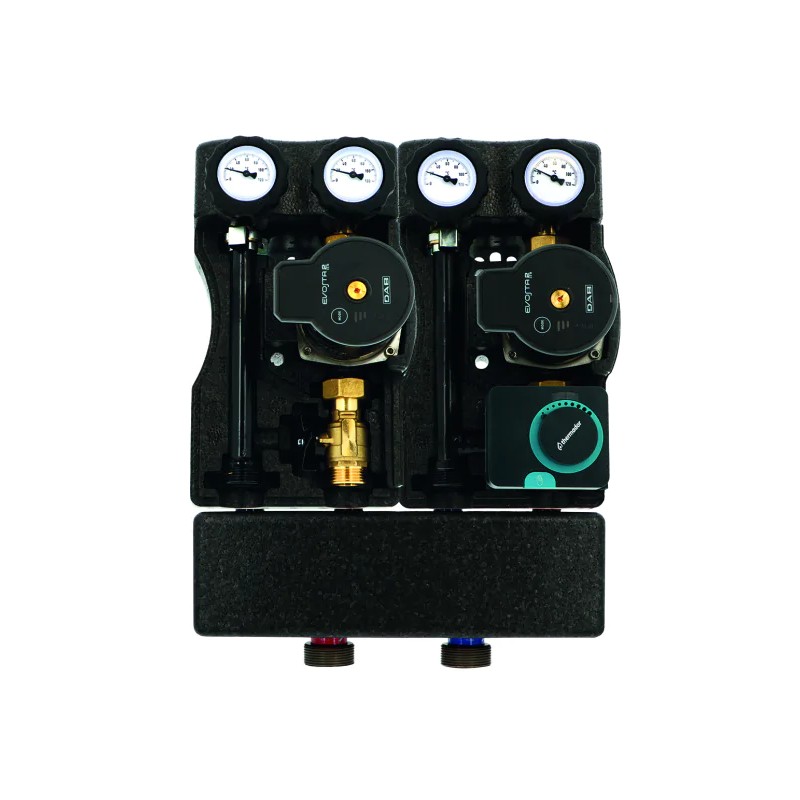

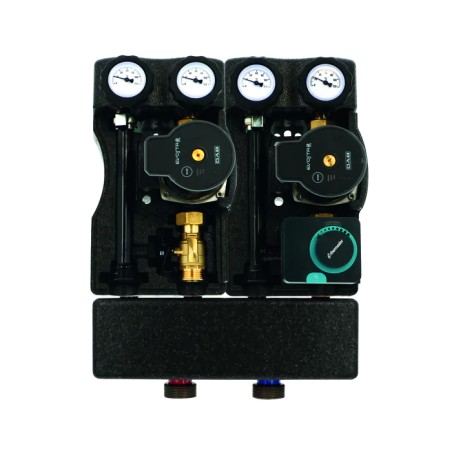

Modulfit Compact DN20 hydraulic assembly - pump, motor and manifold

Application:

Hydraulic assembly for fluid management in modern heating and cooling systems.

The Modulfit Compact hydraulic assembly consists of a direct unit, a mixed unit with motor and a hydraulic manifold.

This composition provides the hydraulic link between the heat generator and the heating or cooling circuits when hydraulic decoupling is not required.

Reinforced insulation for each component.

The maximum efficiency of a generator (e.g. a heat pump) also depends on proper management and distribution of technical water on the secondary circuit.

A flexible hydraulic module, capable of adapting to the different sizes of generators on the market today to optimize their efficiency, but also perfect for all energy distribution systems, heating and/or cooling via floors, ceilings, walls, fan coil units and radiators.

The 90mm centre-to-centre distance allows the hydraulic assembly to be installed in any boiler room, taking up minimal space.

Plus de détails
Are you an individual?
Are you a professional?

Log in to find out your discount.

€1,166.03 Tax included

971.69 € tax excl.

Unité de vente : Pièce
GRPHYMFCCMC0020
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information Modulfit Compact DN20 hydraulic unit with pump, motor and manifold

Technical data:

  • Operating pressure: 1÷10bar (100÷1000kPa)
  • Operating temperature: 5-95°C (120°C with additives)
  • Fluid: Water, Water + glycol max. 30% Power supply: 230 V (±10%), 50 / 60Hz
  • Power supply: 230 V (±10%), 50 / 60Hz
  • Max. flow rate, direct modules: 2100L/h .Kv 4,5
  • Max. flow mixed modules: 2000L/h .Kv 3.6
  • Max. power of direct modules : ΔT 8°C .17kW / ΔT 10°C .21kW / ΔT 15°C .32kW / ΔT 20°C .42kW
  • Max. power mixed modules : ΔT 8°C .16kW / ΔT 10°C .20kW / ΔT 15°C .30kW / ΔT 20°C .40kW
  • Flow sensor sump: Ø6 mm sensor
  • Insulating cover : Black Expanded Polypropylene EPP .λ 0,040W/mK (EN 12667:2001) .45g/L (ISO 845:2006)
  • Pump insulation: complete, also lateral
  • Return pipe: copper with black cataphoresis
  • Check valve: present (excludable)
  • Reversible direct modules: right - left

Compositions :

  1. Support structure
  2. Return valve with thermometer and non-return valve (excl.)
  3. Return pipe
  4. Flow tap and probe sump, heating/cooling flow
  5. Pump
  6. Shut-off valve
  7. Mixing valve
  8. Insulating cover
  9. Manifold

    Caractéristiques techniques Modulfit Compact DN20 hydraulic unit with pump, motor and manifold

    Data sheet

    Reference
    GRPHYMFCCMC0020
    Entraxe
    90 mm
    Pression maximum
    10 bar
    Température minimum
    5°C
    Température maximum
    95°C
    Fluide admissible
    Eau Eau glycolée
    Tension électrique
    230V AC
    Unité de vente
    Pièce

    Download documentation

    FT GH-20CSPXS

    Fiche technique GH-20CSPXS

    Download (1.38MB)

    NM SPXS

    Notice de montage SPXS

    Download (2.33MB)
