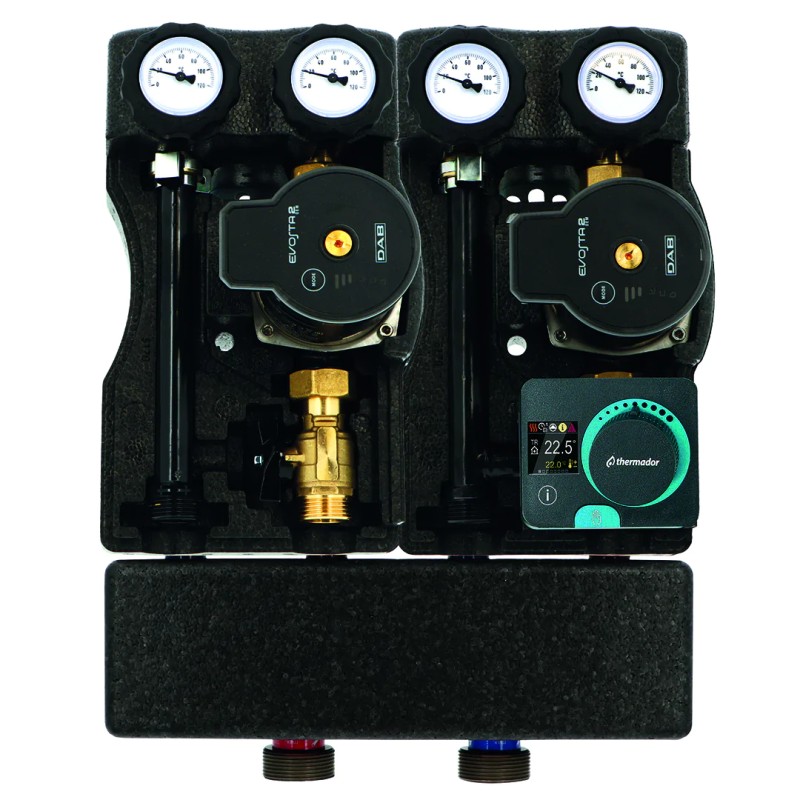

Modulfit Premium mixed compact with motor and separator

Technical data:

• Operating pressure: 1÷10bar (100÷1000kPa)
• Operating temperature: 5-95°C (120°C with additives)
• Fluid: Water, Water + glycol max. 30% Power supply: 230 V (±10%), 50 / 60Hz
• Power supply: 230 V (±10%), 50 / 60Hz
• Max. flow rate, direct modules: 2100L/h .Kv 4,5
• Max. flow mixed modules: 2000L/h .Kv 3.6
• Max. power of direct modules : ΔT 8°C .17kW / ΔT 10°C .21kW / ΔT 15°C .32kW / ΔT 20°C .42kW
• Max. power mixed modules : ΔT 8°C .16kW / ΔT 10°C .20kW / ΔT 15°C .30kW / ΔT 20°C .40kW
• Flow sensor sump: Ø6 mm sensor
• Insulating cover : Black Expanded Polypropylene EPP .λ 0,040W/mK (EN 12667:2001) .45g/L (ISO 845:2006)
• Pump insulation: complete, also lateral
• Return pipe: copper with black cataphoresis
• Check valve: present (excludable)
• Reversible direct modules: right - left

Compositions

1. Support structure
2. Return valve with thermometer and non-return valve (excl.)
3. Return pipe
4. Flow tap and probe sump, heating/cooling flow
5. Pump
6. Shut-off valve
7. Mixing valve
8. Insulating cover
9. Separator
