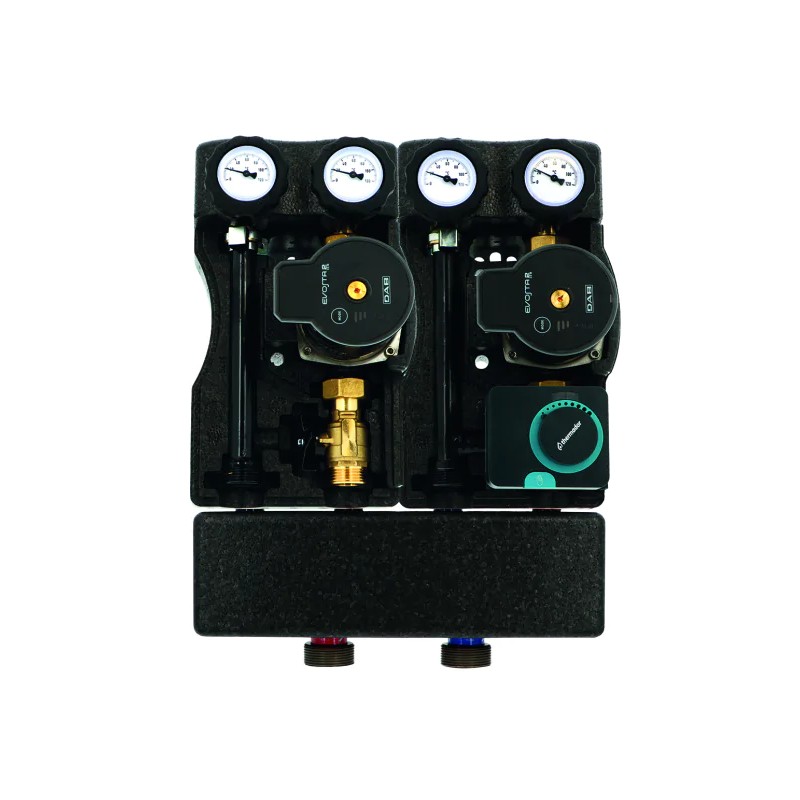

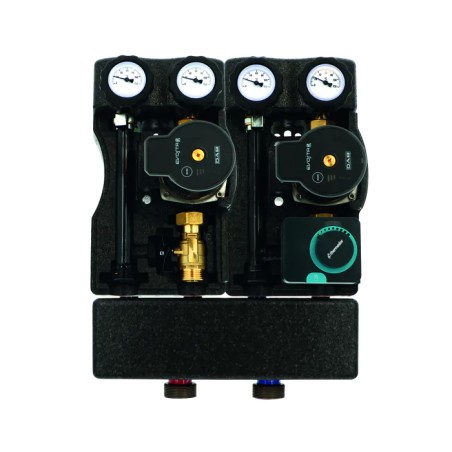

  • Groupe hydraulique Modulfit Compact avec régulation et séparateur

Photo non contractuelle

Modulfit Compact hydraulic unit with control and separator

Application:

The hydraulic assembly is used for fluid management in modern heating and cooling systems.

The Modulfit Compact hydraulic assembly comprises a direct unit, a mixed unit with control and a hydraulic separator.

This composition provides the hydraulic link between the heat generator and the heating or cooling circuits.

The separator acts as a hydraulic decoupler between the primary and secondary circuits.

It is ideally suited to systems where the generator is equipped with a circulator.

Each component features reinforced insulation to prevent condensation.

What's more, the hydraulic assembly takes up minimal space, so it can be easily integrated into even the smallest boiler rooms.

The maximum efficiency of a generator (e.g. a heat pump) also depends on good management and distribution of technical water on the secondary circuit.

Compact direct and mixed hydraulic unit 2m3/h, center distance 90 mm DN20

Plus de détails
Are you an individual?
Are you a professional?

Log in to find out your discount.

€1,622.95 Tax included

1352.46 € tax excl.

Unité de vente : Pièce
GRPHYMFCRESE020
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information Modulfit Compact hydraulic unit with control and separator

Technical data:

  • Operating pressure: 1÷10bar (100÷1000kPa)
  • Operating temperature: 5-95°C (120°C with additives)
  • Fluid: Water, Water + glycol max. 30% Power supply: 230 V (±10%), 50 / 60Hz
  • Power supply: 230 V (±10%), 50 / 60Hz
  • Max. flow rate, direct modules: 2100L/h .Kv 4,5
  • Max. flow mixed modules: 2000L/h .Kv 3.6
  • Max. power of direct modules : ΔT 8°C .17kW / ΔT 10°C .21kW / ΔT 15°C .32kW / ΔT 20°C .42kW
  • Max. power mixed modules : ΔT 8°C .16kW / ΔT 10°C .20kW / ΔT 15°C .30kW / ΔT 20°C .40kW
  • Flow sensor sump: Ø6 mm sensor
  • Insulating cover : Black Expanded Polypropylene EPP .λ 0,040W/mK (EN 12667:2001) .45g/L (ISO 845:2006)
  • Pump insulation: complete, also lateral
  • Return pipe: copper with black cataphoresis
  • Check valve: present (excludable)
  • Reversible direct modules: right - left

Compositions

  1. Support structure
  2. Return valve with thermometer and non-return valve (excl.)
  3. Return pipe
  4. Flow tap and probe sump, heating/cooling flow
  5. Pump
  6. Shut-off valve
  7. Mixing valve
  8. Insulating cover
  9. Regulation
  10. Separator

    Caractéristiques techniques Modulfit Compact hydraulic unit with control and separator

    Data sheet

    Reference
    GRPHYMFCRESE020
    Entraxe
    90 mm
    Pression maximum
    10 bar
    Température minimum
    5°C
    Température maximum
    95°C
    Fluide admissible
    Eau Eau glycolée
    Tension électrique
    230V AC
    Unité de vente
    Pièce

    Download documentation

    FT GH-20CSPXS

    Fiche technique GH-20CSPXS

    Download (1.38MB)

    NM SPXS

    Notice de montage SPXS

    Download (2.33MB)
