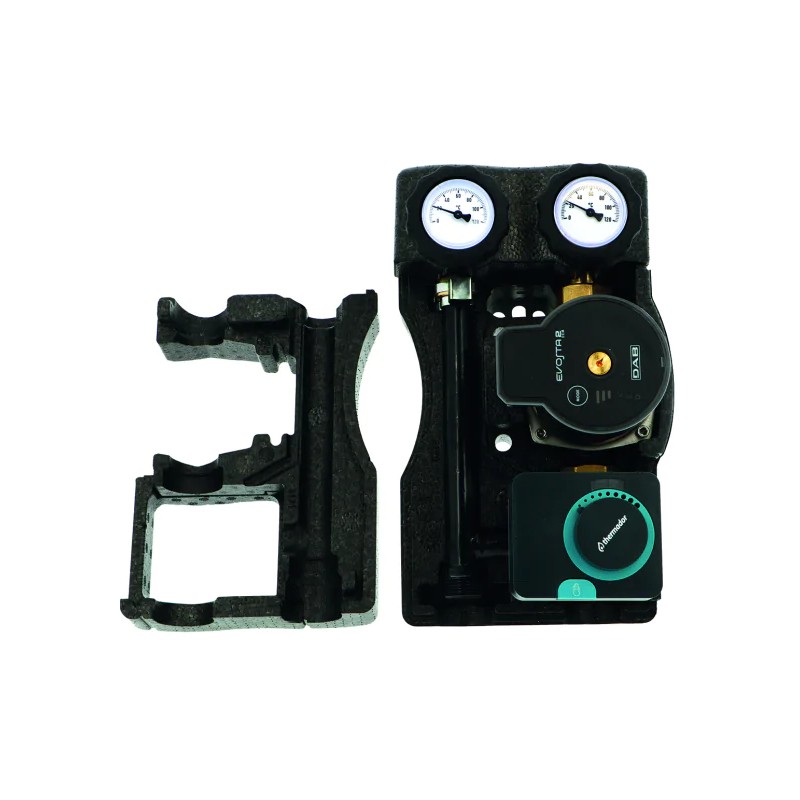

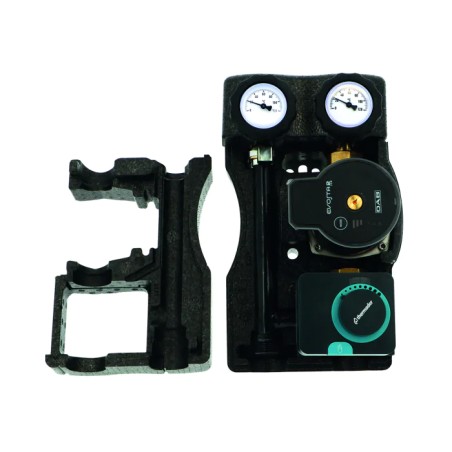

Compact hydraulic power packs with Modulfit Premium motor

Application:

The Modulfit Compact mixed hydraulic unit is specially designed for heat pump systems, thanks to its reinforced insulation that prevents condensation.

The maximum efficiency of a generator (e.g. a heat pump) also depends on proper management and distribution of the technical water in the secondary circuit.

Perfect circulation and excellent insulation are the main features of the hydraulic unit.

A flexible hydraulic module, capable of adapting to the different sizes of generators on the market today to optimize their efficiency, but also perfect for all energy distribution systems, heating and/or cooling via floors, ceilings, walls, fan coil units and radiators.

Compact 2m3/h mixed hydraulic unit, 90 mm centre distance.

Equipped with circulator and motor.

Plus de détails
Are you an individual?
Are you a professional?

Log in to find out your discount.

€541.28 Tax included

451.07 € tax excl.

Unité de vente : Pièce
GRPHYMDPMECAM20
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information Compact mixed hydraulic unit with DN20 motor

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Technical data:

  • Working pressure: 1÷10bar (100÷1000kPa)
  • Working temperature: 5-95°C (120°C with additives)
  • Fluid: Water, Water + glycol max. 30% Power supply: 230 V (±10%), 50 / 60Hz
  • Power supply: 230 V (±10%), 50 / 60Hz
  • Max. flow rate, direct modules: 2100L/h .Kv 4,5
  • Max. flow mixed modules: 2000L/h .Kv 3.6
  • Max. power of direct modules : ΔT 8°C .17kW / ΔT 10°C .21kW / ΔT 15°C .32kW / ΔT 20°C .42kW
  • Max. power mixed modules : ΔT 8°C .16kW / ΔT 10°C .20kW / ΔT 15°C .30kW / ΔT 20°C .40kW
  • Flow sensor sump: Ø6 mm sensor
  • Insulating cover : Black Expanded Polypropylene EPP .λ 0,040W/mK (EN 12667:2001) .45g/L (ISO 845:2006)
  • Pump insulation: complete, also lateral
  • Return pipe: copper with black cataphoresis
  • Check valve: present (excludable)
  • Reversible direct modules: right - left

Compositions

  1. Support structure
  2. Return valve and non-return valve (excl.)
  3. Return pipe
  4. Flow tap and probe sump, heating/cooling flow
  5. Pump
  6. Shut-off valve
  7. Mixing valve
  8. Insulating cover

    Caractéristiques techniques Compact mixed hydraulic unit with DN20 motor

    Data sheet

    Reference
    GRPHYMDPMECAM20
    Entraxe
    90 mm
    Diamètre
    Ø20
    Pression de service
    1÷10bar
    Température minimum
    5°C
    Température maximum
    95°C
    Fluide admissible
    Eau Eau glycolée
    Puissance électrique
    230 V (±10%), 50 / 60Hz
    Unité de vente
    Pièce

    Download documentation

    FT GH-20CSPXS

    Fiche technique GH-20CSPXS

    Download (1.38MB)

    NM MODULFITSPXS

    Notice de montage MODULFITSPXS

    Download (2.33MB)
