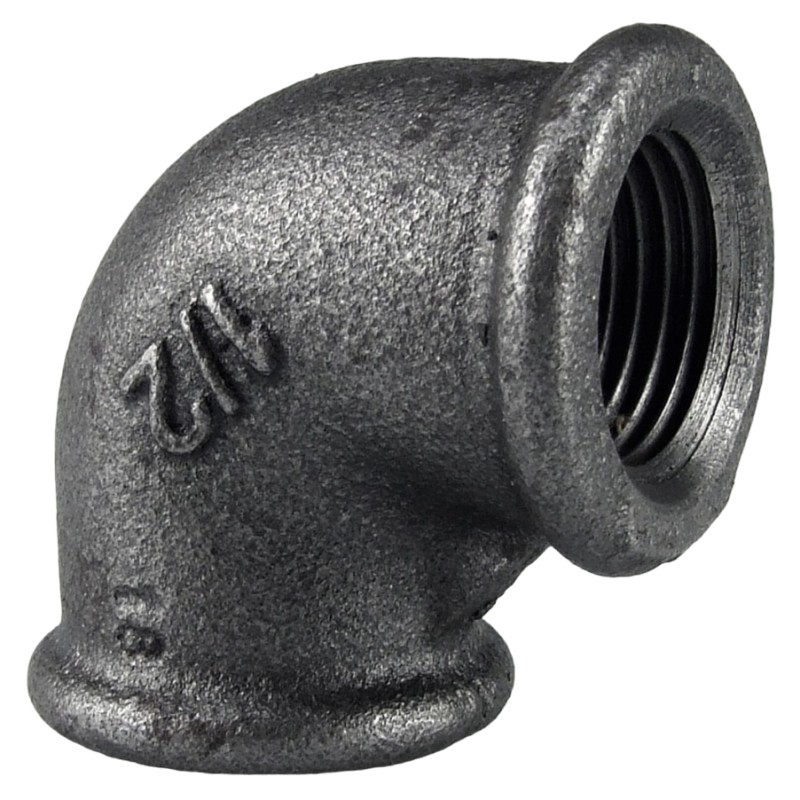

Black malleable cast iron threaded female elbow fitting 1/2" (15/21) brute / noire

Name: Black malleable cast iron threaded female elbow fitting 1/2 (15/21) brute / noire
Brand: THERSANE
SKU: 00090N000000015
Price: 0.66 EUR
Availability: InStock

Black or galvanized cast iron fitting

Raccord fonte malléable fileté coude femelle

Photos non contractuelles

90° female malleable iron elbow fitting for carbon steel pipe

Application:

These fittings must be used for transporting fluids or gases in steel piping.

Black finish coating

Product not authorized for natural gas and butane/propane applications

Plus de détails

Type de raccordement : Á visser BSP (pas du gaz)

1/2" (15/21) brute / noire

Are you an individual?

Are you a professional?

€0.66 Tax included

0.55 € tax excl.

Unité de vente : Pièce

Reference : 00090N000000015

Surface Finish: Brute / Noire

Brute / Noire

Diameter (in inches): 1/2" (15/21)

Quantity

Consulter les produits disponibles sous forme de liste

Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Your PRO THERSANE access

Ranges / Conditions / Benefits

View benefits

FREE SHIPPING

From €150 incl. VAT

For a cart not exceeding 30Kg

NEED HELP?

(+33) 04 28 54 00 69

Complément d'information Black malleable cast iron threaded female elbow fitting

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Technical specifications:

Material: Threaded fittings are made from W400-05 or W350-04 malleable cast iron

Maximum temperature: For threaded fittings with diameters from 1/8" to 1" inclusive, the working pressure is 25 bar at an operating temperature of -20°C to +120°C. For threaded fittings with diameters from 1-1/4" to 4" inclusive, the working pressure is 16 bar at an operating temperature of -20°C to +120°C.

Thread: These fittings have a gas-tight internal thread with a thread seal. The internal thread is parallel (Rp) and the external thread is tapered (R) in accordance with ISO 7-1.

Coating:

Hot-dip galvanizing (zinc coating applied by hot-dip immersion) (If the fittings are supplied in other ferrous materials, other zinc-based coatings may be used in agreement with the buyer.)

Standards:

All malleable cast iron threaded fittings comply with standard NF EN 10242 and are ISO 9001 certified.

They also comply with the requirements of the Ministerial Decree of May 29, 1997, regarding drinking water systems; in accordance with European and international standards, malleable cast iron fittings are free of polycyclic aromatic hydrocarbons.

Caractéristiques techniques Black malleable cast iron threaded female elbow fitting

Data sheet

Reference: 00090N000000015
Finition corps: Noire
Matière: Fonte malléable W400-05 ou W350-04
Forme: Coude 90°
Rayon: Petit rayon
Type de raccordement: Á visser BSP (pas du gaz)
Raccordement: FF (femelle - femelle)
Diamètre: En fonction du modèle choisi
Pression de service: De 1"1/4 à 4" : 16B De 1/8" à 1" : 25B
Température minimum: -20°C
Température maximum: 120°C
Fluide admissible: Air comprimé Eau Eau chauffage Eau glacée et climatisation Eau glycolée Fluides courants compatibles
Normes et certifications: Filetage ISO 7-1 ISO 9001 NF EN 10242
Unité de vente: Pièce
Garantie fabricant: 1 an
Figure: 90

Download documentation

FT Raccords fonte malléable 131G

Fiche technique Raccords filetés fonte malléable

Download (1.14MB)

Caractéristiques liées à la version du produit Black malleable cast iron threaded female elbow fitting

Voici la liste des références et poids correspondants aux options séléctionnées.

00090N000000010 - Black malleable cast iron threaded female elbow fitting - Brute / Noire - 3/8" (12/17)

Surface Finish	Brute / Noire
Diameter (in inches)	3/8" (12/17)
Packed weight	0,0735kg

0.81 € tax excl.

Consulter

00090N000000032 - Black malleable cast iron threaded female elbow fitting - Brute / Noire - 1"1/4 (33/42)

Surface Finish	Brute / Noire
Diameter (in inches)	1"1/4 (33/42)
Packed weight	0,336kg

2.47 € tax excl.

Consulter

00090N000000080 - Black malleable cast iron threaded female elbow fitting - Brute / Noire - 3" (80/90)

Surface Finish	Brute / Noire
Diameter (in inches)	3" (80/90)
Packed weight	1,8165kg

18.33 € tax excl.

Consulter

00090N000000025 - Black malleable cast iron threaded female elbow fitting - Brute / Noire - 1" (26/34)

Surface Finish	Brute / Noire
Diameter (in inches)	1" (26/34)
Packed weight	0,229kg

1.27 € tax excl.

Consulter

00090N000000065 - Black malleable cast iron threaded female elbow fitting - Brute / Noire - 2"1/2 (66/76)

Surface Finish	Brute / Noire
Diameter (in inches)	2"1/2 (66/76)
Packed weight	1,47kg

13.2 € tax excl.

Consulter

00090N000000008 - Black malleable cast iron threaded female elbow fitting - Brute / Noire - 1/4" (8/13)

Surface Finish	Brute / Noire
Diameter (in inches)	1/4" (8/13)
Packed weight	0,0525kg

0.98 € tax excl.

Consulter

00090N000000020 - Black malleable cast iron threaded female elbow fitting - Brute / Noire - 3/4" (20/27)

Surface Finish	Brute / Noire
Diameter (in inches)	3/4" (20/27)
Packed weight	0,168kg

0.88 € tax excl.

Consulter

00090N000000050 - Black malleable cast iron threaded female elbow fitting - Brute / Noire - 2" (50/60)

Surface Finish	Brute / Noire
Diameter (in inches)	2" (50/60)
Packed weight	0,903kg

4.52 € tax excl.

Consulter

00090N000000006 - Black malleable cast iron threaded female elbow fitting - Brute / Noire - 1/8" (5/10)

Surface Finish	Brute / Noire
Diameter (in inches)	1/8" (5/10)
Packed weight	0,0315kg

2.15 € tax excl.

Consulter

00090N000000015 - Black malleable cast iron threaded female elbow fitting - Brute / Noire - 1/2" (15/21)

Surface Finish	Brute / Noire
Diameter (in inches)	1/2" (15/21)
Packed weight	0,0945kg

0.55 € tax excl.

Consulter

00090N000000040 - Black malleable cast iron threaded female elbow fitting - Brute / Noire - 1"1/2 (40/49)

Surface Finish	Brute / Noire
Diameter (in inches)	1"1/2 (40/49)
Packed weight	0,4935kg

3.97 € tax excl.

Consulter

00090N000000099 - Black malleable cast iron threaded female elbow fitting - Brute / Noire - 4" (102/114)

Surface Finish	Brute / Noire
Diameter (in inches)	4" (102/114)
Packed weight	3,33375kg

32.27 € tax excl.

Consulter

Référence - Désignation	Surface Finish	Diameter (in inches)	Packed weight	Prix
00090N000000010 - Black malleable cast iron threaded female elbow fitting - Brute / Noire - 3/8" (12/17)	Brute / Noire	3/8" (12/17)	0,0735kg	0.81 € tax excl.
00090N000000032 - Black malleable cast iron threaded female elbow fitting - Brute / Noire - 1"1/4 (33/42)	Brute / Noire	1"1/4 (33/42)	0,336kg	2.47 € tax excl.
00090N000000080 - Black malleable cast iron threaded female elbow fitting - Brute / Noire - 3" (80/90)	Brute / Noire	3" (80/90)	1,8165kg	18.33 € tax excl.
00090N000000025 - Black malleable cast iron threaded female elbow fitting - Brute / Noire - 1" (26/34)	Brute / Noire	1" (26/34)	0,229kg	1.27 € tax excl.
00090N000000065 - Black malleable cast iron threaded female elbow fitting - Brute / Noire - 2"1/2 (66/76)	Brute / Noire	2"1/2 (66/76)	1,47kg	13.2 € tax excl.
00090N000000008 - Black malleable cast iron threaded female elbow fitting - Brute / Noire - 1/4" (8/13)	Brute / Noire	1/4" (8/13)	0,0525kg	0.98 € tax excl.
00090N000000020 - Black malleable cast iron threaded female elbow fitting - Brute / Noire - 3/4" (20/27)	Brute / Noire	3/4" (20/27)	0,168kg	0.88 € tax excl.
00090N000000050 - Black malleable cast iron threaded female elbow fitting - Brute / Noire - 2" (50/60)	Brute / Noire	2" (50/60)	0,903kg	4.52 € tax excl.
00090N000000006 - Black malleable cast iron threaded female elbow fitting - Brute / Noire - 1/8" (5/10)	Brute / Noire	1/8" (5/10)	0,0315kg	2.15 € tax excl.
00090N000000015 - Black malleable cast iron threaded female elbow fitting - Brute / Noire - 1/2" (15/21)	Brute / Noire	1/2" (15/21)	0,0945kg	0.55 € tax excl.
00090N000000040 - Black malleable cast iron threaded female elbow fitting - Brute / Noire - 1"1/2 (40/49)	Brute / Noire	1"1/2 (40/49)	0,4935kg	3.97 € tax excl.
00090N000000099 - Black malleable cast iron threaded female elbow fitting - Brute / Noire - 4" (102/114)	Brute / Noire	4" (102/114)	3,33375kg	32.27 € tax excl.
