Black malleable cast iron threaded male tee 1/2" (15/21) brute / noire

Black or galvanized cast iron fitting
Raccord fonte malléable noir fileté Té mâle
search
  • Raccord fonte malléable noir fileté Té mâle
  • Raccord fonte malléable fileté Té mâle
  • Raccord fonte malléable fileté Té mâle
  • Té fonte malléable fileté mâle
  • Raccord Té mâle fonte malléable fileté

Photos non contractuelles

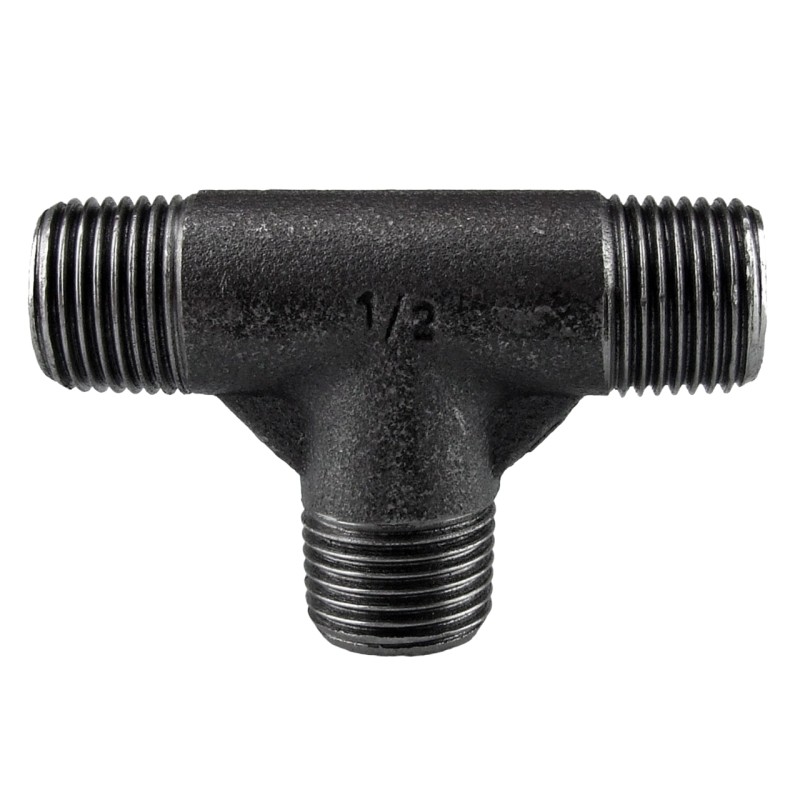

Black male malleable cast iron tee for carbon steel pipe

Application:

These fittings must be used for the transport of fluids or gases in steel piping.

Black finish coating.

Product not authorized for natural gas and butane/propane applications

Plus de détails
Normes et certifications : ISO 9001Type de raccordement : Á visser BSP (pas du gaz)1
1/2" (15/21) brute / noire
Are you an individual?
Are you a professional?

Log in to find out your discount.

€8.77 Tax included

7.31 € tax excl.

Unité de vente : Pièce
00135N000000015
Surface Finish: Brute / Noire
Diameter (in inches): 1/2" (15/21)
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information Black malleable cast iron threaded male tee

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Technical specifications:

Material: Threaded fittings are made from W400-05 or W350-04 malleable cast iron

Maximum temperature: For threaded fittings with diameters from 1/8" to 1" inclusive, the working pressure is 25 bar at an operating temperature of -20°C to +120°C. For threaded fittings with diameters from 1-1/4" to 4" inclusive, the working pressure is 16 bar at an operating temperature of -20°C to +120°C.

Thread: These fittings have a gas-tight internal thread with a thread seal. The internal thread is parallel (Rp) and the external thread is tapered (R) in accordance with ISO 7-1.

Coating:

Hot-dip galvanizing (zinc coating applied by hot-dip immersion) (If the fittings are supplied in other ferrous materials, other zinc-based coatings may be used in agreement with the buyer.)

Standards:

All malleable cast iron threaded fittings comply with standard NF EN 10242 and are ISO 9001 certified.

They also comply with the requirements of the Ministerial Decree of May 29, 1997, regarding drinking water systems; in accordance with European and international standards, malleable cast iron fittings are free of polycyclic aromatic hydrocarbons.

Caractéristiques techniques Black malleable cast iron threaded male tee

Data sheet

Reference
00135N000000015
Finition corps
Noire
Matière
Fonte malléable W400-05 ou W350-04
Forme
Té
Type de raccordement
Á visser BSP (pas du gaz)
Raccordement
MMM (mâle - mâle - mâle)
Diamètre
En fonction du modèle choisi
Pression de service
De 1"1/4 à 4" : 16B De 1/8" à 1" : 25B
Température minimum
-20°C
Température maximum
120°C
Fluide admissible
Air comprimé Eau Eau chauffage Eau glacée et climatisation Eau glycolée Fluides courants compatibles
Normes et certifications
Filetage ISO 7-1 ISO 9001 NF EN 10242
Unité de vente
Pièce
Garantie fabricant
1 an
Figure
135

Download documentation

FT Raccords fonte malléable 131G

Fiche technique Raccords filetés fonte malléable

Download (1.14MB)

Caractéristiques liées à la version du produit Black malleable cast iron threaded male tee

Voici la liste des références et poids correspondants aux options séléctionnées.
00135N000000025 - Black malleable cast iron threaded male tee - Brute / Noire - 1" (26/34)
Surface Finish Brute / Noire
Diameter (in inches) 1" (26/34)
Packed weight 0,30135kg
11.6 € tax excl.
Consulter
00135N000000020 - Black malleable cast iron threaded male tee - Brute / Noire - 3/4" (20/27)
Surface Finish Brute / Noire
Diameter (in inches) 3/4" (20/27)
Packed weight 0,19635kg
9.04 € tax excl.
Consulter
00135N000000015 - Black malleable cast iron threaded male tee - Brute / Noire - 1/2" (15/21)
Surface Finish Brute / Noire
Diameter (in inches) 1/2" (15/21)
Packed weight 0,12705kg
7.31 € tax excl.
Consulter
Référence - Désignation Surface Finish Diameter (in inches) Packed weight Prix
00135N000000025 - Black malleable cast iron threaded male tee - Brute / Noire - 1" (26/34) Brute / Noire 1" (26/34) 0,30135kg 11.6 € tax excl.
00135N000000020 - Black malleable cast iron threaded male tee - Brute / Noire - 3/4" (20/27) Brute / Noire 3/4" (20/27) 0,19635kg 9.04 € tax excl.
00135N000000015 - Black malleable cast iron threaded male tee - Brute / Noire - 1/2" (15/21) Brute / Noire 1/2" (15/21) 0,12705kg 7.31 € tax excl.
