Black malleable cast iron fitting, male reduced nipple brute / noire 3/8" - 1/4"

Name: Black malleable cast iron fitting, male reduced nipple brute / noire 3/8 - 1/4
Brand: THERSANE
SKU: 0245RN000001008
Price: 1.33 EUR
Availability: InStock

Black or galvanized cast iron fitting

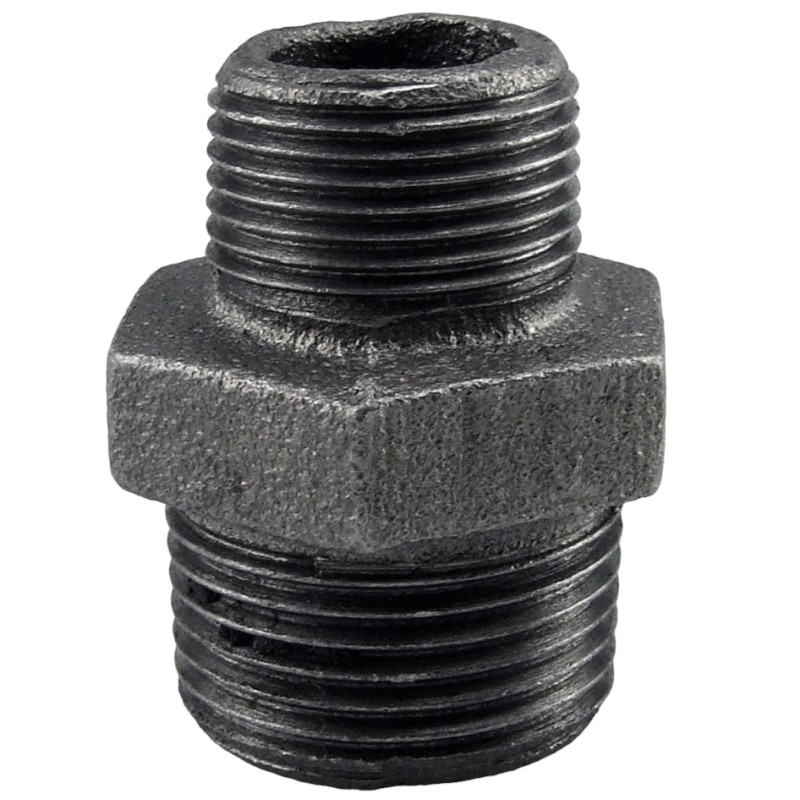

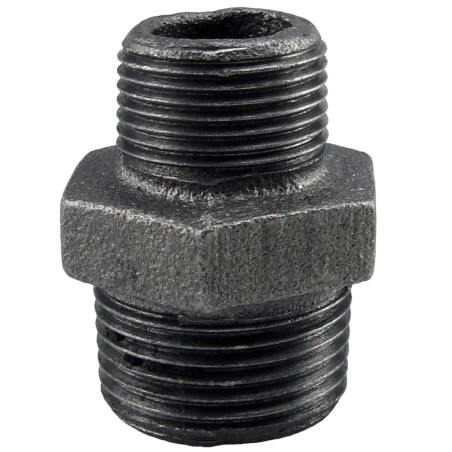

Raccord Mamelon réduit fonte malléable noir mâle

Photos non contractuelles

Black malleable cast iron male reducers for carbon steel pipe

Application:

These fittings are intended for the transport of fluids or gases in steel piping.

Black finish coating.

Product not authorized for natural gas and butane/propane applications

Plus de détails

Type de raccordement : Á visser BSP (pas du gaz)

brute / noire 3/8" - 1/4"

Are you an individual?

Are you a professional?

€1.33 Tax included

1.11 € tax excl.

Unité de vente : Pièce

Reference : 0245RN000001008

Surface Finish: Brute / Noire

Brute / Noire

Diamètre Ø: 3/8" - 1/4"

Quantity

Consulter les produits disponibles sous forme de liste

Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Your PRO THERSANE access

Ranges / Conditions / Benefits

View benefits

FREE SHIPPING

From €150 incl. VAT

For a cart not exceeding 30Kg

NEED HELP?

(+33) 04 28 54 00 69

Complément d'information Black malleable cast iron fitting, male reduced nipple

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Technical specifications:

Material: Threaded fittings are made from W400-05 or W350-04 malleable cast iron

Maximum temperature: For threaded fittings with diameters from 1/8" to 1" inclusive, the working pressure is 25 bar at an operating temperature of -20°C to +120°C. For threaded fittings with diameters from 1-1/4" to 4" inclusive, the working pressure is 16 bar at an operating temperature of -20°C to +120°C.

Thread: These fittings have a gas-tight internal thread with a thread seal. The internal thread is parallel (Rp) and the external thread is tapered (R) in accordance with ISO 7-1.

Coating:

Hot-dip galvanizing (zinc coating applied by hot-dip immersion) (If the fittings are supplied in other ferrous materials, other zinc-based coatings may be used in agreement with the buyer.)

Standards:

All malleable cast iron threaded fittings comply with standard NF EN 10242 and are ISO 9001 certified.

They also comply with the requirements of the Ministerial Decree of May 29, 1997, regarding drinking water systems; in accordance with European and international standards, malleable cast iron fittings are free of polycyclic aromatic hydrocarbons.

Caractéristiques techniques Black malleable cast iron fitting, male reduced nipple

Data sheet

Reference: 0245RN000001008
Finition corps: Noire
Matière: Fonte malléable W400-05 ou W350-04
Forme: Réduction
Type de raccordement: Á visser BSP (pas du gaz)
Raccordement: MM (mâle - mâle)
Diamètre: En fonction du modèle choisi
Pression de service: De 1"1/4 à 4" : 16B De 1/8" à 1" : 25B
Température minimum: -20°C
Température maximum: 120°C
Fluide admissible: Air comprimé Eau Eau chauffage Eau glacée et climatisation Eau glycolée Fluides courants compatibles
Normes et certifications: Filetage ISO 7-1 ISO 9001 NF EN 10242
Unité de vente: Pièce
Garantie fabricant: 1 an
Figure: 245R

Download documentation

FT Raccords fonte malléable 131G

Fiche technique Raccords filetés fonte malléable

Download (1.14MB)

Caractéristiques liées à la version du produit Black malleable cast iron fitting, male reduced nipple

Voici la liste des références et poids correspondants aux options séléctionnées.

0245RN000004025 - Black malleable cast iron fitting, male reduced nipple - Brute / Noire - 1"1/2 - 1"

Surface Finish	Brute / Noire
Diamètre Ø	1"1/2 - 1"
Packed weight	0,317kg

4.75 € tax excl.

Référence - Désignation	Surface Finish	Diamètre Ø	Packed weight	Prix
0245RN000004025 - Black malleable cast iron fitting, male reduced nipple - Brute / Noire - 1"1/2 - 1"	Brute / Noire	1"1/2 - 1"	0,317kg	4.75 € tax excl.
0245RN000002010 - Black malleable cast iron fitting, male reduced nipple - Brute / Noire - 3/4" - 3/8"	Brute / Noire	3/4" - 3/8"	0,0945kg	2.34 € tax excl.
0245RN000005040 - Black malleable cast iron fitting, male reduced nipple - Brute / Noire - 2" - 1"1/2	Brute / Noire	2" - 1"1/2	0,42kg	4.91 € tax excl.
0245RN000003215 - Black malleable cast iron fitting, male reduced nipple - Brute / Noire - 1"1/4 - 1/2"	Brute / Noire	1"1/4 - 1/2"	0,18795kg	6.5 € tax excl.
0245RN000001008 - Black malleable cast iron fitting, male reduced nipple - Brute / Noire - 3/8" - 1/4"	Brute / Noire	3/8" - 1/4"	0,042kg	1.11 € tax excl.
0245RN000002008 - Black malleable cast iron fitting, male reduced nipple - Brute / Noire - 3/4" - 1/4"	Brute / Noire	3/4" - 1/4"	0,07245kg	5.01 € tax excl.
0245RN000005032 - Black malleable cast iron fitting, male reduced nipple - Brute / Noire - 2" - 1"1/4	Brute / Noire	2" - 1"1/4	0,546kg	5.4 € tax excl.
0245RN000002520 - Black malleable cast iron fitting, male reduced nipple - Brute / Noire - 1" - 3/4"	Brute / Noire	1" - 3/4"	0,2415kg	1.33 € tax excl.
0245RN000001006 - Black malleable cast iron fitting, male reduced nipple - Brute / Noire - 3/8" - 1/8"	Brute / Noire	3/8" - 1/8"	0,0336kg	2.63 € tax excl.
0245RN000004020 - Black malleable cast iron fitting, male reduced nipple - Brute / Noire - 1"1/2- 3/4"	Brute / Noire	1"1/2- 3/4"	0,252kg	3.06 € tax excl.
0245RN000001510 - Black malleable cast iron fitting, male reduced nipple - Brute / Noire - 1/2" - 3/8"	Brute / Noire	1/2" - 3/8"	0,0525kg	1.33 € tax excl.
0245RN000005025 - Black malleable cast iron fitting, male reduced nipple - Brute / Noire - 2" - 1"	Brute / Noire	2" - 1"	0,38325kg	4.32 € tax excl.
0245RN000002515 - Black malleable cast iron fitting, male reduced nipple - Brute / Noire - 1" - 1/2"	Brute / Noire	1" - 1/2"	0,126kg	2.31 € tax excl.
0245RN000008065 - Black malleable cast iron fitting, male reduced nipple - Brute / Noire - 3" - 2"1/2	Brute / Noire	3" - 2"1/2	1,09935kg	18.82 € tax excl.
0245RN000000806 - Black malleable cast iron fitting, male reduced nipple - Brute / Noire - 1/4" - 1/8"	Brute / Noire	1/4" - 1/8"	0,0189kg	2.11 € tax excl.
0245RN000003225 - Black malleable cast iron fitting, male reduced nipple - Brute / Noire - 1"1/4 - 1"	Brute / Noire	1"1/4 - 1"	0,2415kg	2.15 € tax excl.
0245RN000004032 - Black malleable cast iron fitting, male reduced nipple - Brute / Noire - 1"1/2 - 1"1/4	Brute / Noire	1"1/2 - 1"1/4	0,3255kg	2.6 € tax excl.
0245RN000002015 - Black malleable cast iron fitting, male reduced nipple - Brute / Noire - 3/4" - 1/2"	Brute / Noire	3/4" - 1/2"	0,105kg	1.17 € tax excl.
0245RN000006550 - Black malleable cast iron fitting, male reduced nipple - Brute / Noire - 2" 1/2 - 2"	Brute / Noire	2" 1/2 - 2"	0,7245kg	11.83 € tax excl.
0245RN000003220 - Black malleable cast iron fitting, male reduced nipple - Brute / Noire - 1"1/4 - 3/4"	Brute / Noire	1"1/4 - 3/4"	0,252kg	3.06 € tax excl.
0245RN000001508 - Black malleable cast iron fitting, male reduced nipple - Brute / Noire - 1/2" - 1/4"	Brute / Noire	1/2" - 1/4"	0,0525kg	1.53 € tax excl.
