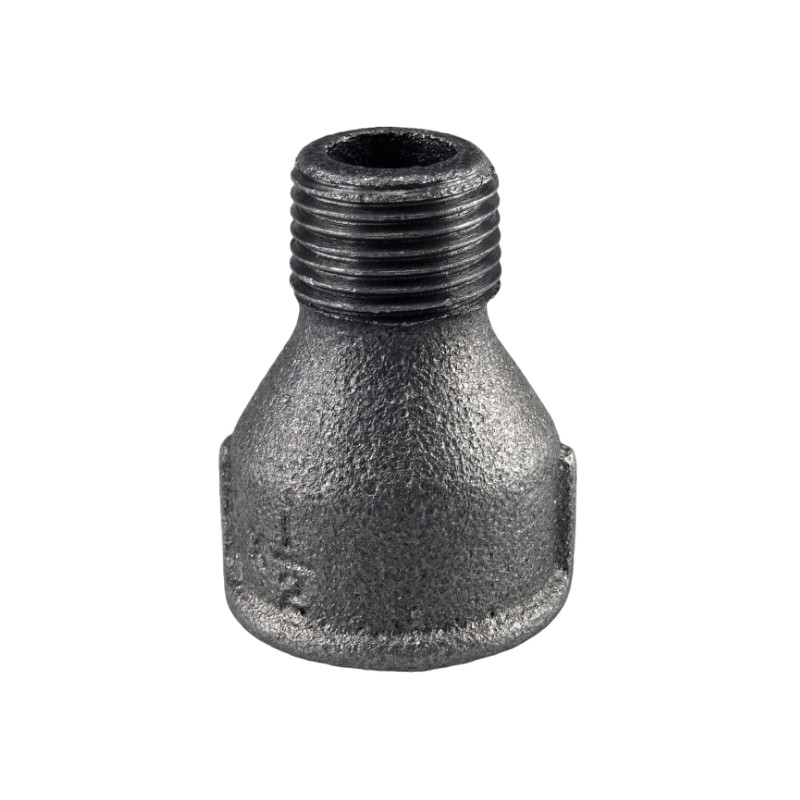

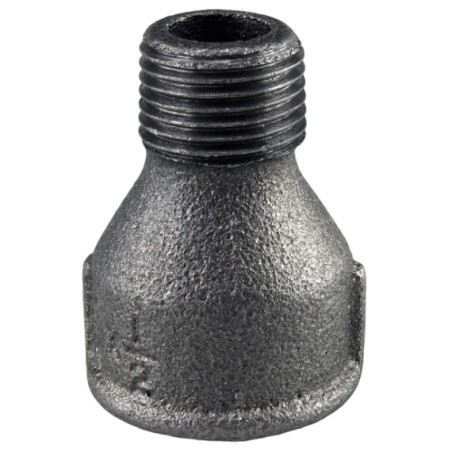

Black malleable cast iron threaded fitting: Reducing sleeve (female to male) brute / noire 3/8" - 1/4"

Black or galvanized cast iron fitting
Raccord fonte malléable noir fileté Manchon réduit femelle mâle
search
  • Raccord fonte malléable noir fileté Manchon réduit femelle mâle
  • Raccord fonte malléable fileté Manchon réduit femelle mâle
  • Raccord fonte malléable fileté Manchon réduit femelle mâle
  • Raccord fonte malléable fileté Manchon réduit femelle mâle
  • Manchon réduit fonte malléable fileté femelle mâle
  • Manchon réduit fonte malléable
  • Raccord fonte malléable fileté Manchon réduit femelle mâle

Photos non contractuelles

Malleable cast iron reducer sleeves (female and male) for carbon steel pipe

Application:

These fittings are intended for use in the transport of fluids or gases through steel piping.

Black finish coating.

Product not authorized for natural gas and butane/propane applications

Plus de détails
Normes et certifications : ISO 9001Type de raccordement : Á visser BSP (pas du gaz)1
brute / noire 3/8" - 1/4"
Are you an individual?
Are you a professional?

Log in to find out your discount.

€1.25 Tax included

1.04 € tax excl.

Unité de vente : Pièce
0246RN000001008
Surface Finish: Brute / Noire
Diamètre Ø: 3/8" - 1/4"
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information Black malleable cast iron threaded fitting: Reducing sleeve (female to male)

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Technical specifications:

Material: Threaded fittings are made from W400-05 or W350-04 malleable cast iron

Maximum temperature: For threaded fittings with diameters from 1/8" to 1" inclusive, the working pressure is 25 bar at an operating temperature of -20°C to +120°C. For threaded fittings with diameters from 1-1/4" to 4" inclusive, the working pressure is 16 bar at an operating temperature of -20°C to +120°C.

Thread: These fittings have a gas-tight internal thread with a thread seal. The internal thread is parallel (Rp) and the external thread is tapered (R) in accordance with ISO 7-1.

Coating:

Hot-dip galvanizing (zinc coating applied by hot-dip immersion) (If the fittings are supplied in other ferrous materials, other zinc-based coatings may be used in agreement with the buyer.)

Standards:

All malleable cast iron threaded fittings comply with standard NF EN 10242 and are ISO 9001 certified.

They also comply with the requirements of the Ministerial Decree of May 29, 1997, regarding drinking water systems; in accordance with European and international standards, malleable cast iron fittings are free of polycyclic aromatic hydrocarbons.

Caractéristiques techniques Black malleable cast iron threaded fitting: Reducing sleeve (female to male)

Data sheet

Reference
0246RN000001008
Finition corps
Noire
Matière
Fonte malléable W400-05 ou W350-04
Forme
Réduction
Type de raccordement
Á visser BSP (pas du gaz)
Raccordement
MF (mâle - femelle)
Diamètre
En fonction du modèle choisi
Pression de service
De 1"1/4 à 4" : 16B De 1/8" à 1" : 25B
Température minimum
-20°C
Température maximum
120°C
Fluide admissible
Air comprimé Eau Eau chauffage Eau glacée et climatisation Eau glycolée Fluides courants compatibles
Normes et certifications
Filetage ISO 7-1 ISO 9001 NF EN 10242
Unité de vente
Pièce
Garantie fabricant
1 an
Figure
246R

Download documentation

FT Raccords fonte malléable 131G

Fiche technique Raccords filetés fonte malléable

Download (1.14MB)

Caractéristiques liées à la version du produit Black malleable cast iron threaded fitting: Reducing sleeve (female to male)

Voici la liste des références et poids correspondants aux options séléctionnées.
0246RN000005032 - Black malleable cast iron threaded fitting: Reducing sleeve (female to male) - Brute / Noire - 2" - 1"1/4
Surface Finish Brute / Noire
Diamètre Ø 2" - 1"1/4
Packed weight 0,462kg
5.53 € tax excl.
Consulter
0246RN000002520 - Black malleable cast iron threaded fitting: Reducing sleeve (female to male) - Brute / Noire - 1" - 3/4"
Surface Finish Brute / Noire
Diamètre Ø 1" - 3/4"
Packed weight 0,147kg
1.82 € tax excl.
Consulter
0246RN000004020 - Black malleable cast iron threaded fitting: Reducing sleeve (female to male) - Brute / Noire - 1"1/2- 3/4"
Surface Finish Brute / Noire
Diamètre Ø 1"1/2- 3/4"
Packed weight 0,26985kg
6.99 € tax excl.
Consulter
0246RN000001510 - Black malleable cast iron threaded fitting: Reducing sleeve (female to male) - Brute / Noire - 1/2" - 3/8"
Surface Finish Brute / Noire
Diamètre Ø 1/2" - 3/8"
Packed weight 0,084kg
1.11 € tax excl.
Consulter
0246RN000002515 - Black malleable cast iron threaded fitting: Reducing sleeve (female to male) - Brute / Noire - 1" - 1/2"
Surface Finish Brute / Noire
Diamètre Ø 1" - 1/2"
Packed weight 0,126kg
1.82 € tax excl.
Consulter
0246RN000008065 - Black malleable cast iron threaded fitting: Reducing sleeve (female to male) - Brute / Noire - 3" - 2"1/2
Surface Finish Brute / Noire
Diamètre Ø 3" - 2"1/2
Packed weight 0,966kg
31.07 € tax excl.
Consulter
0246RN000003225 - Black malleable cast iron threaded fitting: Reducing sleeve (female to male) - Brute / Noire - 1"1/4 - 1"
Surface Finish Brute / Noire
Diamètre Ø 1"1/4 - 1"
Packed weight 0,21kg
2.11 € tax excl.
Consulter
0246RN000001508 - Black malleable cast iron threaded fitting: Reducing sleeve (female to male) - Brute / Noire - 1/2" - 1/4"
Surface Finish Brute / Noire
Diamètre Ø 1/2" - 1/4"
Packed weight 0,06405kg
1.37 € tax excl.
Consulter
0246RN000005025 - Black malleable cast iron threaded fitting: Reducing sleeve (female to male) - Brute / Noire - 2" - 1"
Surface Finish Brute / Noire
Diamètre Ø 2" - 1"
Packed weight 0,4725kg
6.57 € tax excl.
Consulter
0246RN000002015 - Black malleable cast iron threaded fitting: Reducing sleeve (female to male) - Brute / Noire - 3/4" - 1/2"
Surface Finish Brute / Noire
Diamètre Ø 3/4" - 1/2"
Packed weight 0,126kg
1.17 € tax excl.
Consulter
0246RN000006550 - Black malleable cast iron threaded fitting: Reducing sleeve (female to male) - Brute / Noire - 2" 1/2 - 2"
Surface Finish Brute / Noire
Diamètre Ø 2" 1/2 - 2"
Packed weight 0,7665kg
17.49 € tax excl.
Consulter
0246RN000003220 - Black malleable cast iron threaded fitting: Reducing sleeve (female to male) - Brute / Noire - 1"1/4 - 3/4"
Surface Finish Brute / Noire
Diamètre Ø 1"1/4 - 3/4"
Packed weight 0,218kg
3.32 € tax excl.
Consulter
0246RN000001008 - Black malleable cast iron threaded fitting: Reducing sleeve (female to male) - Brute / Noire - 3/8" - 1/4"
Surface Finish Brute / Noire
Diamètre Ø 3/8" - 1/4"
Packed weight 0,04725kg
1.04 € tax excl.
Consulter
0246RN000004032 - Black malleable cast iron threaded fitting: Reducing sleeve (female to male) - Brute / Noire - 1"1/2 - 1"1/4
Surface Finish Brute / Noire
Diamètre Ø 1"1/2 - 1"1/4
Packed weight 0,294kg
3.48 € tax excl.
Consulter
0246RN000005040 - Black malleable cast iron threaded fitting: Reducing sleeve (female to male) - Brute / Noire - 2" - 1"1/2
Surface Finish Brute / Noire
Diamètre Ø 2" - 1"1/2
Packed weight 0,504kg
5.75 € tax excl.
Consulter
0246RN000003215 - Black malleable cast iron threaded fitting: Reducing sleeve (female to male) - Brute / Noire - 1"1/4 - 1/2"
Surface Finish Brute / Noire
Diamètre Ø 1"1/4 - 1/2"
Packed weight 0,21945kg
8.13 € tax excl.
Consulter
0246RN000000806 - Black malleable cast iron threaded fitting: Reducing sleeve (female to male) - Brute / Noire - 1/4" - 1/8"
Surface Finish Brute / Noire
Diamètre Ø 1/4" - 1/8"
Packed weight 0,02835kg
2.21 € tax excl.
Consulter
0246RN000004025 - Black malleable cast iron threaded fitting: Reducing sleeve (female to male) - Brute / Noire - 1"1/2 - 1"
Surface Finish Brute / Noire
Diamètre Ø 1"1/2 - 1"
Packed weight 0,294kg
3.97 € tax excl.
Consulter
0246RN000002010 - Black malleable cast iron threaded fitting: Reducing sleeve (female to male) - Brute / Noire - 3/4" - 3/8"
Surface Finish Brute / Noire
Diamètre Ø 3/4" - 3/8"
Packed weight 0,09975kg
1.82 € tax excl.
Consulter
Référence - Désignation Surface Finish Diamètre Ø Packed weight Prix
0246RN000005032 - Black malleable cast iron threaded fitting: Reducing sleeve (female to male) - Brute / Noire - 2" - 1"1/4 Brute / Noire 2" - 1"1/4 0,462kg 5.53 € tax excl.
0246RN000002520 - Black malleable cast iron threaded fitting: Reducing sleeve (female to male) - Brute / Noire - 1" - 3/4" Brute / Noire 1" - 3/4" 0,147kg 1.82 € tax excl.
0246RN000004020 - Black malleable cast iron threaded fitting: Reducing sleeve (female to male) - Brute / Noire - 1"1/2- 3/4" Brute / Noire 1"1/2- 3/4" 0,26985kg 6.99 € tax excl.
0246RN000001510 - Black malleable cast iron threaded fitting: Reducing sleeve (female to male) - Brute / Noire - 1/2" - 3/8" Brute / Noire 1/2" - 3/8" 0,084kg 1.11 € tax excl.
0246RN000002515 - Black malleable cast iron threaded fitting: Reducing sleeve (female to male) - Brute / Noire - 1" - 1/2" Brute / Noire 1" - 1/2" 0,126kg 1.82 € tax excl.
0246RN000008065 - Black malleable cast iron threaded fitting: Reducing sleeve (female to male) - Brute / Noire - 3" - 2"1/2 Brute / Noire 3" - 2"1/2 0,966kg 31.07 € tax excl.
0246RN000003225 - Black malleable cast iron threaded fitting: Reducing sleeve (female to male) - Brute / Noire - 1"1/4 - 1" Brute / Noire 1"1/4 - 1" 0,21kg 2.11 € tax excl.
0246RN000001508 - Black malleable cast iron threaded fitting: Reducing sleeve (female to male) - Brute / Noire - 1/2" - 1/4" Brute / Noire 1/2" - 1/4" 0,06405kg 1.37 € tax excl.
0246RN000005025 - Black malleable cast iron threaded fitting: Reducing sleeve (female to male) - Brute / Noire - 2" - 1" Brute / Noire 2" - 1" 0,4725kg 6.57 € tax excl.
0246RN000002015 - Black malleable cast iron threaded fitting: Reducing sleeve (female to male) - Brute / Noire - 3/4" - 1/2" Brute / Noire 3/4" - 1/2" 0,126kg 1.17 € tax excl.
0246RN000006550 - Black malleable cast iron threaded fitting: Reducing sleeve (female to male) - Brute / Noire - 2" 1/2 - 2" Brute / Noire 2" 1/2 - 2" 0,7665kg 17.49 € tax excl.
0246RN000003220 - Black malleable cast iron threaded fitting: Reducing sleeve (female to male) - Brute / Noire - 1"1/4 - 3/4" Brute / Noire 1"1/4 - 3/4" 0,218kg 3.32 € tax excl.
0246RN000001008 - Black malleable cast iron threaded fitting: Reducing sleeve (female to male) - Brute / Noire - 3/8" - 1/4" Brute / Noire 3/8" - 1/4" 0,04725kg 1.04 € tax excl.
0246RN000004032 - Black malleable cast iron threaded fitting: Reducing sleeve (female to male) - Brute / Noire - 1"1/2 - 1"1/4 Brute / Noire 1"1/2 - 1"1/4 0,294kg 3.48 € tax excl.
0246RN000005040 - Black malleable cast iron threaded fitting: Reducing sleeve (female to male) - Brute / Noire - 2" - 1"1/2 Brute / Noire 2" - 1"1/2 0,504kg 5.75 € tax excl.
0246RN000003215 - Black malleable cast iron threaded fitting: Reducing sleeve (female to male) - Brute / Noire - 1"1/4 - 1/2" Brute / Noire 1"1/4 - 1/2" 0,21945kg 8.13 € tax excl.
0246RN000000806 - Black malleable cast iron threaded fitting: Reducing sleeve (female to male) - Brute / Noire - 1/4" - 1/8" Brute / Noire 1/4" - 1/8" 0,02835kg 2.21 € tax excl.
0246RN000004025 - Black malleable cast iron threaded fitting: Reducing sleeve (female to male) - Brute / Noire - 1"1/2 - 1" Brute / Noire 1"1/2 - 1" 0,294kg 3.97 € tax excl.
0246RN000002010 - Black malleable cast iron threaded fitting: Reducing sleeve (female to male) - Brute / Noire - 3/4" - 3/8" Brute / Noire 3/4" - 3/8" 0,09975kg 1.82 € tax excl.
